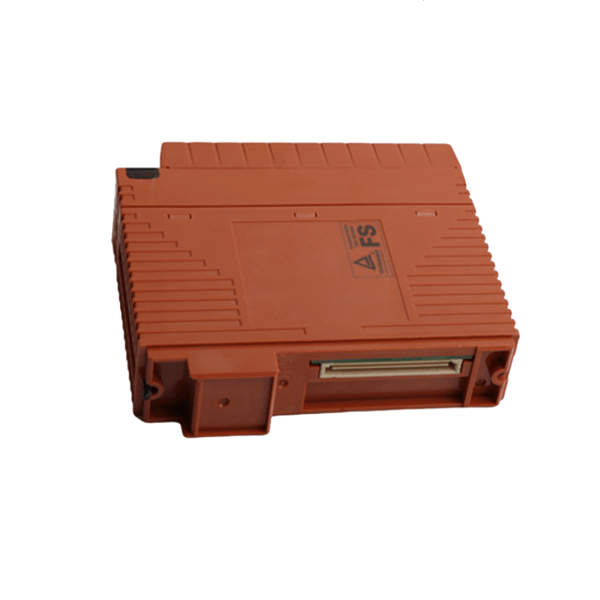

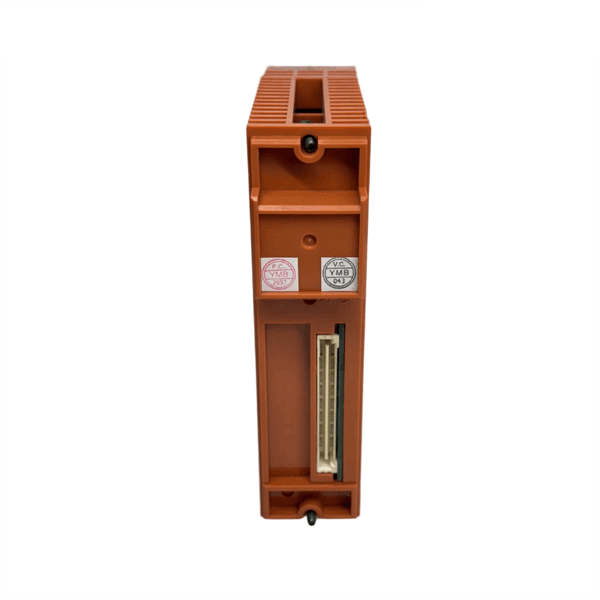

Yokogawa SDV144-S63/PRP Digital Input Modules

The Yokogawa SDV144-S63/PRP is a high-performance valve positioner designed for precise control in industrial automation systems. It plays a critical role in managing the position of control valves in processes, ensuring optimal performance, efficiency, and reliability. The product is suitable for a wide range of applications in industries such as oil and gas, petrochemical, and power generation. Built to work seamlessly with a variety of actuators, this positioner ensures the accurate positioning of valves based on the control signal.

Technical Specifications

Applications

The Yokogawa SDV144-S63/PRP is widely used in industries where precise valve control is essential for optimal process performance. Some of the key applications include:

1. Oil and Gas: Used in upstream, midstream, and downstream operations for accurate flow control.

2. Petrochemical and Chemical Industries: Ideal for controlling various chemicals and solvents in industrial processes.

3. Power Generation: Ensures reliable valve control in steam and water systems.

4. Water Treatment: Used in water treatment plants for regulating flow and pressure.

5. Pharmaceuticals: Plays a critical role in maintaining consistency and safety in chemical processes.

This product is often integrated with other process automation systems for real-time monitoring and control, making it highly effective in improving efficiency and reducing operational risks.

Advantages

1. Precision Control: Provides accurate valve position control, which is essential for maintaining process stability.

2. Durability: With a robust aluminum body and IP66 protection, it withstands harsh environmental conditions.

3. Wide Compatibility: Compatible with a wide range of actuators, ensuring flexible integration with different systems.

4. Low Power Consumption: It operates efficiently with low power consumption, reducing overall energy costs.

5. HART Communication: Facilitates remote monitoring and configuration, offering ease of use and enhanced diagnostics.

6. Wide Operating Range: Can function in extreme temperatures ranging from -40°C to +85°C, making it versatile for various industrial environments.

FAQs

1. What is the main function of the Yokogawa SDV144-S63/PRP?

   • The SDV144-S63/PRP is primarily used as a valve positioner to control the positioning of control valves in various industrial processes.

2. Can the SDV144-S63/PRP be used with any valve actuator?

   • Yes, it is compatible with a wide range of actuators, providing flexibility in integration.

3. What type of communication does the SDV144-S63/PRP support?

   • The SDV144-S63/PRP supports HART communication, allowing for remote monitoring and configuration.

4. Is the SDV144-S63/PRP suitable for outdoor use?

   • Yes, it has an IP66 rating, which means it is dust-tight and can withstand heavy water jets, making it suitable for outdoor environments.

5. What is the input and output signal range of this positioner?

   • The input signal is 4-20 mA, and the output signal ranges from 3-15 psi.

6. What are the dimensions of the SDV144-S63/PRP?

   • The dimensions are 130 x 32.8 x 107.5 mm.

7. How much does the SDV144-S63/PRP weigh?

   • It weighs 0.41 kg.

8. What is the temperature range in which this product can operate?

   • The SDV144-S63/PRP can operate in temperatures ranging from -40°C to +85°C.

9. Can the SDV144-S63/PRP be installed in hazardous environments?

   • While it has an IP66 rating, additional certifications for hazardous areas should be verified before use in such environments.

10. What industries commonly use the SDV144-S63/PRP?

• This valve positioner is commonly used in oil and gas, chemical, power generation, water treatment, and pharmaceutical industries.
