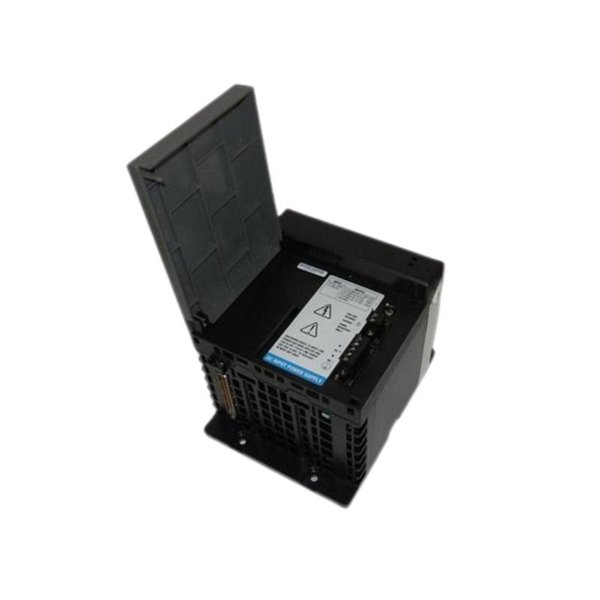

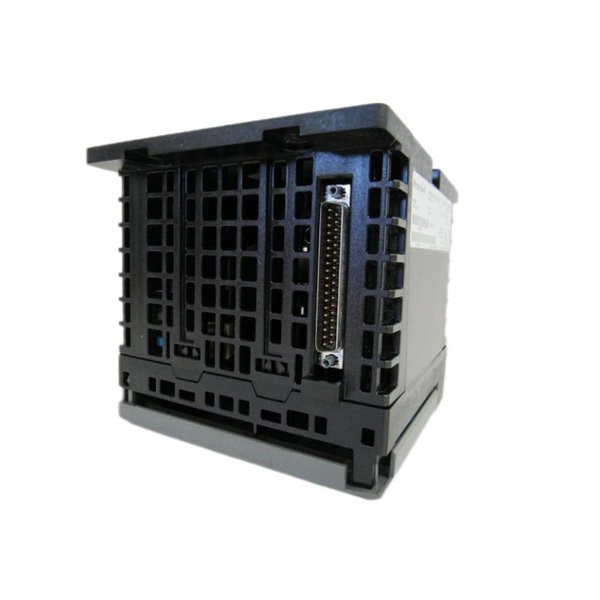

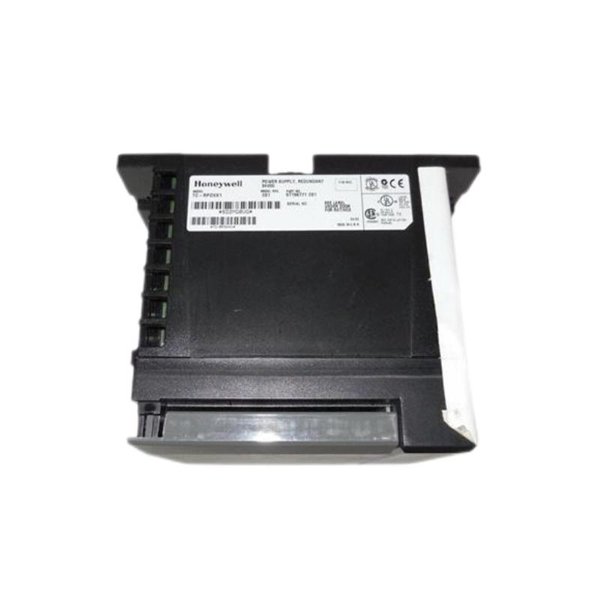

Honeywell TC-RPDXX1 Redundant Power Supply Module
Manufacturer:Honeywell
Product Number:TC-RPDXX1
Product Type:Redundant Power Supply Module
Origin:USA
Dimensions:175 x 144 x 75mm
Weight:1.47kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell TC-RPDXX1 is a high-reliability redundant DC power supply module designed for Experion Series-A chassis systems. It delivers stable power to critical control modules, with redundancy to ensure uninterrupted operation in case of a supply failure. Its compact design and robust construction make it ideal for process industries requiring high availability.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 16–32 VDC |
| Input Power | 110 W (estimated) |
| Maximum Inrush Current | 30 A |
| Frequency Range | DC |
| Output Power (max) | 75 W @ 60°C |
| Backplane Output Current | [email protected], [email protected], [email protected], 2.8A@24V |
| Dimensions (L×D×H) | 175 × 144 × 75 mm |
| Weight | 1.47 kg |
| Mounting | Upright above/below chassis |
| Environmental Conditions | 0–60°C operating, -40–85°C storage |
| Redundant Capability | Yes, with companion unit |
Applications
-
Powering Honeywell Experion Series-A chassis systems
-
Continuous process industries (chemical, petrochemical, power)
-
Redundant power configurations for critical control environments
-
Systems requiring high reliability and uptime
Advantages
-
Fully redundant design for increased reliability
-
Compact size, saving cabinet space
-
High output current capacity to support multiple modules
-
Hot-swappable in ordinary locations (not hazardous zones)
-
LED indication and error detection for easy diagnostics
FAQ
Q1: What is the input voltage range of the TC-RPDXX1?
A1: The module accepts 16–32 VDC input.
Q2: Can this module be used in redundant configurations?
A2: Yes, it is specifically designed for redundant operation when paired with another TC-RPDXX1.
Q3: What is the maximum power output of this module?
A3: It delivers up to 75 watts at 60°C.
Q4: Is it possible to hot-swap this module?
A4: Yes, but only in ordinary (non-hazardous) locations.
Q5: What is the typical operating temperature range?
A5: It operates from 0°C to 60°C.
Q6: Does it support AC input?
A6: No, the TC-RPDXX1 is a DC power supply. For AC, the TC-RPCXX1 is used.
Q7: How is it mounted in the system?
A7: It mounts upright, above or below the chassis, without occupying a chassis slot.
Q8: What is the weight of the module?
A8: The module weighs approximately 1.47 kg.
Q9: Are cables included with the module?
A9: No, a separate TC-RPSC03 power cable is required.
Q10: What are the typical application industries?
A10: Industries such as oil & gas, power generation, chemical processing, and others requiring reliable control systems.
