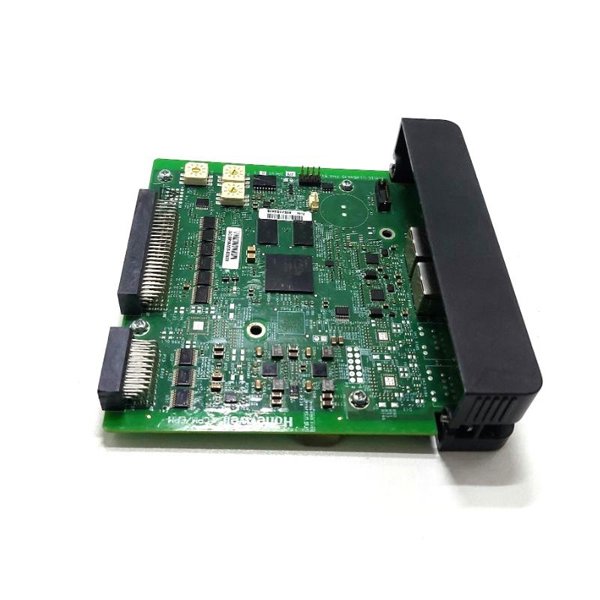

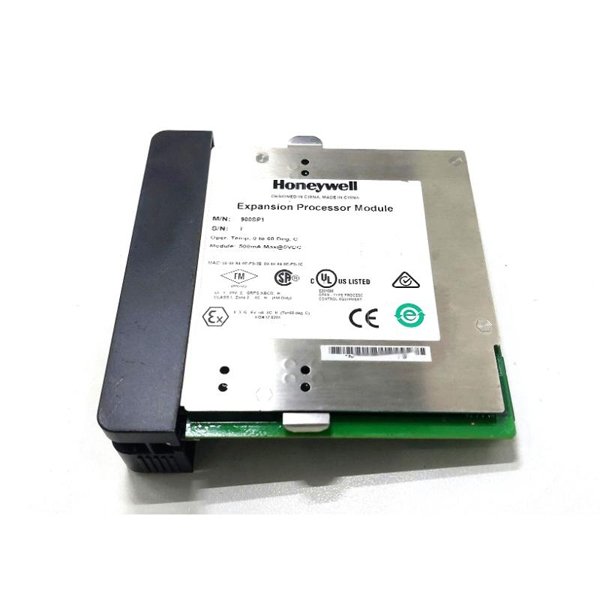

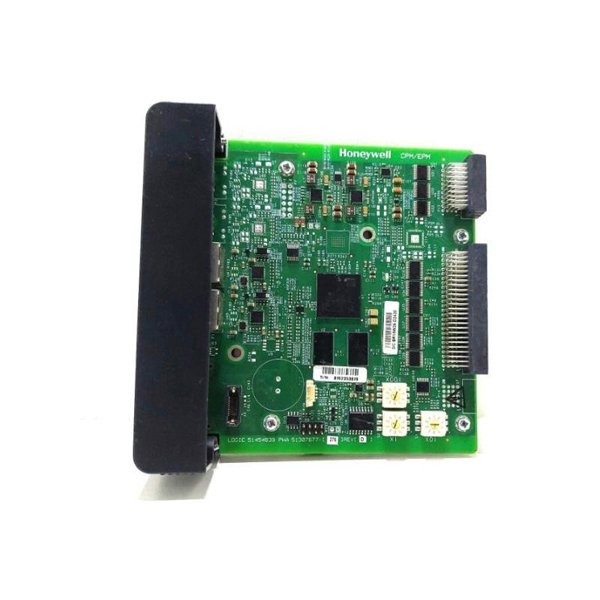

Honeywell 900SP1-0300 ControlEdge HC900 Expansion Processor Module
Manufacturer:Honeywell
Product Number:900SP1-0300
Product Type:Expansion Processor Module
Origin:USA
Dimensions:137 × 38.1 × 151.7 mm
Weight:0.32 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
Honeywell 900SP1-0300 is an Expansion Processor Module designed for ControlEdge HC900 systems, tailored for extended temperature environments. It interfaces between the expansion I/O racks and the main control processor module (CPM). This module ensures seamless data communication across racks in large or distributed automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 900SP1-0300 |
| Type | Expansion Processor Module (Extended Temp) |
| Processor | Dual Core ARM Cortex-A9 (32-bit) 667 MHz |
| Ethernet Ports | 2 (Shielded RJ45, 10/100BaseTx) |
| Communication Protocol | I/O Communication |
| LED Indicators | 2 LEDs (3-color) |
| Rotary Address Switch | Range 1 to 99 |
| Network Isolation | 1500 V RMS, 60 Hz, 1 min |
| Transient Protection | 600W peak pulse (10×1000µs waveform) |
| Dimensions (W × D × H) | 137 × 38.1 × 151.7 mm |
| Weight | 0.32 kg |
| Operating Temperature | -40°C to +70°C |
Applications
-
Expansion of I/O capacity in distributed ControlEdge HC900 systems
-
Industrial process automation requiring modular scalability
-
Systems operating in extreme environmental conditions
-
Multi-rack configurations for large control architectures
Product Advantages
-
Extended temperature tolerance for harsh environments
-
Reliable rack-to-rack communication with minimal latency
-
Simple configuration via rotary address switch
-
Dual Ethernet ports support flexible topologies (Star, Ring, DLR)
-
Status LEDs allow quick diagnostics
FAQ
Q1: What is the primary function of the 900SP1-0300?
A1: It acts as an interface for expansion I/O racks to communicate with the main control processor module.
Q2: Can it operate in extreme temperatures?
A2: Yes, it supports a range of -40°C to +70°C.
Q3: How is the rack address configured?
A3: Through a built-in rotary address switch (range 1–99).
Q4: Does it support redundant systems?
A4: Yes, it’s compatible with both redundant and non-redundant configurations.
Q5: How many Ethernet ports are available?
A5: Two shielded RJ45 10/100BaseTx ports.
Q6: What topologies are supported for network connection?
A6: Star, Ring, and Device Level Ring (DLR) topologies.
Q7: What diagnostics are provided?
A7: LED indicators for module status and communication activity.
Q8: Is transient voltage suppression included?
A8: Yes, 600W peak pulse protection is built-in.
Q9: Can it be used with fiber optics?
A9: Yes, when used with recommended MOXA converters.
Q10: What protocol does it use for communication?
A10: I/O communication specific to Honeywell ControlEdge systems.
