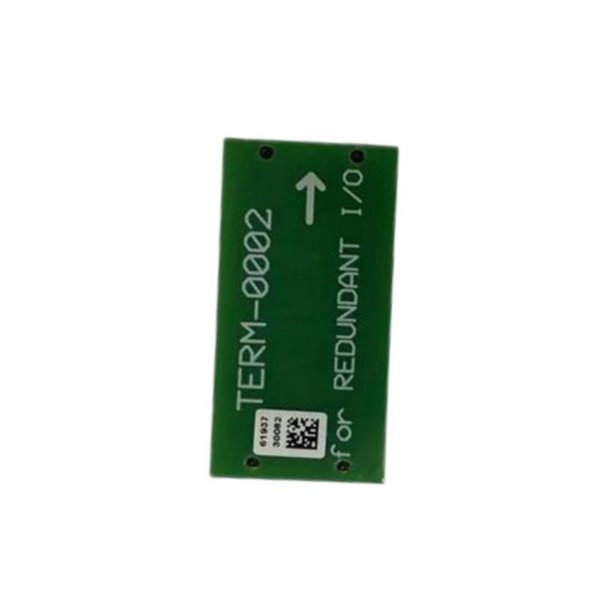

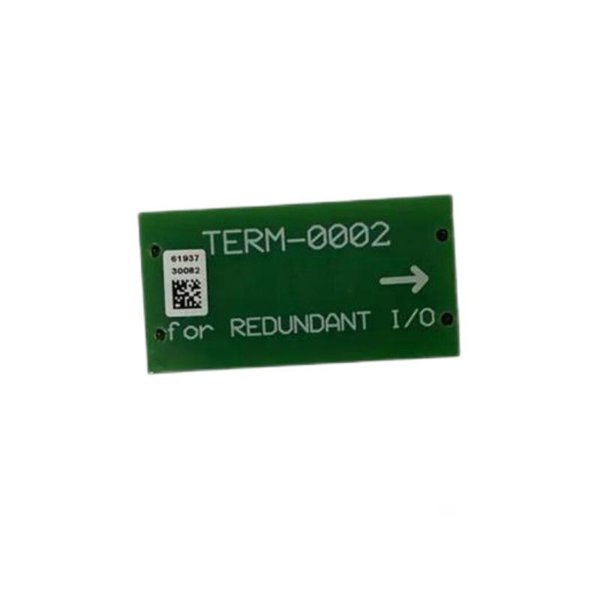

Honeywell FS-TERM-0002 Redundant I/O Bus Terminator

The Honeywell FS-TERM-0002 is a specialized redundant I/O bus terminator designed to ensure signal integrity and reliable communication within Honeywell’s Safety Manager and other industrial control systems. This compact and lightweight device terminates redundant I/O communication buses, minimizing signal reflections and electrical noise that can compromise data transmission accuracy.

With dimensions of 19.7 x 38.1 x 7.8 mm and weighing just 0.0045 kg, the FS-TERM-0002 is engineered for seamless integration into crowded control cabinets and racks without occupying significant space. Its precision design supports high-speed data transmission in safety-critical environments, helping maintain uninterrupted control system operations.

The terminator’s build quality ensures durability and consistent performance under industrial conditions, including temperature fluctuations and electromagnetic interference. It is a key component in maintaining the robustness and reliability of Honeywell’s safety and automation networks.

Product Parameters

Product Applications

The FS-TERM-0002 bus terminator is used extensively in industrial automation and safety systems where redundant I/O buses are deployed. Key applications include:

• Safety Instrumented Systems (SIS): Ensures clean bus termination to prevent signal reflection in safety-critical communication networks.

• Distributed Control Systems (DCS): Maintains data integrity between control modules and I/O devices.

• Process Automation: Used in chemical, petrochemical, power generation, and manufacturing plants for reliable bus communication.

• Redundant Control Networks: Applied in systems employing dual bus architectures to guarantee continuous operation during failure conditions.

• System Maintenance: Facilitates easy replacement and testing of bus termination to diagnose network issues.

• Panel Wiring: Compact size allows flexible use in dense cabinet layouts without interfering with other components.

Product Advantages

• Compact and Lightweight: Small size and minimal weight simplify integration into control panels.

• Ensures Signal Integrity: Reduces signal reflections and electrical noise on redundant I/O buses.

• High Reliability: Passive device with no active components, minimizing failure points.

• Wide Operating Temperature Range: Performs reliably from –20°C to +70°C.

• Plug-and-Play Installation: Easily installed or replaced without special tools.

• Compatible Design: Tailored for Honeywell Safety Manager and other compatible bus systems.

• Industrial Grade Construction: Resistant to EMI, vibration, and environmental factors.

• Cost-Effective Solution: Enhances network reliability without requiring complex hardware.

• Supports Redundancy: Integral to maintaining uninterrupted data flow in dual bus systems.

• Certifications: Meets global safety and environmental standards.

Frequently Asked Questions (FAQ)

Q1: What are the dimensions and weight of the FS-TERM-0002?

A1: It measures 19.7 x 38.1 x 7.8 mm and weighs 0.0045 kg.

Q2: What is the primary function of this device?

A2: It serves as a terminator for redundant I/O communication buses to prevent signal reflections.

Q3: Is the terminator compatible with Honeywell control systems?

A3: Yes, it is specifically designed for Honeywell Safety Manager and compatible bus systems.

Q4: What type of installation does the FS-TERM-0002 support?

A4: It supports plug-in inline installation for easy replacement and maintenance.

Q5: Does the device have any active electronic components?

A5: No, it is a passive terminator without active components.

Q6: What is the operating temperature range?

A6: The device operates reliably between –20°C and +70°C.

Q7: How does it improve bus communication?

A7: By terminating the bus, it minimizes signal reflections and electrical noise that can corrupt data.

Q8: What certifications does this product hold?

A8: It is CE, UL, and RoHS certified.

Q9: Can it be used in redundant bus architectures?

A9: Yes, it is designed specifically for redundant I/O bus systems.

Q10: Is it suitable for high EMI industrial environments?

A10: Yes, it is built to withstand electromagnetic interference common in industrial settings.
