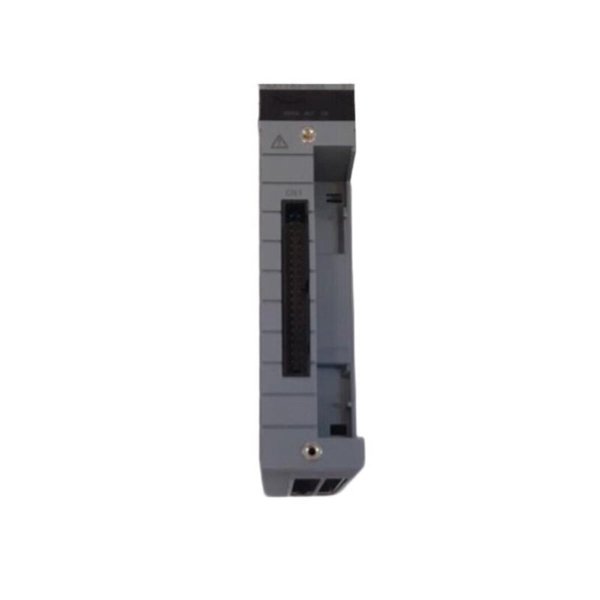

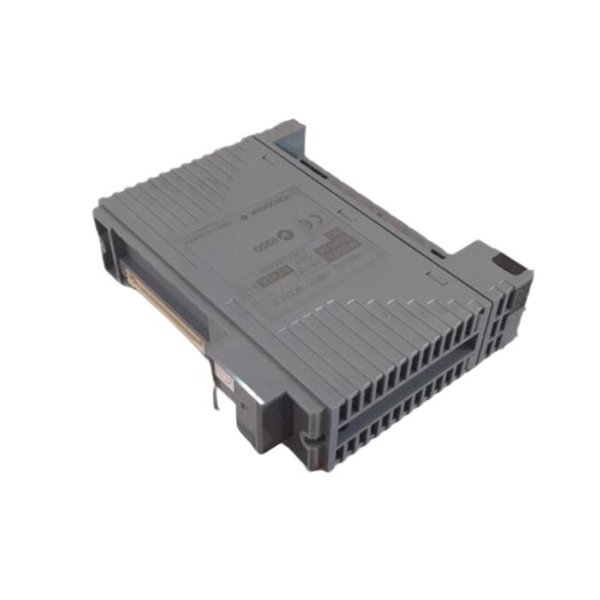

Yokogawa AAI143-S53 S1 Analog Input Modules
Manufacturer:Yokogawa
Product Number:AAI143-S53 S1
Product Type:Analog Input Modules
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.3kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI143-S53 S1 is a high-precision 16-channel analog input module designed for integration into Yokogawa’s CENTUM VP and ProSafe-RS control systems. Built to handle critical process data, this module offers superior performance in capturing analog signals with exceptional accuracy and reliability. Its isolated input channels, robust diagnostic functions, and compliance with international standards make it suitable for a wide range of demanding industrial applications.
Key Features
-
16 isolated analog input channels
-
Supports various signal types: 4–20 mA, 1–5 V, 0–10 V
-
High-resolution 16-bit A/D conversion
-
Channel-to-channel and channel-to-ground isolation
-
Enhanced diagnostics: wire break detection, input overrange
-
Hot-swappable design for online maintenance
-
Compatible with Vnet/IP and FIO-based control architectures
-
Designed for both standard and safety instrumented systems (SIS)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI143-S53 S1 |
| Module Type | Analog Input Module |
| Number of Channels | 16 isolated analog input channels |
| Supported Signal Types | 4–20 mA, 1–5 V, 0–10 V (configurable) |
| Input Resistance | Approx. 250 Ω (current), >1 MΩ (voltage) |
| A/D Conversion | 16-bit resolution |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Wire break detection, signal error, module fault |
| Hot Swap Capability | Supported |
| Power Supply | Supplied through FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting Type | Mounted on FIO base unit |
| Certifications | CE, KC, RoHS, and other global standards |
Industry Applications
-
Oil & gas production and refining
-
Power generation and transmission systems
-
Chemical and petrochemical manufacturing
-
Water treatment and utilities infrastructure
-
Pharmaceutical and food & beverage industries
Frequently Asked Questions (FAQ)
-
What does the AAI143-S53 S1 module do?
It collects analog signals from field devices and converts them into digital values for processing in control systems.
-
How many inputs are supported?
The module supports 16 isolated analog input channels.
-
What signal types can it process?
It handles 4–20 mA, 1–5 V, and 0–10 V analog signals.
-
Is it hot-swappable?
Yes, the module can be replaced while the system remains powered.
-
What kind of isolation does it provide?
Channel-to-channel and channel-to-ground isolation to prevent interference.
-
Is the module suitable for use in SIS (Safety Instrumented Systems)?
Yes, it is compatible with Yokogawa’s ProSafe-RS safety systems.
-
What resolution is the A/D conversion?
It offers a high-precision 16-bit resolution.
-
Does it include self-diagnostics?
Yes, it detects wire breaks, range errors, and hardware faults.
-
What system is it used with?
It integrates with CENTUM VP and other FIO-based Yokogawa systems.
-
Is the module certified for industrial use?
Yes, it complies with CE, KC, and RoHS standards.
