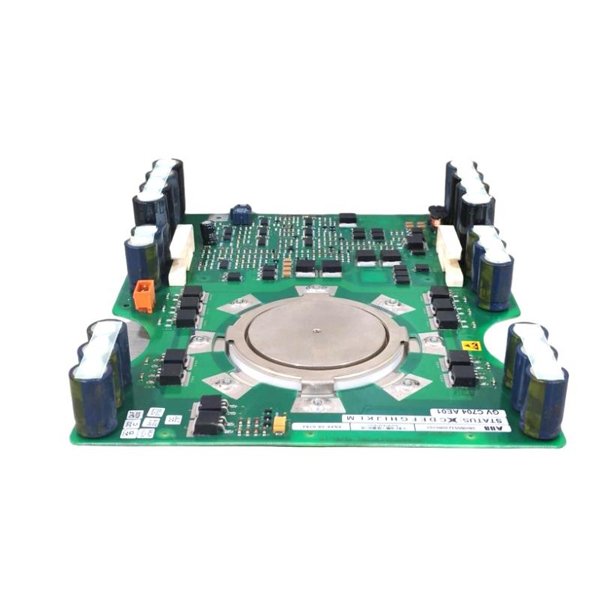

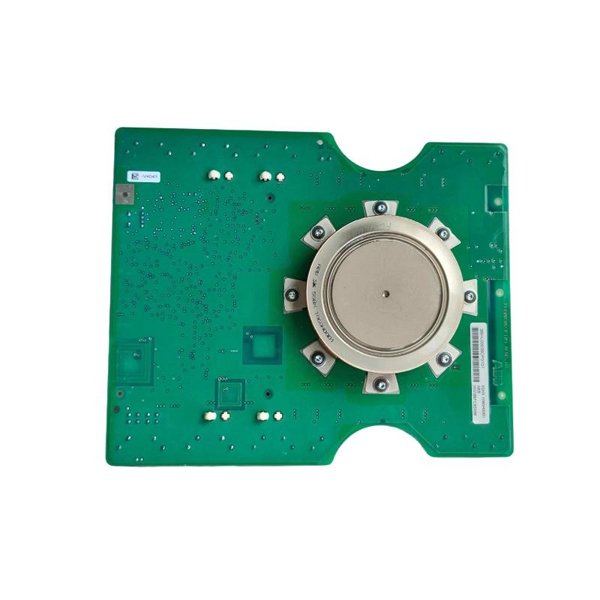

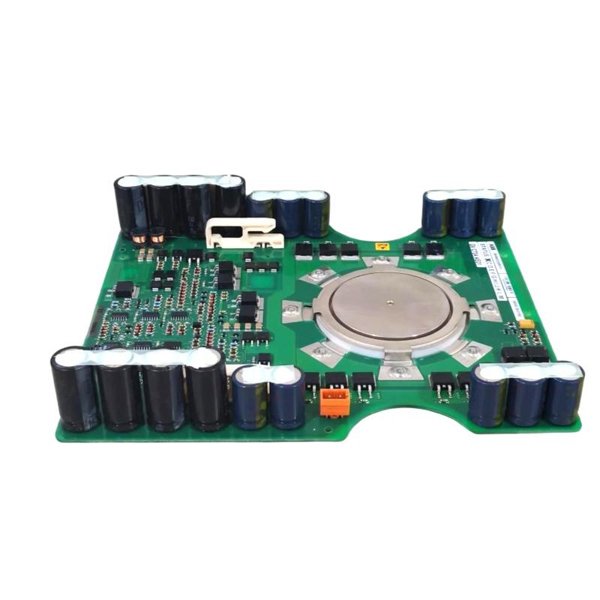

ABB 5SHX1445H0001 3BHL00391P0101 5SXE05-0152 IGCT Module
Manufacturer:ABB
Product Number:5SHX1445H0001 3BHL00391P0101 5SXE05-0152
Product Type:IGCT Module
Origin:Sweden (SE)
Dimensions:240 × 61 × 199 mm
Weight:2.11 kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHX1445H0001 / 3BHL00391P0101 / 5SXE05-0152 IGCT Module is a high-performance Integrated Gate-Commutated Thyristor (IGCT) device designed for medium voltage drives and high-power converters. It combines low conduction losses and robust switching capability, ideal for applications requiring efficient power control and reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5SHX1445H0001 |
| Part Number | 3BHL00391P0101 / 5SXE05-0152 |
| Type | IGCT Power Module |
| Voltage Rating | 4500 V |
| Current Rating | 3000 A |
| Switching Frequency | Up to 500 Hz |
| Operating Temperature | -40°C to +125°C |
| Package Type | Press-pack |
| Cooling | Direct liquid-cooled or air-cooled |
| Dimensions (W×H×D) | 240 × 61 × 199 mm |
| Weight | 2.11 kg |
Applications
-
Medium voltage motor drives
-
Static VAR compensators (SVC)
-
Traction and railway propulsion systems
-
HVDC power transmission systems
-
Wind turbine converters
-
Industrial power converters
Product Advantages
-
High Efficiency: Low conduction and switching losses reduce system energy consumption.
-
Rugged Design: Press-pack format ensures mechanical durability and thermal management.
-
High Power Density: Suitable for compact high-current applications.
-
Reliable Operation: Proven ABB quality with long operational lifetime.
-
Low Maintenance: Press-pack structure reduces risk of solder joint failure.
FAQ – ABB 5SHX1445H0001 IGCT Module
Q1: What does IGCT stand for?
A1: IGCT means Integrated Gate-Commutated Thyristor, a high-speed switching power device.
Q2: What is the voltage rating of this IGCT?
A2: It is rated at 4500 V.
Q3: What applications is this module ideal for?
A3: It’s ideal for medium voltage drives, traction, and HVDC systems.
Q4: Can this module be used in railway systems?
A4: Yes, it is suitable for traction applications including railway propulsion.
Q5: What cooling method is recommended?
A5: Direct liquid cooling is preferred, but air cooling can also be used.
Q6: How much does the module weigh?
A6: It weighs 2.11 kg.
Q7: What is the benefit of the press-pack format?
A7: It offers better thermal cycling capability and mechanical robustness.
Q8: What is the switching frequency?
A8: It supports switching frequencies up to 500 Hz.
Q9: Is this module suitable for wind turbine converters?
A9: Yes, it is commonly used in wind energy power electronics.
Q10: What distinguishes ABB’s IGCTs from others?
A10: ABB IGCTs offer exceptional reliability, optimized loss performance, and are backed by global support.
