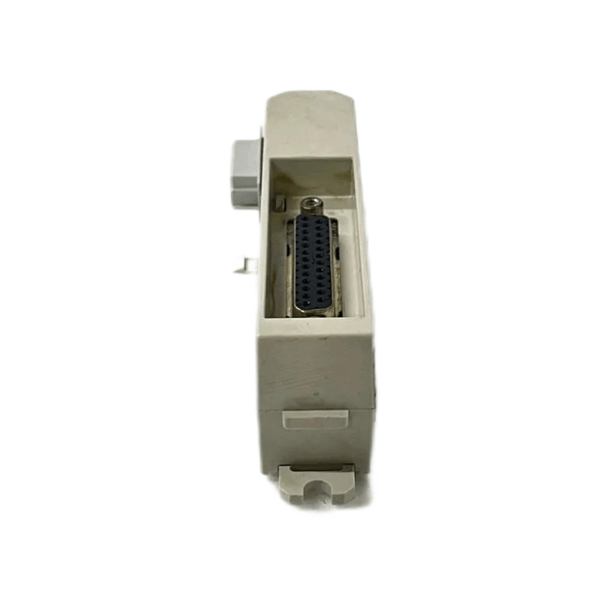

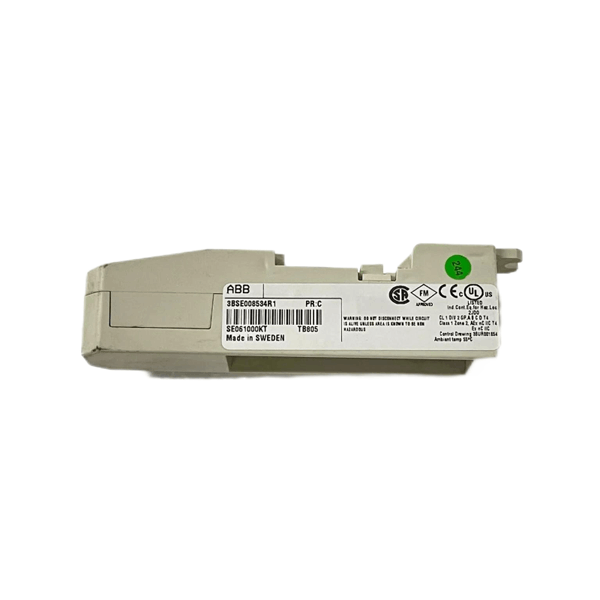

ABB TB805 3BSE008534R1 Modular bus socket
Manufacturer:ABB
Product Number:TB805 3BSE008534R1
Condition:Modular bus socket
Origin:Sweden
Dimensions:25 x 109 x 22 mm
Weight:0.046 kg
Views:58
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB TB805 3BSE008534R1 is a high-performance terminal block designed for industrial automation and control systems. It is part of ABB’s renowned range of electrical components, known for reliability, durability, and ease of installation. This terminal block facilitates secure and efficient wiring connections in various industrial applications, ensuring stable signal transmission and power distribution.
Its robust construction and compliance with international standards make it suitable for harsh environments, including manufacturing plants, energy distribution systems, and process automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | TB805 3BSE008534R1 |
| Type | Terminal Block |
| Rated Voltage | 300V AC/DC |
| Rated Current | 10A |
| Contact Material | High-conductivity copper alloy |
| Insulation Material | Flame-retardant polyamide (UL94 V0) |
| Wire Size | 0.2–4 mm² (AWG 24–12) |
| Clamping Type | Screw clamping |
| Operating Temperature | -40°C to +120°C |
| Dimensions | 25 x 109 x 22 mm |
| Weight | 0.046 kg |
| Certifications | UL, CE, RoHS compliant |
Product Applications
The ABB TB805 3BSE008534R1 is widely used in:
-
Industrial Control Panels – For secure wiring in PLCs, relays, and sensors.
-
Power Distribution Systems – Ensures reliable connections in electrical cabinets.
-
Automation Systems – Used in assembly lines, robotics, and machinery control.
-
Energy Management – Suitable for renewable energy systems like solar/wind power.
-
Transportation Infrastructure – Deployed in railway signaling and traffic control systems.
Product Advantages
-
High Reliability – Robust construction ensures long-term performance in demanding environments.
-
Easy Installation – Screw-clamping mechanism allows quick and secure wire connections.
-
Wide Compatibility – Supports a broad range of wire sizes (0.2–4 mm²).
-
Safety Compliance – Meets UL, CE, and RoHS standards for fire resistance and environmental safety.
-
Space-Saving Design – Compact dimensions enable high-density wiring in control panels.
-
Temperature Resistance – Operates reliably in extreme temperatures (-40°C to +120°C).
Frequently Asked Questions (FAQ)
-
What is the maximum voltage rating of the TB805 3BSE008534R1?
The terminal block is rated for 300V AC/DC.
-
Can this terminal block handle high-current applications?
Yes, it supports up to 10A, making it suitable for most industrial control systems.
-
Is the TB805 compatible with stranded wires?
Yes, it accommodates both solid and stranded wires (0.2–4 mm²).
-
What certifications does this product have?
It is UL, CE, and RoHS certified.
-
What is the operating temperature range?
-40°C to +120°C.
-
How many poles does this terminal block have?
The TB805 is a single-level terminal block; the number of poles depends on the configuration.
-
Is the housing flame-retardant?
Yes, it is made of UL94 V0-rated polyamide.
-
Can I use this terminal block in outdoor applications?
It is designed for indoor use unless installed in a protected enclosure.
-
What tools are required for installation?
A standard screwdriver is sufficient for wire clamping.
-
Where can I buy replacement parts for the TB805?
Authorized ABB distributors or the official ABB website.
