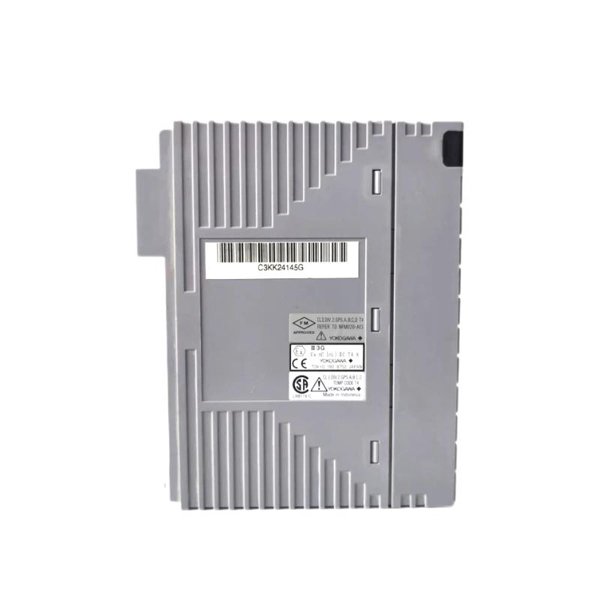

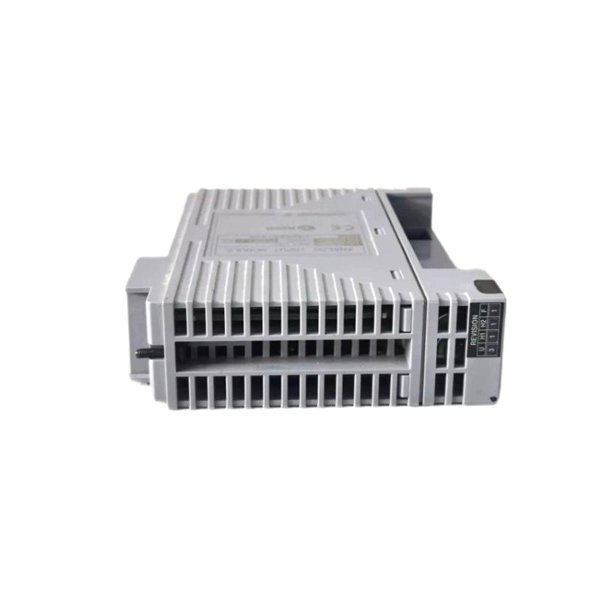

Yokogawa AAI135-H00 Analog Input Module
Manufacturer:Yokogawa
Product Number: AAI135-H00
Product Type:Analog Input Module
Origin:Japan
Dimensions:107.5 × 32.8× 130 mm
Weight:0.3 kg
Views:92
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI135-H00 Analog Input Module is a high-precision component designed for industrial automation systems. It facilitates the accurate acquisition of analog signals, converting them into digital data for processing within control systems. This module is integral to applications requiring precise monitoring and control of various industrial processes.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | AAI135-H00 |
| Number of Input Channels | 8 (isolated) |
| Input Signal Range | 4 to 20 mA |
| Allowable Input Current | Up to 25 mA |
| Input Resistance | 290 Ω (at 20 mA) to 450 Ω (at 4 mA) when powered on; ≥500 kΩ when powered off |
| Accuracy | ±16 µA |
| Withstanding Voltage | 500 V AC for 1 minute (between input and system, and between input channels) |
| Dimensions (W x H x D) | 107.5 × 32.8× 130 mm |
| Weight | 0.3 kg |
| Power Consumption | 1.2 W |
| Operating Temperature | -10 to 55 °C |
| Storage Temperature | -25 to 80 °C |
| Humidity | 10 to 90% RH (non-condensing) |
Applications
The AAI135-H00 module is utilized in various industrial settings, including:
-
Process Automation: Monitoring and controlling variables such as temperature, pressure, and flow in industries like oil and gas, chemical, and pharmaceuticals.
-
Manufacturing: Ensuring precise control of machinery and processes to maintain product quality and operational efficiency.
-
Energy Management: Collecting data from sensors in power plants and distribution systems to optimize energy production and distribution.
Advantages
-
High Accuracy: Ensures precise data acquisition, crucial for maintaining control over critical processes.
-
Isolated Channels: Each input channel is isolated, preventing interference and enhancing signal integrity.
-
Robust Design: Built to withstand industrial environments, ensuring reliability and longevity.
-
Compatibility: Easily integrates with various control systems, offering flexibility in system design.
FAQs
-
What is the primary function of the Yokogawa AAI135-H00 Analog Input Module?
- The AAI135-H00 module converts analog signals (4 to 20 mA) from field instruments into digital data for processing by control systems.
-
How many input channels does the AAI135-H00 module have?
- It features 8 isolated input channels.
-
What types of signals can the AAI135-H00 module process?
- It processes current signals ranging from 4 to 20 mA.
-
Is the AAI135-H00 module compatible with HART protocol?
- Yes, certain versions like the AAI135-H50 support HART protocol for digital communication.
-
Can the AAI135-H00 module be used in safety-critical applications?
- Yes, its high accuracy and reliability make it suitable for safety-critical applications.
-
What is the power consumption of the AAI135-H00 module?
- It consumes approximately 1.2 W.
-
How does the module ensure signal integrity?
- Each channel is isolated to prevent interference between signals.
-
What are the dimensions of the AAI135-H00 module?
- The module measures 107.5 × 32.8× 130 mm.
-
What is the weight of the AAI135-H00 module?
- The module weighs 0.3 kg.
-
In which industries is the AAI135-H00 module commonly used?
- It is widely used in industries such as oil and gas, chemical, pharmaceuticals, manufacturing, and energy management.
