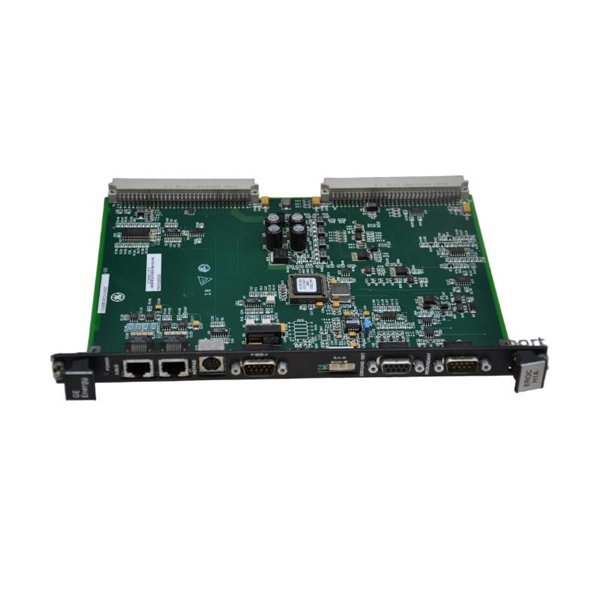

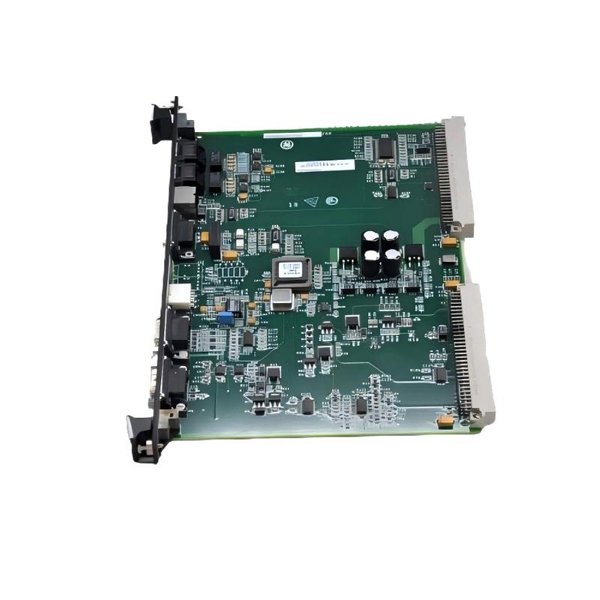

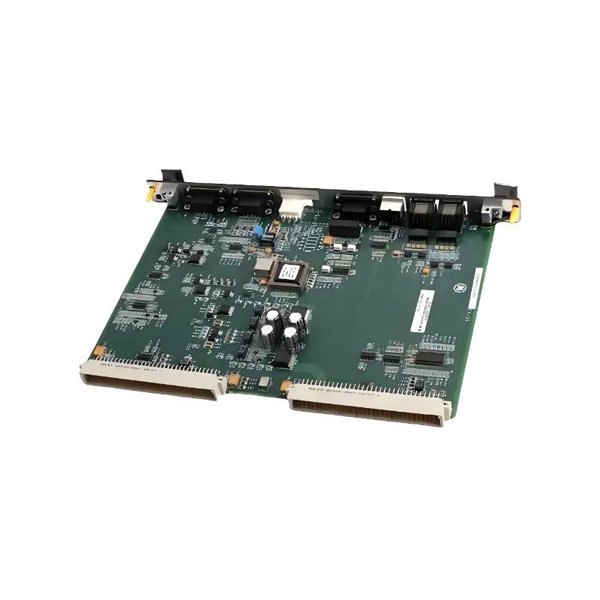

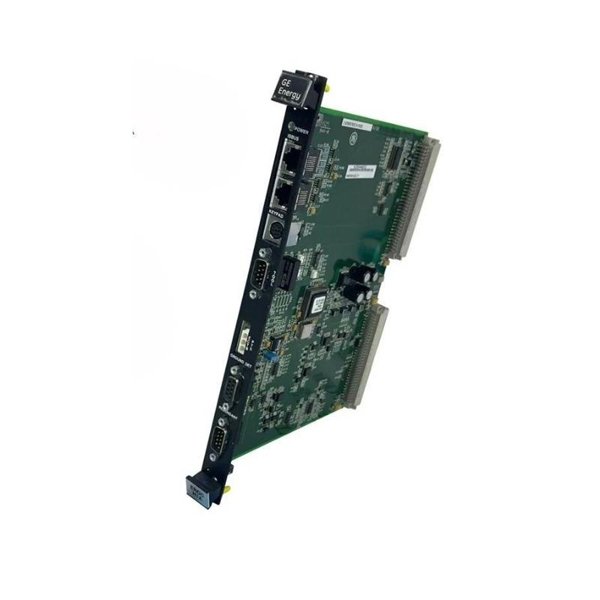

General Electric IS200EROCH1A Excitation Regulator Option Card

The GE IS200EROCH1A is an excitation regulator option card designed to work as part of GE’s industrial automation and control systems, specifically for controlling the excitation system in generators. This component is a critical element in ensuring stable operation of electric generators by regulating the voltage applied to the generator field winding. By precisely managing the excitation current, the IS200EROCH1A helps maintain stable output voltage, improve efficiency, and ensure reliable power generation.

The IS200EROCH1A is a flexible solution, integrated into the EX2000 Excitation System, and serves as an essential part of the excitation control system, helping with both normal operation and protective control functions. Its role in generator excitation and voltage regulation is crucial in preventing faults like overvoltage or under-voltage, which can lead to inefficient operation or even equipment damage. The card is designed to fit into existing control systems seamlessly, offering superior performance, reliability, and ease of integration.

The GE IS200EROCH1A option card comes with a compact size of 159 x 178 mm and a weight of 0.907 kg, making it easy to integrate into control cabinets with limited space, without compromising performance.

Product Parameters

Here are the detailed specifications for the GE IS200EROCH1A excitation regulator option card:

Product Application

The GE IS200EROCH1A excitation regulator option card is mainly used in generator excitation systems, especially in systems like the GE EX2000 Excitation System. Here are its primary applications:

1. Power Generation: The card plays a pivotal role in maintaining the output voltage of generators by regulating the excitation current supplied to the generator’s field winding. This is essential for ensuring consistent power generation and avoiding damage to the generator.

2. Voltage Regulation: The card ensures that the output voltage from the generator remains within acceptable limits. It helps prevent over-voltage or under-voltage conditions that could lead to system instability or equipment damage.

3. Industrial Applications: The IS200EROCH1A is commonly used in power plants, substations, and other industrial facilities that require reliable power generation systems. Its ability to keep the excitation current stable ensures uninterrupted operations.

4. Backup Power Systems: In facilities relying on backup power systems, this excitation card ensures that the generator maintains the required voltage, providing reliable power during grid outages or emergencies.

5. Marine Applications: The card is also used in marine power systems, where stable voltage is crucial for the safe operation of onboard electrical systems and equipment.

6. Renewable Energy: In renewable energy systems like wind and hydroelectric power plants, the IS200EROCH1A helps regulate the generator’s output, contributing to the smooth integration of renewable energy into the grid.

Product Advantages

1. Precise Voltage Regulation: The IS200EROCH1A ensures precise regulation of the excitation voltage, contributing to more stable and efficient power generation.

2. Compact and Lightweight: With its 159 x 178 mm dimensions and 0.907 kg weight, the card is compact and easy to integrate into control cabinets, even in space-constrained setups.

3. Durability: Designed to withstand harsh industrial conditions, it operates reliably within a temperature range of -40°C to 85°C, making it suitable for both indoor and outdoor installations.

4. Low Power Consumption: The card operates with minimal power consumption (30W typical), which helps reduce overall system energy usage while maintaining high functionality.

5. Seamless Integration: As part of the GE EX2000 system, the IS200EROCH1A option card is designed to integrate smoothly into existing generator excitation systems, reducing installation time and complexity.

6. Wide Voltage Range: The card supports an input voltage range of 120-240 V AC, making it compatible with various power systems around the world.

7. Protection from Over-Voltage and Under-Voltage: The IS200EROCH1A helps prevent over-voltage and under-voltage issues, protecting the generator and other critical equipment from potential damage.

8. Improved Efficiency: By ensuring stable excitation, the card helps improve the overall efficiency of the generator, which can lead to cost savings and better performance.

9. Cost-Effective Solution: Offering high performance at a competitive price, the IS200EROCH1A is a cost-effective solution for improving generator control in industrial and power plant settings.

10. Easy Maintenance: Designed for ease of use, the card is easy to maintain, troubleshoot, and replace, minimizing downtime in critical power generation systems.

FAQ

1. Q: What is the size of the GE IS200EROCH1A excitation regulator option card?

   A: The card measures 159 x 178 mm.

2. Q: How much does the GE IS200EROCH1A card weigh?

   A: The card weighs 0.907 kg.

3. Q: What is the input voltage range for the IS200EROCH1A?

   A: The card supports an input voltage range of 120-240 V AC.

4. Q: What is the output voltage of the GE IS200EROCH1A?

   A: The output voltage is 0-10 V DC and is adjustable.

5. Q: What is the power consumption of the IS200EROCH1A card?

   A: The card consumes approximately 30W of power.

6. Q: In which temperature range does the IS200EROCH1A operate?

   A: The card operates within a temperature range of -40°C to 85°C.

7. Q: Can the IS200EROCH1A be used in backup power systems?

   A: Yes, it is ideal for use in backup power systems to ensure stable excitation for generators.

8. Q: What type of control does the IS200EROCH1A provide?

   A: The card provides voltage regulation to ensure stable generator output.

9. Q: Is the IS200EROCH1A compatible with other GE systems?

   A: Yes, it is compatible with the GE EX2000 Excitation System, making it an essential part of GE’s generator control setup.

10. Q: How is the IS200EROCH1A mounted in a control system?

    A: The card is designed for plug-in installation and is PCB mounted within control cabinets.
