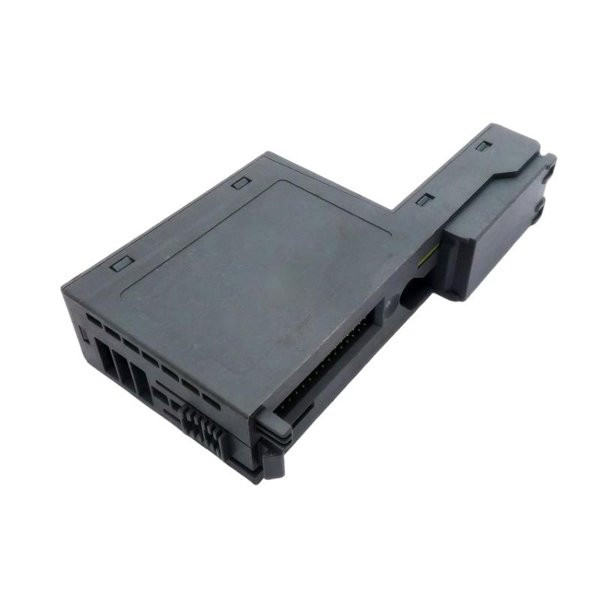

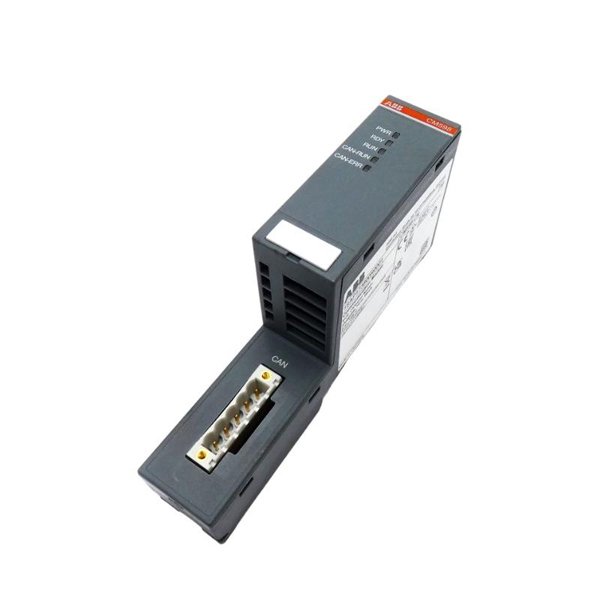

ABB CM598-CN 1SAP173800R0001 Communication Module

The ABB CM598-CN 1SAP173800R0001 is a dedicated communication module designed for integration within ABB’s AC500 PLC series. This module specializes in providing reliable and efficient communication capabilities for industrial automation systems requiring ControllerNet (CN) connectivity.

ControllerNet is a high-speed, deterministic network protocol commonly used in manufacturing environments to link controllers and distributed I/O devices. The CM598-CN module serves as the interface between the AC500 PLC and ControllerNet networks, facilitating data exchange with high precision and minimal latency.

Engineered to meet industrial standards, the CM598-CN ensures consistent performance even in challenging operational conditions. Its robust design and comprehensive communication features make it an essential component for applications demanding secure, real-time network communication.

Product Specifications

Product Applications

• Real-time communication in industrial automation systems using ControllerNet networks.

• Integration of distributed I/O modules and field devices with ABB AC500 PLCs.

• Control and monitoring of manufacturing processes in automotive, packaging, and material handling industries.

• Systems requiring deterministic and high-speed data exchange for precise control tasks.

• Automation systems in sectors such as food & beverage, pharmaceuticals, and heavy machinery.

• Retrofitting or upgrading existing ControllerNet-based control architectures to ABB AC500 platforms.

Product Advantages

• Dedicated ControllerNet Support: Designed specifically for reliable ControllerNet communication, ensuring compatibility and performance.

• High-Speed Data Exchange: Capable of data transfer rates up to 5 Mbps, allowing fast and deterministic control communications.

• Robust Design: Suitable for harsh industrial environments with wide temperature and humidity tolerances.

• Seamless Integration: Plug-and-play compatibility with ABB AC500 series PLCs for easy system integration.

• Compact Form Factor: Slim design supports efficient use of cabinet space with standard DIN rail mounting.

• Comprehensive Diagnostics: LED indicators and software-based diagnostics facilitate quick troubleshooting and maintenance.

• Energy Efficient: Low power consumption contributes to reduced operational costs.

• Wide Certification: Meets essential international standards ensuring safe and compliant operation.

• Scalable Networking: Enables expansion of distributed automation systems with multiple ControllerNet devices.

• Reliable Performance: Maintains communication integrity under electromagnetic interference and other industrial stresses.
