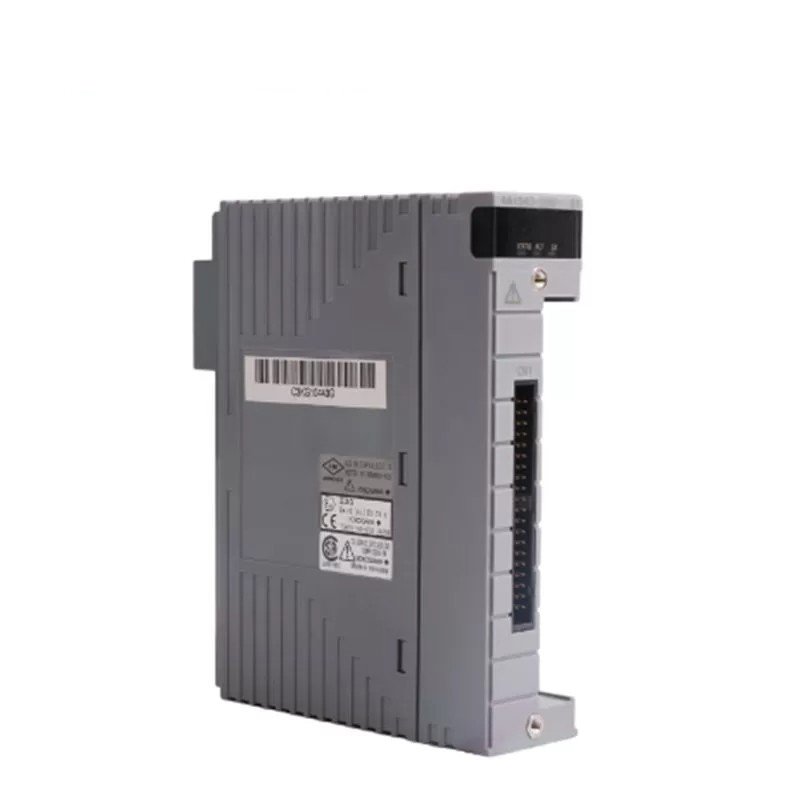

The Yokogawa AAI543-S00 is a high-performance, 16-channel analog output module designed for industrial automation applications. It provides a reliable and accurate way to convert digital signals into proportional analog current outputs.

Key Features

• 16-Channel Output: Supports simultaneous control of up to 16 independent devices.
• 4-20mA Current Loop: Industry-standard current loop for easy integration with existing systems.
• Isolated Outputs: Ensures electrical isolation between channels and minimizes ground loop noise.
• Standard and Fast Switching: Selectable response time for optimal performance in various applications.
• Dual Redundancy Option: Enables configuration with two modules for increased system reliability.

Technical Specifications

• Number of Channels: 16
• Output Current Range: 4-20mA
• Output Resolution: 12-bit
• Update Time: Standard (2.5ms) or Fast (0.5ms)
• Isolation Voltage: 1500 VDC
• Operating Temperature: -10 to +55°C
