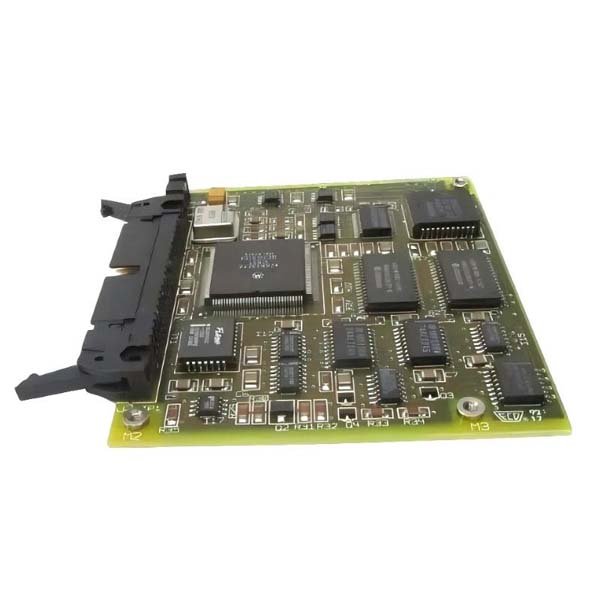

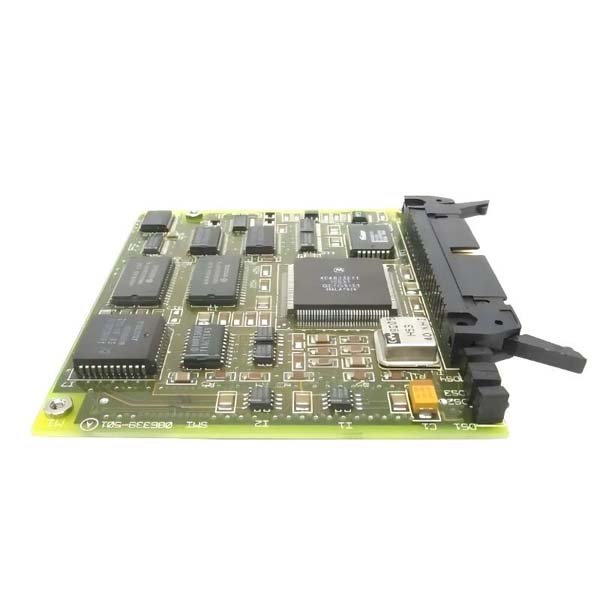

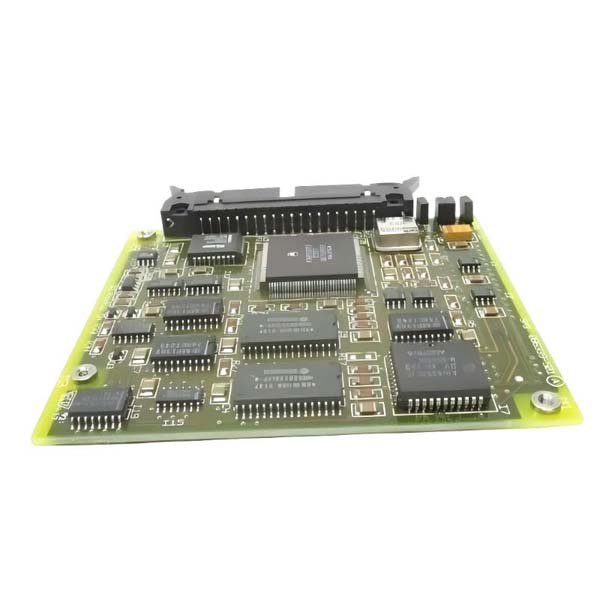

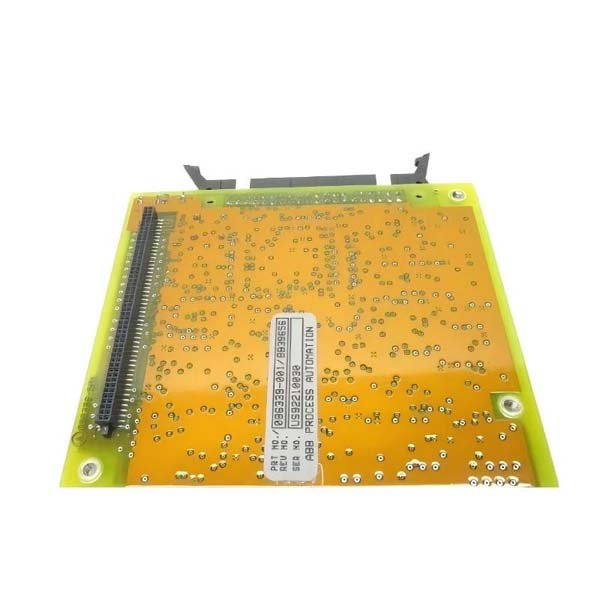

ABB 086339-001 Compact Signal Interface Module

The 086339-001 is a compact interface module engineered to keep control-room signals clean and predictable in heavy-duty automation installations. It’s built for steady 24/7 operation and focused on reliability: robust circuit layout, EMI-resistant board design, and a form factor that fits neatly into ABB-standard rack cavities. For plants that measure uptime in years, not hours, this unit acts as a quietly dependable building block.

Technical specifications

Applications

Use the 086339-001 wherever clear, low-noise signal distribution matters: DCS cabinets, PLC racks, retrofit modernization, OEM control houses, and any control loop that cannot tolerate intermittent I/O or dirty signals. It’s especially useful in power generation, chemical processing, and high-throughput manufacturing where small signal faults cascade into large process disruptions.

Advantages at a glance

• Tight EMI resilience reduces false trips and spurious alarms.

• Compact footprint makes it easy to add capacity without rearranging cabinets.

• Low-maintenance hardware and predictable thermal behavior minimize lifecycle servicing.

• Straightforward ABB-form fit and backward-compatible electrical interfaces simplify retrofits.

• Helps maintain data integrity across controller layers so automation logic remains deterministic.

FAQs

1. What does the 086339-001 actually do?

   It routes and conditions control signals between controllers and field I/O, protecting communication from electrical noise.

2. Is it suitable for continuous 24/7 operations?

   Yes — it’s designed for continuous industrial duty inside standard control cabinets.

3. Will it fit my existing ABB rack?

   If your cabinet follows ABB mechanical standards, it installs into the same rail/enclosure slots.

4. Does installation require firmware or special configuration?

   No firmware is required; standard ABB configuration and system initialization suffice.

5. How can I spot a failing module in the field?

   Watch for intermittent signal loss, erratic I/O values, or recurring communication alarms in the controller diagnostics.

6. Can it be used for retrofit projects?

   Yes — it’s frequently chosen for modernization because of its backward-friendly mechanical and electrical layout.

7. What environmental stresses can it handle?

   Typical control-cabinet ambients and moderate vibration; avoid contaminating atmospheres unless the cabinet is sealed/filtered.

8. Is additional shielding or grounding needed?

   Good cabinet grounding and cable shielding practices are recommended to maximize the module’s EMI performance.

9. How long is the expected service life?

   With proper cabinet cooling and normal loading, many of these modules operate reliably for multiple years—often 8–12+ years.

10. Is the module repairable on-site?

    Field-level component repair is not recommended; change-out with a replacement module is the safer, faster course.
