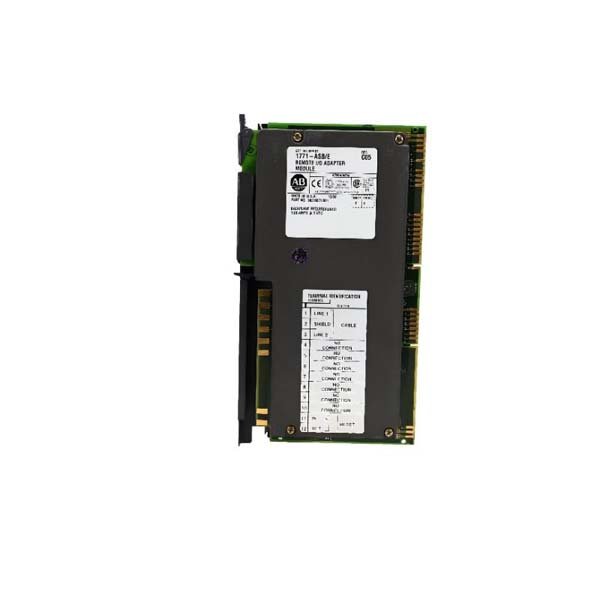

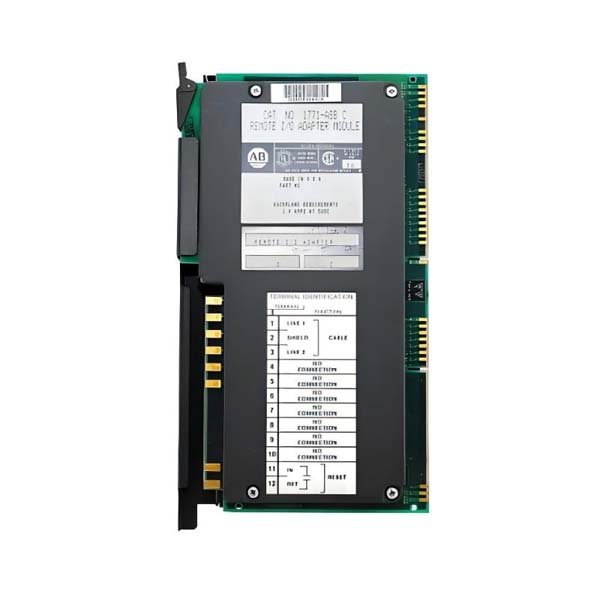

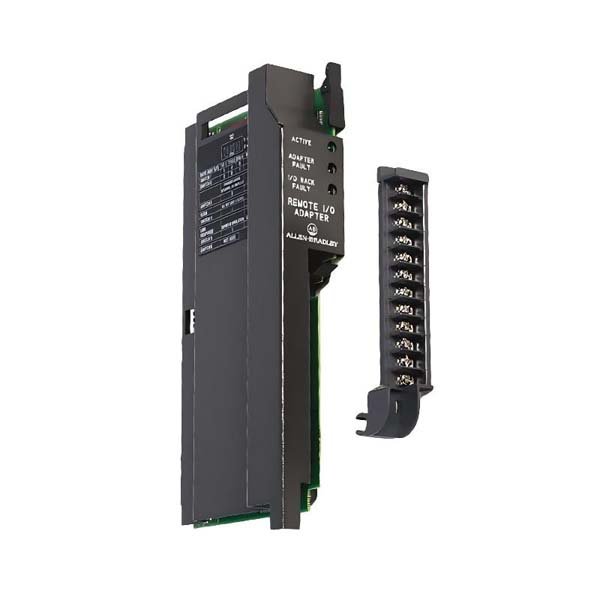

Allen-Bradley 1771-ASB Remote I/O Adapter Module

The Allen-Bradley 1771-ASB Remote I/O Adapter Module is an essential component for distributed control architectures, enabling communication between remote I/O chassis and PLC systems through the Allen-Bradley Remote I/O (RIO) network. Designed with reliability and flexibility in mind, this module allows 1771 I/O racks to be seamlessly integrated into larger automation systems without sacrificing performance.

Its sturdy design and proven reliability make it a cornerstone for legacy and modernized systems that require consistent data exchange between controllers and field devices.

Technical Specifications

System Integration and Use Cases

The 1771-ASB serves as the communication link between a PLC controller (such as PLC-5 or SLC 500) and a remote 1771 I/O rack. It is widely used in manufacturing plants, refineries, and process automation systems where distributed I/O architecture enhances scalability and system manageability.

The adapter module reduces wiring complexity, minimizes installation time, and allows for efficient system expansion. It supports both discrete and analog I/O modules across the same chassis, offering flexibility in mixed-signal control applications.

Distinctive Advantages

• Seamless Remote Connectivity: Enables reliable communication between main and remote control racks through RIO.

• Flexible Configuration: Compatible with different chassis sizes (8, 12, 16 slots).

• Diagnostic Feedback: Built-in LED indicators simplify troubleshooting during commissioning.

• Durable Construction: Designed to operate in harsh industrial conditions without degradation.

• Legacy Support: Fully compatible with PLC-5 and SLC 500 platforms, making it ideal for system upgrades.

FAQs

1. What is the primary function of the 1771-ASB module?

   It serves as an adapter between a remote 1771 I/O chassis and the controller over the RIO network.

2. Can multiple 1771-ASB modules be used in one system?

   Yes, multiple adapters can be configured for different remote racks within the same RIO network.

3. Is it compatible with modern ControlLogix systems?

   It can be integrated using communication gateways or bridging modules like 1756-DHRIO.

4. What are the selectable baud rates?

   The module supports 57.6, 115.2, and 230.4 Kbps.

5. How is addressing configured on the 1771-ASB?

   Through DIP switches on the module’s front panel to assign rack and group addresses.

6. Does the module support redundancy?

   While not natively redundant, dual RIO channel configurations can be implemented using external systems.

7. How is communication verified?

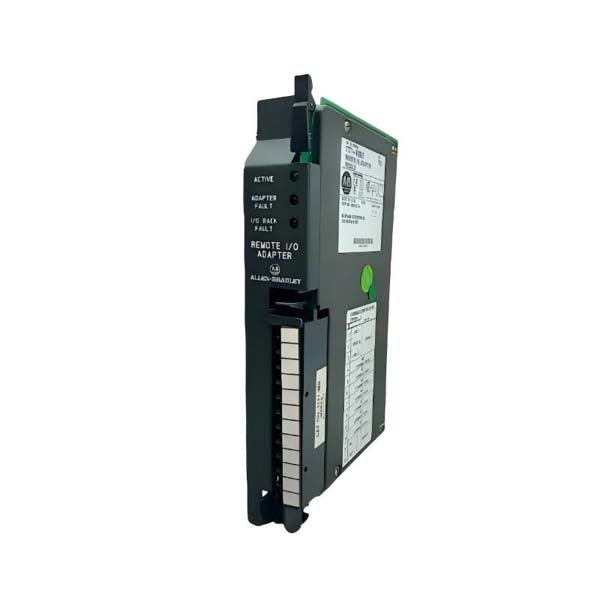

   LED indicators for ACTIVE and FAULT show real-time module and network status.

8. Can the 1771-ASB be hot-swapped?

   No, power must be removed before installation or replacement.

9. What cable type is recommended for RIO communication?

   Shielded twisted-pair cable (Belden 9463 or equivalent) is recommended.

10. Is there a limit to chassis distance from the controller?

    Yes, the maximum distance depends on baud rate—up to 3 km (1.8 miles) at 57.6 Kbps.
