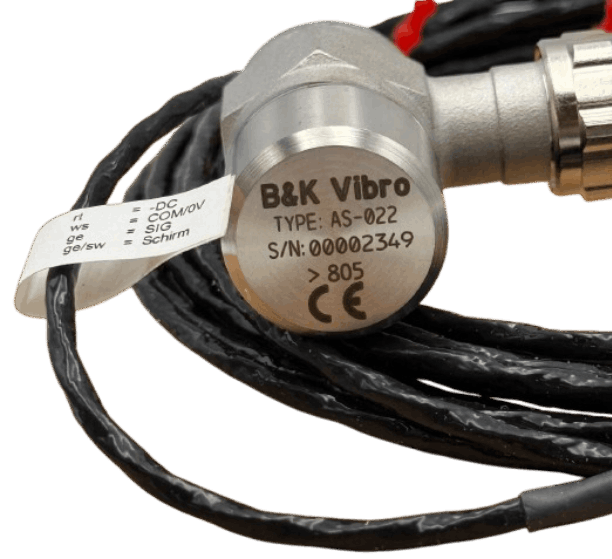

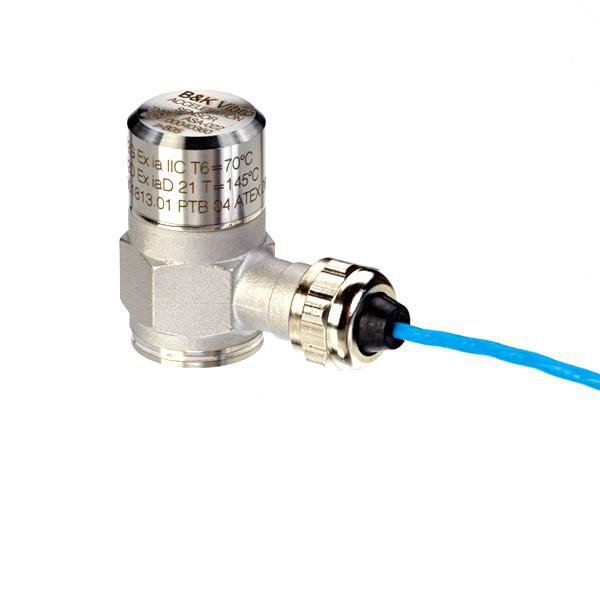

B&K Vibro AS-022 Acceleration Sensor
Item Number: AS-022
Brand:B&K Vibro
Lead Time: In stock
Description:Acceleration Sensor
Payment: T/T
Product Description
B&K AS-022 is a vibration accelerometer based on the piezoelectric compression principle, designed for industrial vibration measurement. The piezoelectric ceramic disk (Piezoceramic Disk) and the mass block (Mass) form a spring-damper system to convert mechanical vibration into electrical signals, and output high signal-to-noise ratio signals through the built-in charge amplifier. It is suitable for high-frequency vibration monitoring and requires rigid installation to ensure measurement accuracy.
Function & Features
Piezoelectric technology and signal processing
- When vibrating, the mass block compresses the ceramic disk to generate charge, and the output signal is proportional to the acceleration.
- Built-in charge amplifier directly outputs high-level signals (such as ±5V), suitable for most data acquisition systems.
Rigid installation requirements

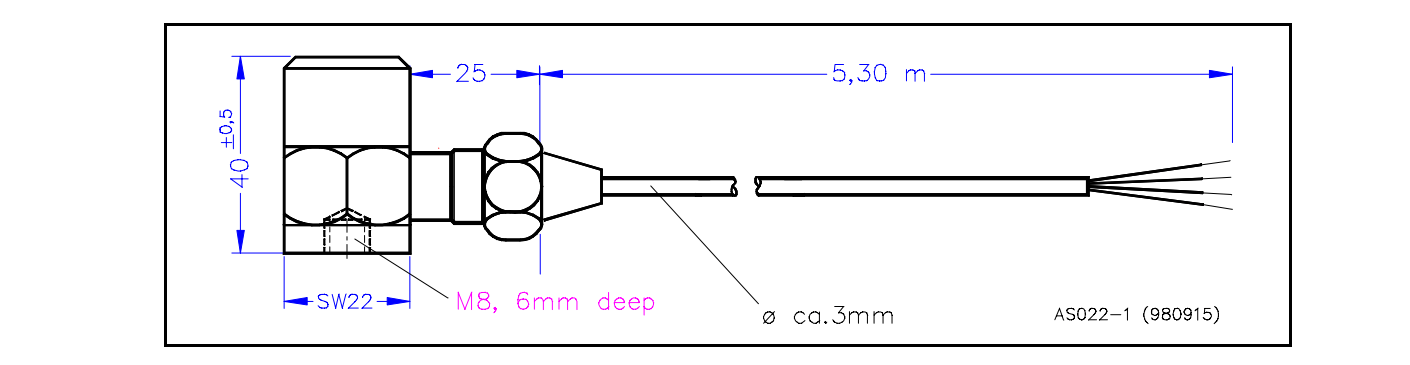

- Standard M8×14 or 1/4"-28 UNF threaded column, which needs to be fixed with threaded holes (depth ≥12 mm).
- The installation surface must be flat and smooth to avoid contact resonance.
Installation suggestions
- Apply silicone grease to reduce contact surface resonance.
- Use thread glue (such as LOCTITE) to prevent loosening.
- The maximum tightening torque must follow the specification (to prevent overloading of the ceramic disk)
Specifications
|
Parameter |
Details |
|
Linearity error |
≤ 0.1 % |
|
Transverse sensitivity (80 Hz) |
≤ 7 % |
|
Frequency range |
4 … 10 000 Hz (± 0.5 dB) 1,5 … 15 000 Hz (± 3 dB) |
|
Resonance frequency |
35 kHz ± 3 kHz |
|
Noise |
0,1Hz - 100 kHz: ≤ 0.6 mVss 0,1Hz - 1 kHz: ≤ 0.2 mVss |
|
Voltage supply U<sub>B</sub> |
-24 V (-18 V … -30 V) |
|
Output impedance |
≤ 5 Ω |
FAQs
Q: What is the brand?
A:B&K Vibro
Q: What is the type?
A:Acceleration Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
