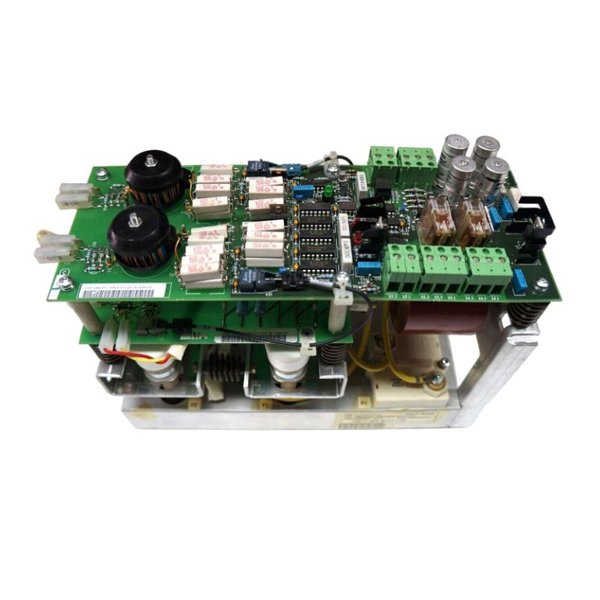

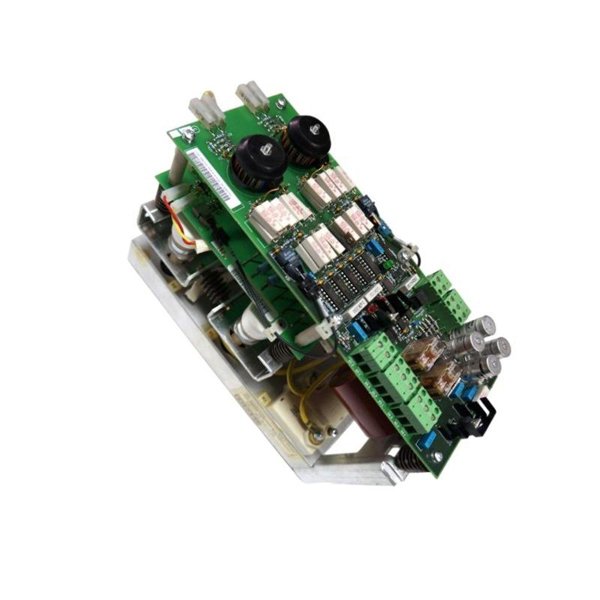

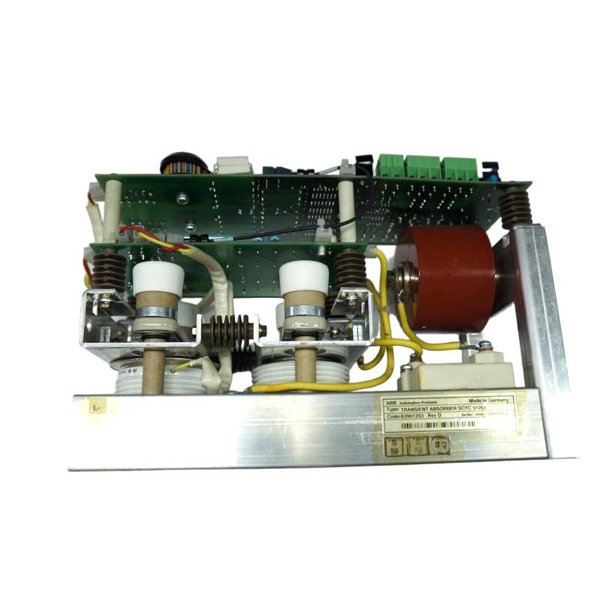

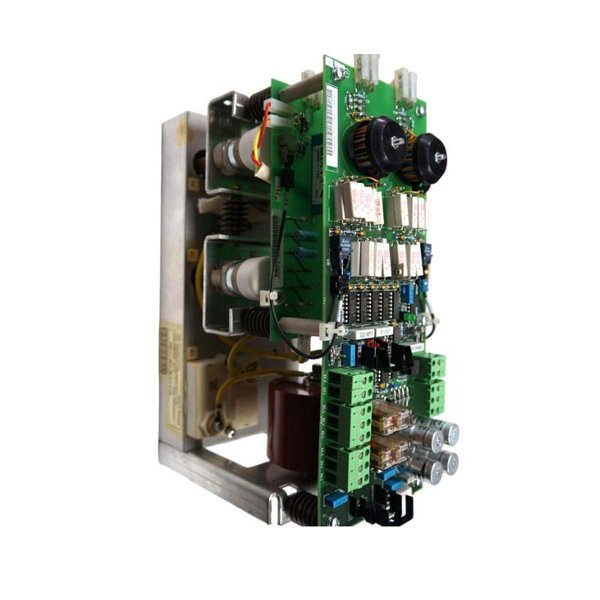

ABB SCYC 51204 63912476 Transient Suppressor

The ABB SCYC 51204 63912476 is a high-performance transient suppressor designed to protect electrical and electronic systems from voltage spikes, surges, and transients that can cause equipment damage. This suppressor is part of ABB’s advanced protection line, offering reliable, cost-effective solutions for maintaining the integrity and performance of critical industrial and commercial systems.

Transient voltage spikes, often caused by lightning strikes, switching of electrical circuits, or power grid disturbances, can severely damage sensitive equipment. The SCYC 51204 63912476 transient suppressor effectively mitigates these risks by clamping voltage surges and ensuring smooth, stable power supply. Whether used in power distribution systems, automation machinery, or renewable energy solutions, it helps to prevent downtime and reduce maintenance costs.

Product Specifications

Below are the detailed specifications for the ABB SCYC 51204 63912476 Transient Suppressor:

Product Applications

The ABB SCYC 51204 63912476 transient suppressor is versatile and can be used in various industrial, commercial, and residential applications to protect sensitive electrical equipment from power surges and transient voltages:

1. Power Distribution Systems: Protects the electrical infrastructure by absorbing surges caused by external factors, such as lightning or grid disturbances.

2. Industrial Automation Systems: Ensures that sensitive control systems, PLCs, and sensors are shielded from voltage spikes that could cause malfunction or failure.

3. Renewable Energy Solutions: In solar and wind energy systems, it safeguards inverters and controllers from transient spikes and improves overall system reliability.

4. Telecommunications Equipment: Protects telecom equipment from power surges that may be caused by lightning strikes or network switching.

5. HVAC Systems: Helps to protect HVAC control systems from transient voltages, reducing the risk of equipment breakdowns and improving system longevity.

6. Home and Commercial Electronics: The suppressor can be used in household or commercial appliances that are sensitive to voltage fluctuations, preventing damage to electronic components.

Product Advantages

1. High Surge Protection: With a peak pulse current rating of 20 kA, the suppressor provides superior protection against high-voltage transients and surges.

2. Fast Response Time: The product offers an extremely fast response time of less than 1 nanosecond, ensuring immediate clamping of voltage spikes.

3. Wide Temperature Range: Operating effectively in temperatures ranging from -40°C to +85°C, it can be used in both harsh industrial and extreme environmental conditions.

4. High Energy Absorption: With an energy absorption capacity of 200 J, the suppressor can handle large energy surges without degradation in performance.

5. Durable and Long-Lasting: The flame retardant polycarbonate housing ensures that the unit is robust, reliable, and capable of withstanding mechanical stresses in industrial environments.

6. Easy Installation: Wall-mountable, the suppressor is easy to install and integrates seamlessly into existing systems for immediate surge protection.

7. IP20 Protection Class: The suppressor’s IP20 rating ensures it is protected against solid objects larger than 12 mm, providing additional safety in industrial applications.

8. Cost-Effective Protection: By preventing damage to sensitive equipment, the SCYC 51204 63912476 reduces maintenance costs and extends the lifespan of your electronic systems.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of the ABB SCYC 51204 63912476?

   • It is designed to protect electrical and electronic systems from voltage spikes and transient surges.

2. What is the maximum peak pulse current this suppressor can handle?

   • It can handle a peak pulse current of 20 kA, making it suitable for high-power protection needs.

3. How fast does the suppressor react to voltage surges?

   • The response time is less than 1 nanosecond, providing immediate protection against voltage spikes.

4. What is the operating temperature range of this suppressor?

   • It operates between -40°C and +85°C, suitable for a wide range of industrial and commercial applications.

5. What is the energy absorption capacity of the SCYC 51204 63912476?

   • The suppressor has a high energy absorption rating of 200 J, which helps in managing large voltage surges.

6. Can this transient suppressor be used in outdoor applications?

   • While it is designed for industrial and commercial environments, it should be installed in protected enclosures for outdoor use due to its IP20 protection rating.

7. How is the ABB SCYC 51204 63912476 mounted?

   • It can be easily wall-mounted, making installation straightforward and flexible.

8. What kind of protection does this suppressor provide?

   • The suppressor provides surge and transient voltage protection, preventing damage from voltage spikes.

9. What is the clamping voltage of the SCYC 51204 63912476?

   • The clamping voltage is 400 V, ensuring that voltage spikes above this level are suppressed.

10. Is the suppressor compatible with both residential and industrial systems?

    • Yes, the SCYC 51204 63912476 is versatile and can be used in a wide range of applications, from home electronics to industrial systems.
