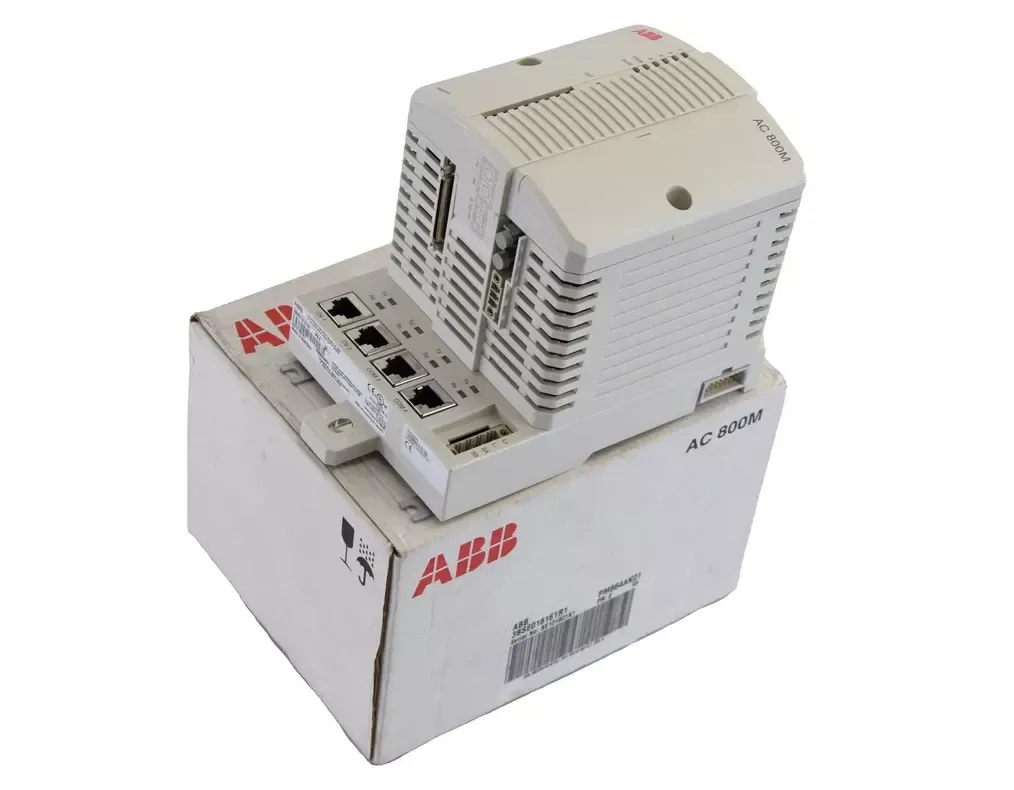

ABB PM864AK01 3BSE018161R1 CPU Board
Product Description
ABB PM864AK01 3BSE018161R1 is a CPU board, belonging to the AC 800M series controller, suitable for 800xA DCS system, the CPU board integrates a microprocessor, RAM memory, real-time clock, LED indicators, INIT button and CompactFlash interface.

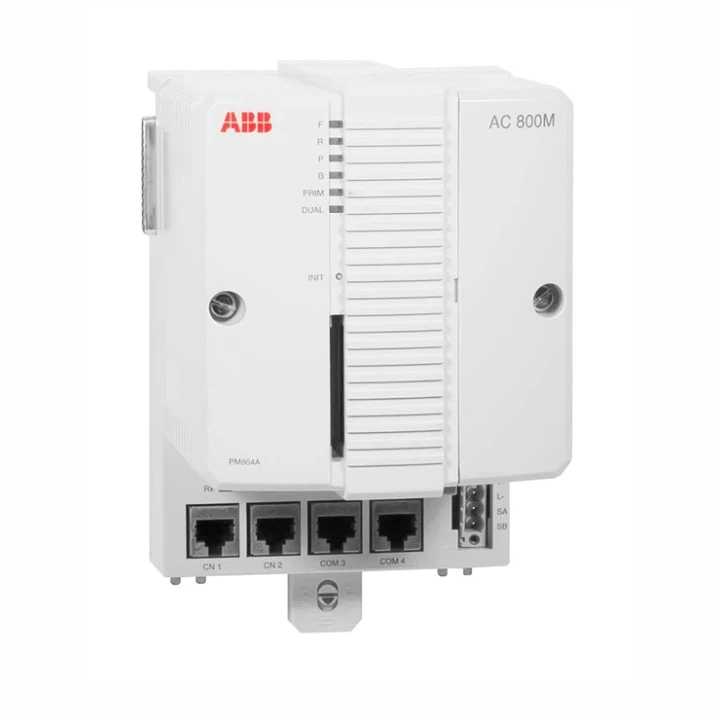

The controller baseboard has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, and two RJ45 serial ports (COM3, COM4), of which COM3 is an RS232C port with modem control signal, and COM4 is an isolated port for connecting to the configuration tool.
The PM864AK01 controller supports CPU redundancy, and all backplanes have unique Ethernet addresses, giving each CPU a hardware identity.
Fuctions & Features
Processor & Memory:
- Microprocessor + RAM memory.
- Real-time clock (RTC): ensures time stamp synchronization.
- CompactFlash interface (for program storage/backup).
| CN1/CN2 | Dual RJ45 Ethernet (10/100M) |
| COM3 | RS232C(with Modem signal) |
| COM4 | RS232C dedicated for configuration tool |
Redundancy and expansion:
- Support hot backup redundancy
- Use BC810 module to realize segmented bus and connect S800 I/O or other slave devices.
Specification
|
Parameter |
Value |
|
Package Contents |
PM864A, CPU TP830, Baseplate (width = 115mm) TB850, CEX - bus terminator TB807, ModuleBus terminator TB852, RCU - Link terminator |
|
Clock Frequency |
96 MHz |
|
Performance (1000 boolean operations) |
0.15 ms |
|
Performance |
0.15 ms |
|
Memory |
32 MB |
|
Width |
196 mm |
|
Height |
119 mm |
|
Depth |
135 mm |
|
Weight |
1200g |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A: CPU board
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
