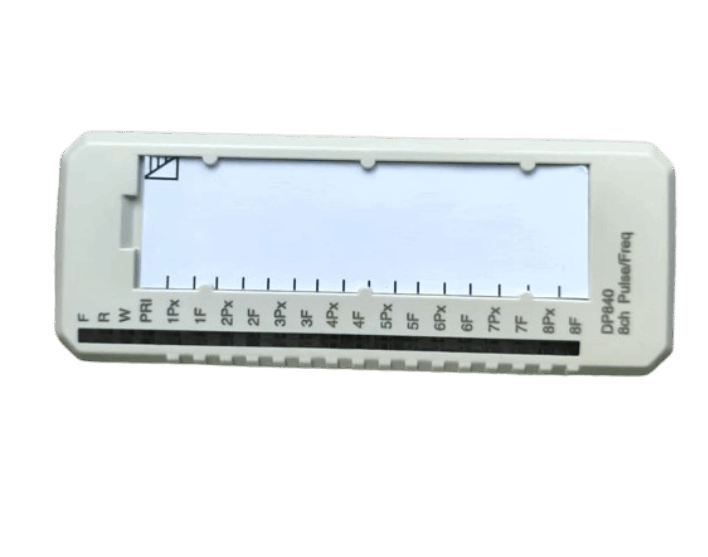

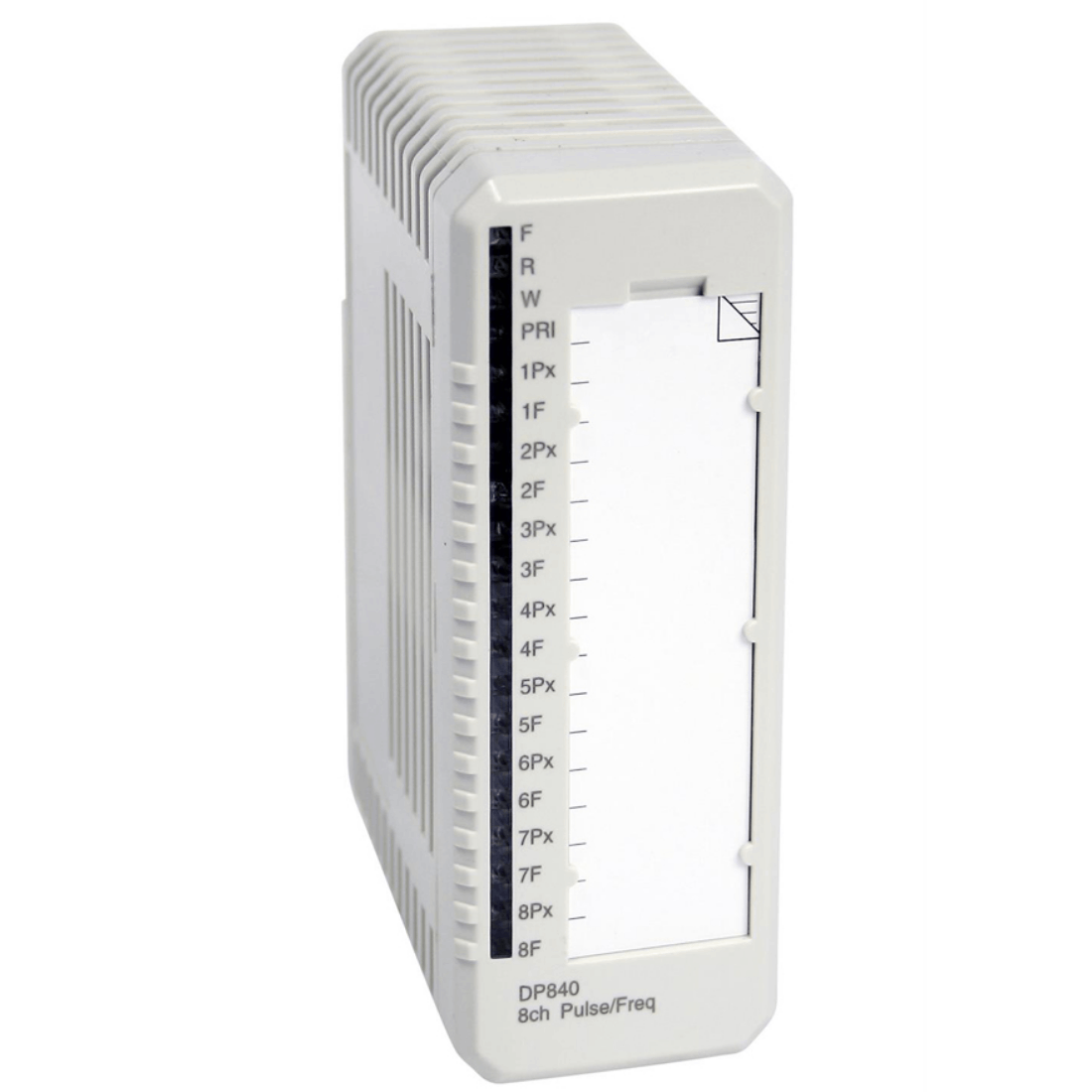

ABB DP840 3BSE028926R1 Pulse Counter
Product Description
ABB DP840 3BSE028926R1 is an 8-channel pulse counting and frequency measurement module. The module supports pulse counting, frequency/speed measurement (up to 20kHz) and digital input (DI) signal reading functions, and has NAMUR, 12V and 24V interfaces. It is an ideal choice for monitoring pulse signal generating devices such as rotating equipment and flow meters.
Note: DP840 needs to be used with module terminal units TU810V1, TU812V1, TU814V1, TU830V1, TU833.
Function & Features
- 8 independent channels - pulse counting mode (16-bit cumulative counter) / frequency / speed measurement mode (0.5Hz-20kHz range) / digital input (DI) mode - can read standard DI signals
- DP840 module can be used for stand-alone and redundant applications
- DP840 interface can be used for NAMUR, 12 V and 24 V sensor signal levels
- Frequency (speed) measurement range: 0.5 Hz - 20 kHz
application scenarios
|
Parameter |
Details |
|
Ordering number |
3BSE028926R1 |
|
Signal specification |
24 V d.c. (19.2 - 32 V d.c.) |
|
Number of channels |
8 |
|
Maximum field cable length |
200 meters (218 yards) |
|
Rated insulation voltage |
50 V |
|
Dielectric test voltage |
500 V a.c. |
|
Power dissipation |
4 W |
|
Current consumption +5 V Modulebus |
115 mA |
|
Width |
45 mm |
|
Depth |
102 mm |
|
Height |
119 mm |
|
Weight |
0.15 kg |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
