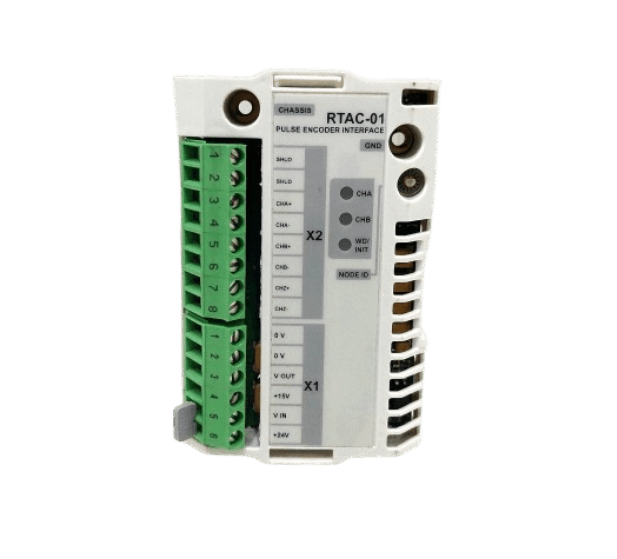

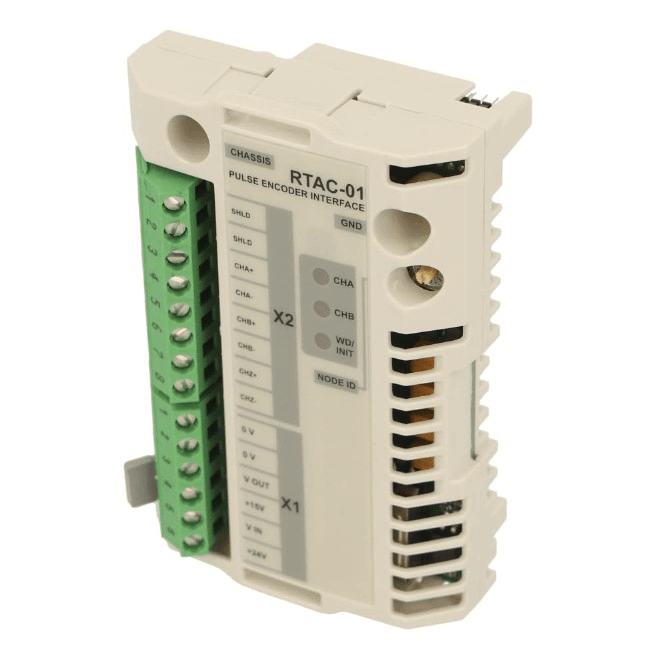

ABB RTAC-01 3ABD64610805 Pulse Encoder Interface Module
Item Number:RTAC-01 3ABD64610805
Brand:ABB
Lead Time: In stock
Description:Pulse Encoder Interface Module
Payment: T/T
Product Description
RTAC-01 (3ABD64610805) is a pulse encoder interface module designed for ABB ACS 800 series inverters. It is used to provide a connection interface for digital pulse encoders. Pulse encoders can be used when accurate speed or position (angle) feedback is required from the motor shaft. The option package includes the RTAC-01 module, encoder supply voltage selection jumper, two M3×8 mm screws and user manual.
Function & Features
- The RTAC-01 supports the ACS 800 standard application (ASXR7000 and above).
- The RTAC-01 plugs directly into the drive SLOT 1 or SLOT 2 slot and is secured with a retaining clip and two screws. Signals and power are automatically connected via a 38-pin connector.
- The screws ground the I/O cable shield connected to the module and interconnect the GND signal of the module with the RMIO board.
Included accessories
- RTAC-01 module × 1
- Encoder power supply voltage selection jumper × 1
- M3 × 8 mm screws × 2
- User manual × 1
Specifications
|
Parameter |
Value |
|
Global Commercial Alias |
RTAC-01 |
|
Product ID |
3ABD64610805 |
|
Product Net Weight |
0.5 kg |
|
Product Net Depth / Length |
15.5 cm |
|
Product Net Height |
5.2 cm |
|
Product Net Width |
22.5 cm |
|
Frame Size |
ACS600_option |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A: Pulse Encoder Interface Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
