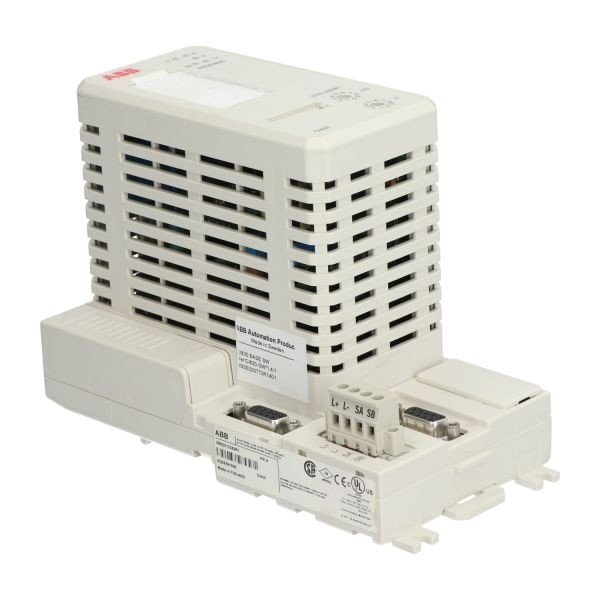

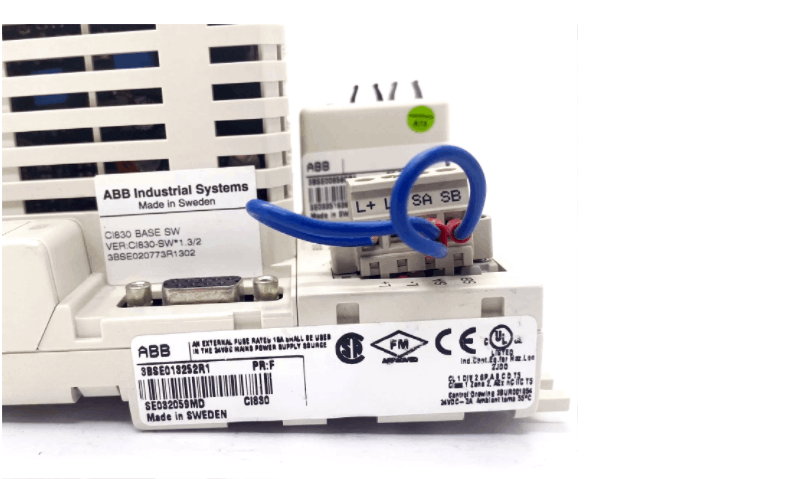

ABB CI830 3BSE013252R1 PROFIBUS DP-V1Communication Interface
Item Number:CI830 3BSE013252R1
Brand:ABB
Lead Time: In stock
Description:PROFIBUS DP-V1Communication Interface
Payment: T/T
Product Description
ABB CI830 3BSE013252R1 is a Profibus DP communication interface module designed for ABB Advant S800 I/O and 800xA systems with a 25-pin D-sub connector, rated for 50V isolation, D-sub (female) connector not included. As a key bridge between the controller and remote I/O devices.
This module has been gradually replaced by the new model CI801. CI830 is used in ABB Advant-800xA or AC 800M controllers to expand remote I/O or to achieve distributed control systems with decentralized deployment of S800 I/O modules in Profibus DP networks.
Fuctions & Features
Master station connection:
- Connect to the controller system bus via Profibus DP-V0 protocol (master station unit required)
Slave expansion:
- supports remote access of up to 24 S800 I/O modules
- 12 I/O modules connected via local ModuleBus
- The remaining modules need to be connected through I/O clusters (up to 7 clusters, 12 modules per cluster)
Specification
|
Parameter |
Value |
|
Dimensions |
128 * 185 * 59 mm |
|
Weight |
0.8 kg |
|
Input Voltage |
24V DC (Operating range: 19.2 - 30V) |
|
Power Supply Fuse |
2A |
|
Power Consumption |
Current consumption: approximately 140mA, Power dissipation: 5.4W |
|
Protocol Supported |
Profibus DP-V0 (Slave mode) |
|
Maximum I/O Capacity |
24 modules (12 direct connections + 7×12 via clusters) |
|
Electrical Isolation |
50V |
|
Replacement Model |
CI801 (Recommended for new installations) |
