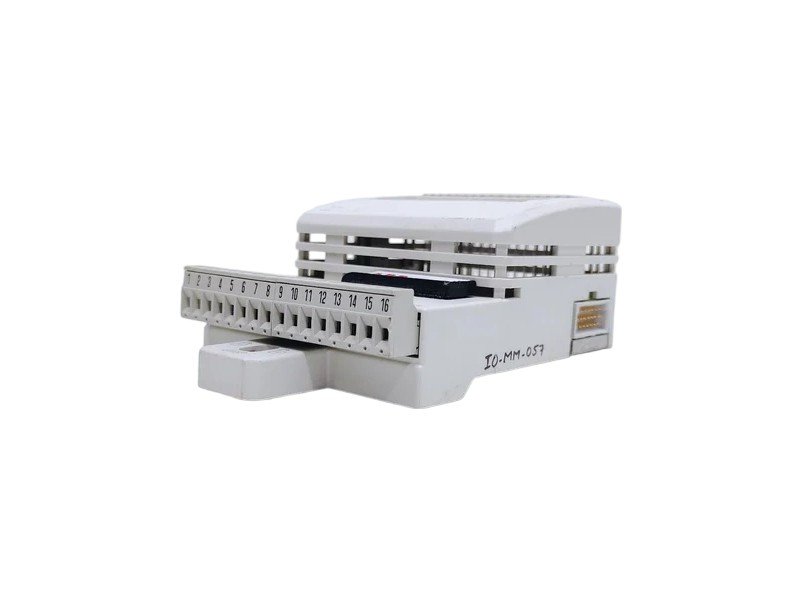

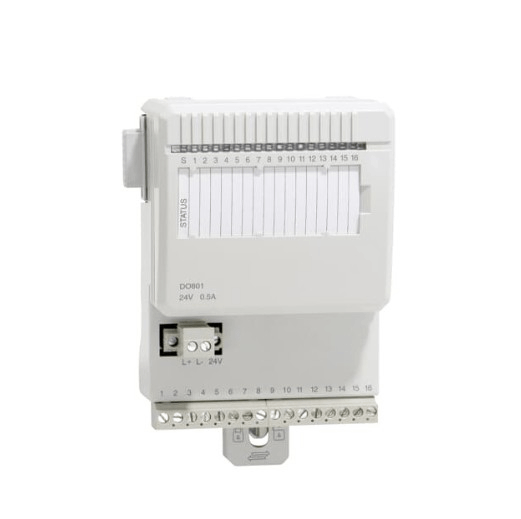

ABB DO801 3BSE020510R1 Digital Output 24V 16 Ch Module
Item Number:DO801 3BSE020510R1
Brand: ABB
Lead Time: In stock
Description:Digital Output 24V 16 ch Module
Payment: T/T
Product Description
ABB DO801 (part number 3BSE020510R1) is a 16-channel 24V DC digital output module for S800 I/O systems. This module features source output, an output voltage range of 10–30V, and a maximum continuous output current of 0.5A. The ABB DO801 offers multiple protection and isolation functions and can be used to drive a wide variety of devices (such as relays, solenoid valves, indicator lights, etc.) and provide switching control.
Function & Features
- Outputs and Drives: The ABB DO801 3BSE020510R1 provides 16 digital output channels and uses source-type outputs to drive devices.
- Safety Isolation: The 16 channels of the ABB DO801 3BSE020510R1 are located in an isolation group, which is optically isolated from the control system bus and power supply. In the event of a communication failure, the OSP (Output Status Hold) function can set the output to a preset state.
- Suppressing back EMF from inductive loads: The ABB DO801 3BSE020510R1 has a built-in protection component,used to absorb the reverse induced voltage generated when an inductive load (such as a relay coil or solenoid valve) is disconnected, protecting the module's output transistors.
Specifications
| Parameter | Details |
|---|---|
| Product Model | DO801 |
| Part number | 3BSE020510R1 |
| Type | Digital Output |
| Maximum field cable length | 600 meters (656 yards) |
| Power dissipation | Typ. 2.1 W |
| Supported wire size | Solid: 0.05-2.5 mm², 30-12 AWGStranded: 0.05-1.5 mm², 30-12 AWGRecommended torque: 0.5-0.6 NmStripping length 6-7.5mm, 0.24-0.30 inch |
| Width | 86.1 mm |
| Depth | 58.5 mm |
| Height | 110 mm |
| Weight | 0.24 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
