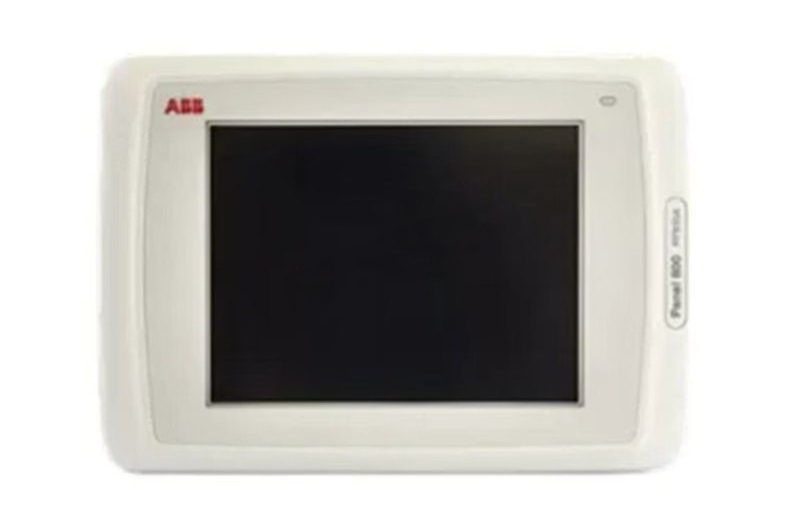

The ABB PP865A 3BSE042236R2 is a rugged, high-performance HMI panel. It provides real-time control and monitoring in industrial automation systems. Operators benefit from its intuitive design and responsive interface. This panel suits harsh environments and integrates with ABB Panel 800 systems. With its wide temperature tolerance, it performs reliably in demanding conditions.

Technical Specifications

Display & Interface

• Display Type: 15-inch TFT touchscreen
• Resolution: 1024 x 768 pixels
• Input Methods: Touchscreen and function keys

System Compatibility

• Compatible System: ABB Panel 800 series
• Configuration Software: Panel Builder 800, version 5

Environmental Conditions

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C

Mechanical Specifications

• Dimensions: 180 mm x 120 mm x 100 mm
• Weight: 1.9 kg

Protection Rating

• Ingress Protection: IP65 (NEMA 4)
