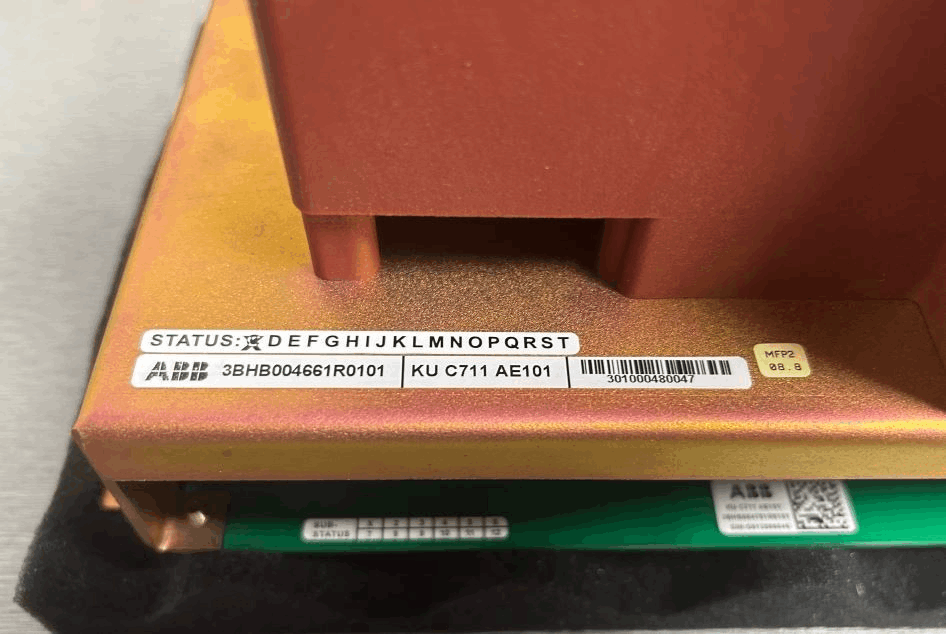

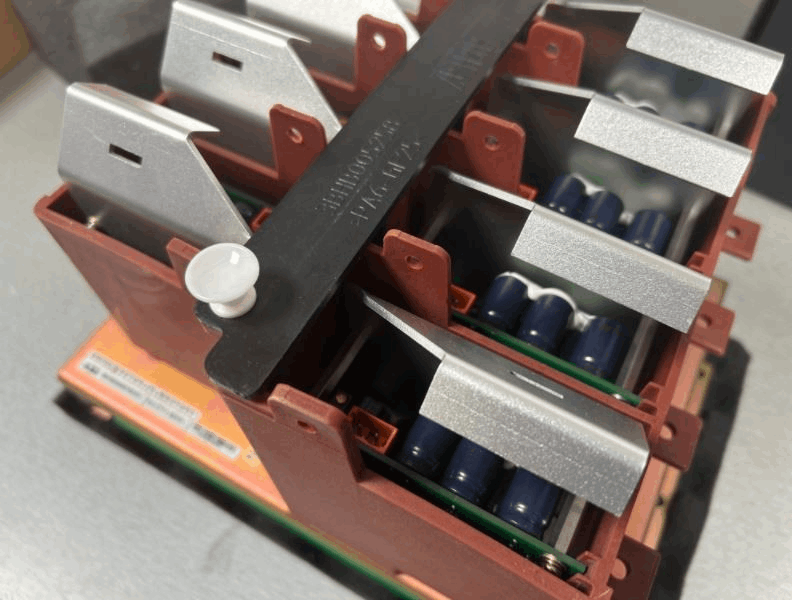

ABB KUC711AE101 3BHB004661R0101 Gate Unit Power S GUSP
Item Number:KUC711AE101 3BHB004661R0101
Brand: ABB
Lead Time: In stock
Description:Gate Unit Power
Payment: T/T
Product Description
ABB KUC711AE101 3BHB004661R0101 Gate Unit Power S GUSP is a gate power supply unit used in industrial control systems. It primarily provides power to gate driver units, which are responsible for controlling and driving high-power semiconductor devices such as IGBTs and GTOs. The KUC711AE101 supplies DC power to the gate driver units associated with IGCTs (Integrated Gate-Commutated Thyristors) and similar components.
This, in turn, supports the functioning of related power electronic equipment within industrial control systems. It is commonly found in equipment such as medium-voltage drives (e.g., ACS1000, ACS5000), HVDC (High Voltage Direct Current) transmission systems, and high-power industrial motor drives.
Fuctions & Features
- Input control signal: KUC711AE101 is usually a low voltage logic signal (such as 5V/24V) or a fiber optic signal.
- Gate drive control: KUC711AE101 can provide drive signals to ensure the switching of power semiconductors (such as IGBT modules).
- Output drive capability: KUC711AE101 is suitable for high power IGBT modules (such as 3.3kV, 4.5kV or 6.5kV levels).
- Status feedback: KUC711AE101 can provide fault signals (such as FLT output) to the upper control system.
Specification
|
Catalog Description |
KU C711 AE; GATE UNIT POWER S GUSP |
| Product Model | KUC711AE101 |
| Order Number | 3BHB004661R0101 |
| Product Description | KU C711 AE; Gate Unit Power Supply S Gusp |
| (Typical) Input Control Signals | Low-voltage logic signals (5V DC / 24V DC) or fiber optic signals |
| (Typical) Output Driving Capability | Applicable to 3.3kV, 4.5kV, 6.5kV class IGCT / IGBT modules |
| (Typical) Status Feedback | Fault signal output (FLT) |
|
Net Weight |
4.7 kg |
|
Net Depth / Length |
279 mm |
|
Net Height |
203 mm |
|
Net Width |
191 mm |
