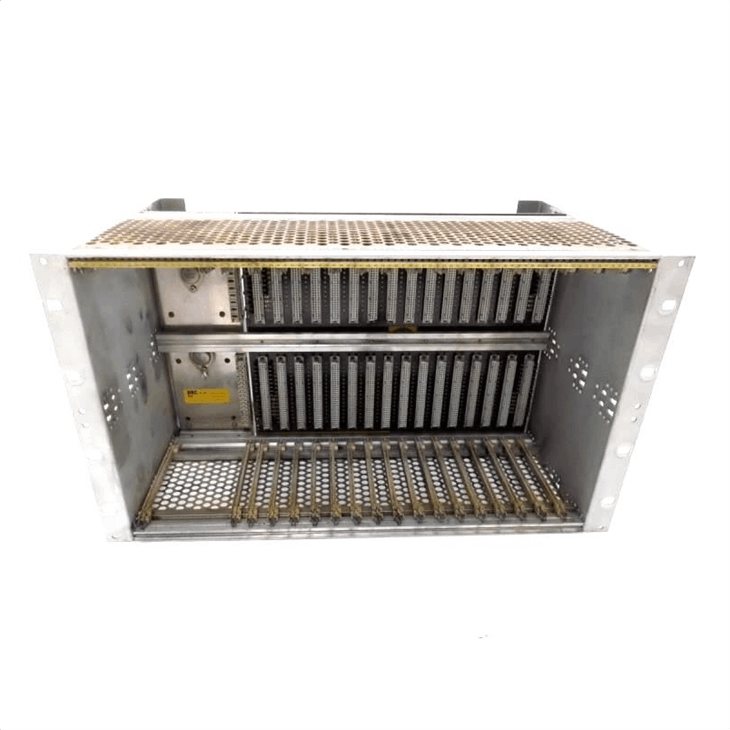

ABB DSRF185 3BSE004382R1 Equipment Frame

The ABB DSRF185 (3BSE004382R1) equipment frame is an equipment rack for control system accessories. This rack serves as the mechanical structure and mounting foundation for the ABB Advant OCS series control systems. This frame is designed for use with the 3BSE016025R1 AC410B12 System Unit without Software Kit. The ABB DSRF185 frame provides installation and integration for the S100 I/O module with other system components such as controllers, power supplies, and I/O modules, forming a complete working unit.

Specifications

Parameter	Details
Product Model	DSRF185
Part Number	3BSE004382R1
Catalog Description	DSRF185M Equipment Frame
Categories	Control System Products → Assembly Parts → AC 400 Assembly Parts → AC 400 - Equipment Frames → DSRF 185M Subracks → DSRF185M Subrack
Depth	306 mm
Height	261 mm
Width	31.5 mm
Weight	5 kg

Core advantages

1.The ABB DSRF185 (3BSE004382R1) is used as the mechanical body of the AC410B12 system unit for mounting:

• AC 410 controller motherboard
• S100 I/O module
• Communication module
• Power supply module

2.Application scenario: The DSRF185 frame serves as both the "chassis" and "motherboard backplane" for the entire control station. 3.As a local control node in the process automation system: the AC 410 control station, built with the DSRF185 framework, serves as an independent local controller.

FAQ

Q: What is the payment method?

A: T/T

Q: Is technical support available?

A:Yes, we have a professional technical team to address technical issues.

Q: What is the warranty?

A: 1 year

Q: What is the return and exchange policy?

A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.

Q:What are the available shipping methods?

A: FedEx, DHL, UPS, and others.
