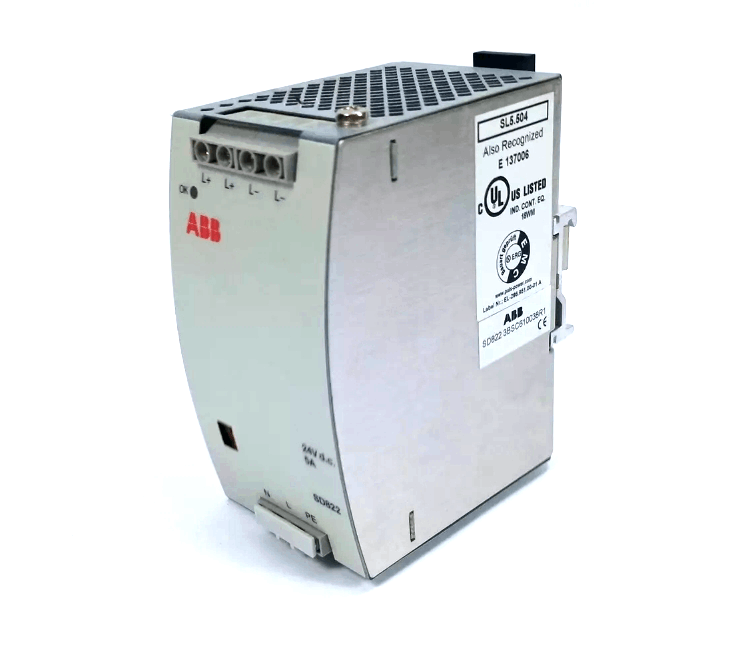

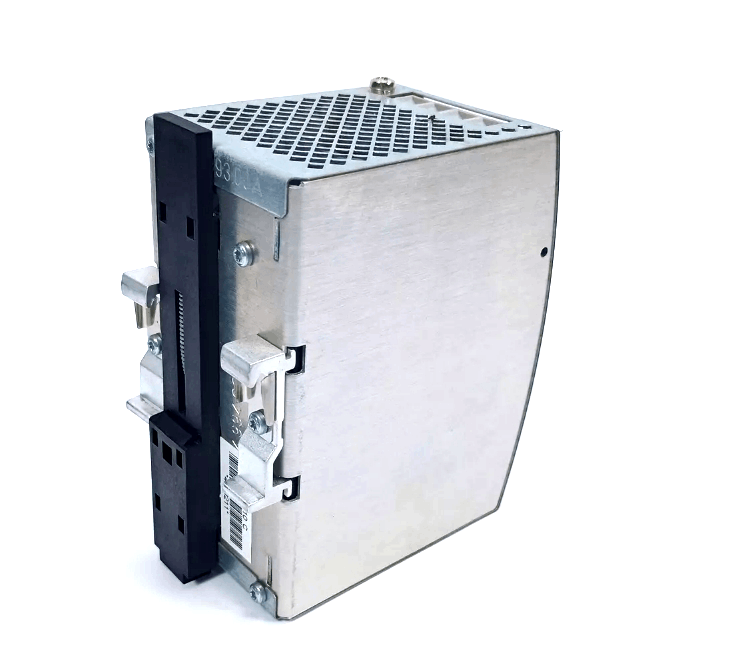

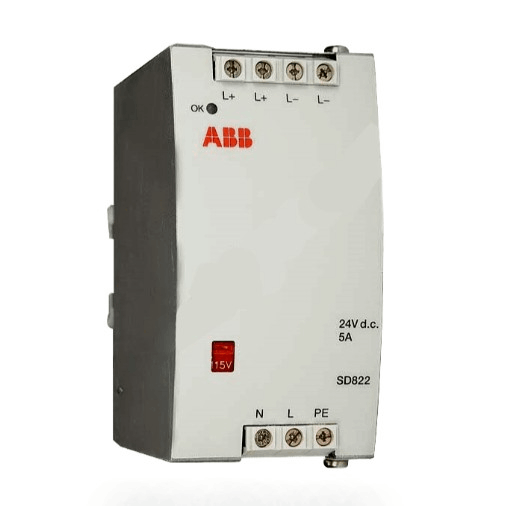

ABB SD822 3BSC610038R1 Power Supply Device

ABB SD822 3BSC610038R1 is a power supply unit for System 800xA. It is also a 5-year preventive maintenance kit, which contains 1 SD822 power supply unit. It has voltage conversion function, the input voltage is 115/230V AC (selectable by switch), and it can convert AC power into a stable 24V DC output with an output current of 5A. It has over-current protection. When the output current exceeds 5A, the over-current detection circuit will trigger the protection mechanism to prevent damage to the power supply and load.

Fuctions & Features

• Voltage conversion function: The input voltage of ABB SD822 is 115/230V AC (selectable by switch), which can convert AC power into a stable 24V DC output with an output current of 5A.

• Overcurrent protection: ABB SD822 power supply device has overcurrent protection function. When the output current exceeds the set 5A value, the overcurrent detection circuit will detect the abnormality and trigger the protection mechanism, such as cutting off the circuit or limiting the current, to prevent the power supply device and the connected load from being damaged by overcurrent.

• Environmental attributes: According to the WEEE classification rules, Class 5 small devices refer to electronic and electrical equipment with an external dimension not exceeding 50 cm. The width of ABB SD822 power supply device is 65 mm, and the overall external dimension is usually not more than 50 cm, which meets the size definition of Class 5 small devices.

Specification
