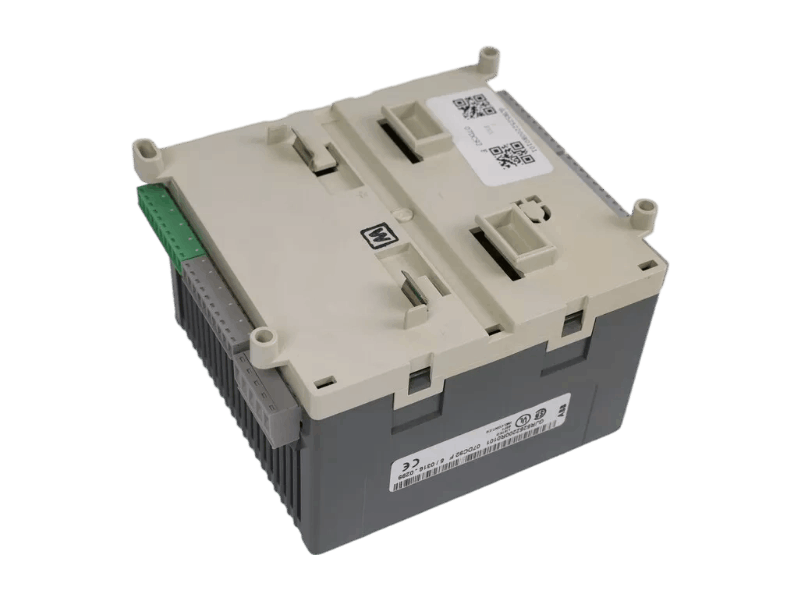

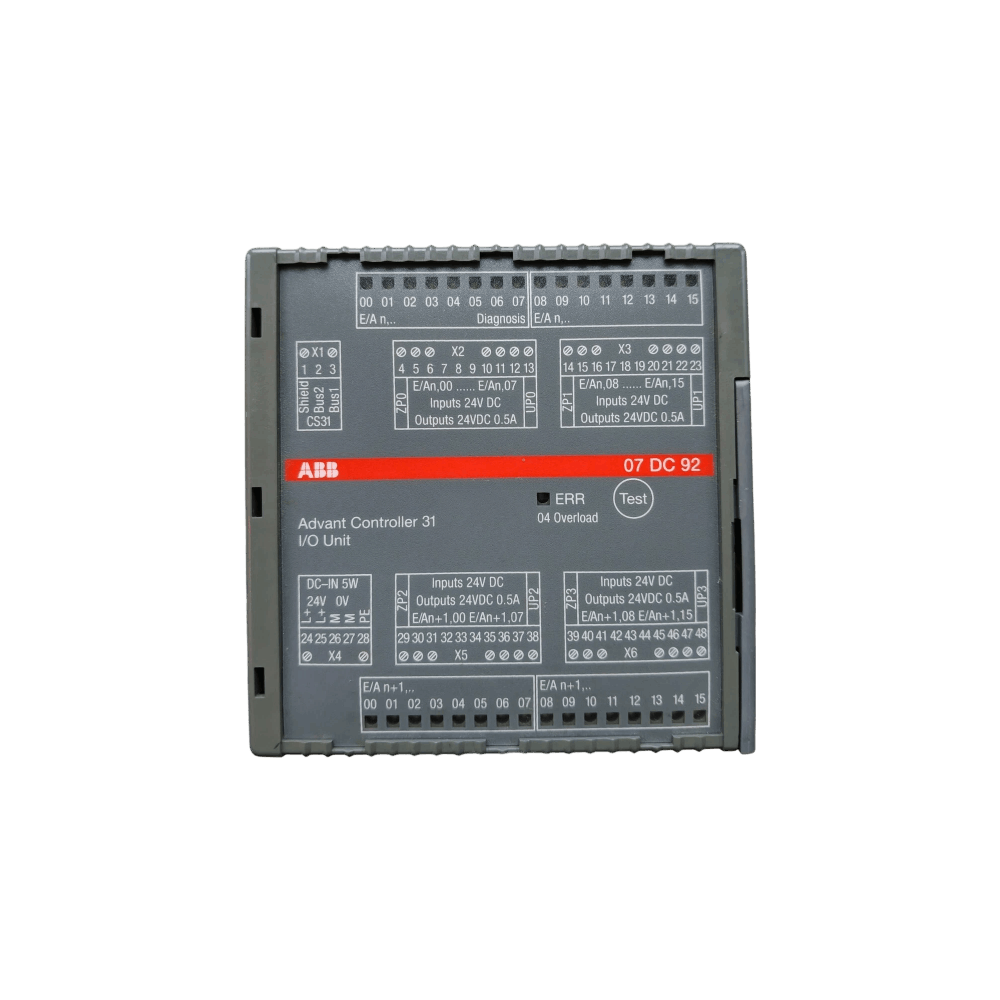

ABB 07DC92 GJR5252200R0101 Digital Input/Output Module
Item Number:07DC92 GJR5252200R0101
Brand: ABB
Lead Time: In stock
Description:Digital Input/Output Module
Payment: T/T
Product Description
ABB 07DC92 (GJR5252200R0101) is a 32-channel Digital Input/Output Module. It connects to the CS31 system bus as a remote I/O station, connecting the central controller to the equipment. Each channel can be independently configured as input, output, or a special "read-back output" mode. This module replaces pure input, pure output, and mixed modules.
Function & Features
1.07DC92 Independent Channel Configuration Mode
- Digital Input (DI): Used to read the status of field switches (such as buttons, limit switches, and contact signals).
- Digital Output (DO): Used to control field devices (such as indicator lights, relay coils, and small contactors).
- Combined I/O: This is a special mode. A channel acts as an output to drive a load, but also allows the actual voltage status of that output to be read.
2.Transistor output:
- 07DC92 uses MOSFET transistor for output, which has longer life and faster switching speed than mechanical relays.
Specifications
|
Parameter |
Details |
|
Model |
07DC92 |
|
Part Number |
GJR5252200R0101 |
|
max. 2.5 mm² |
|
|
CS31 system bus |
max. 2.5 mm² |
|
signal terminals |
max. 1.5 mm² |
|
supply for I/O groups |
max. 1.5 mm² |
|
Number of interfaces |
1 CS31 system bus interface |
|
Address setting |
Coding switch located under the slide cover at the right side of the housing |
|
Input delay |
typ. 7 ms |
|
Width x height x depth |
120 x 140 x 85 mm |
|
Weight |
450 g |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
