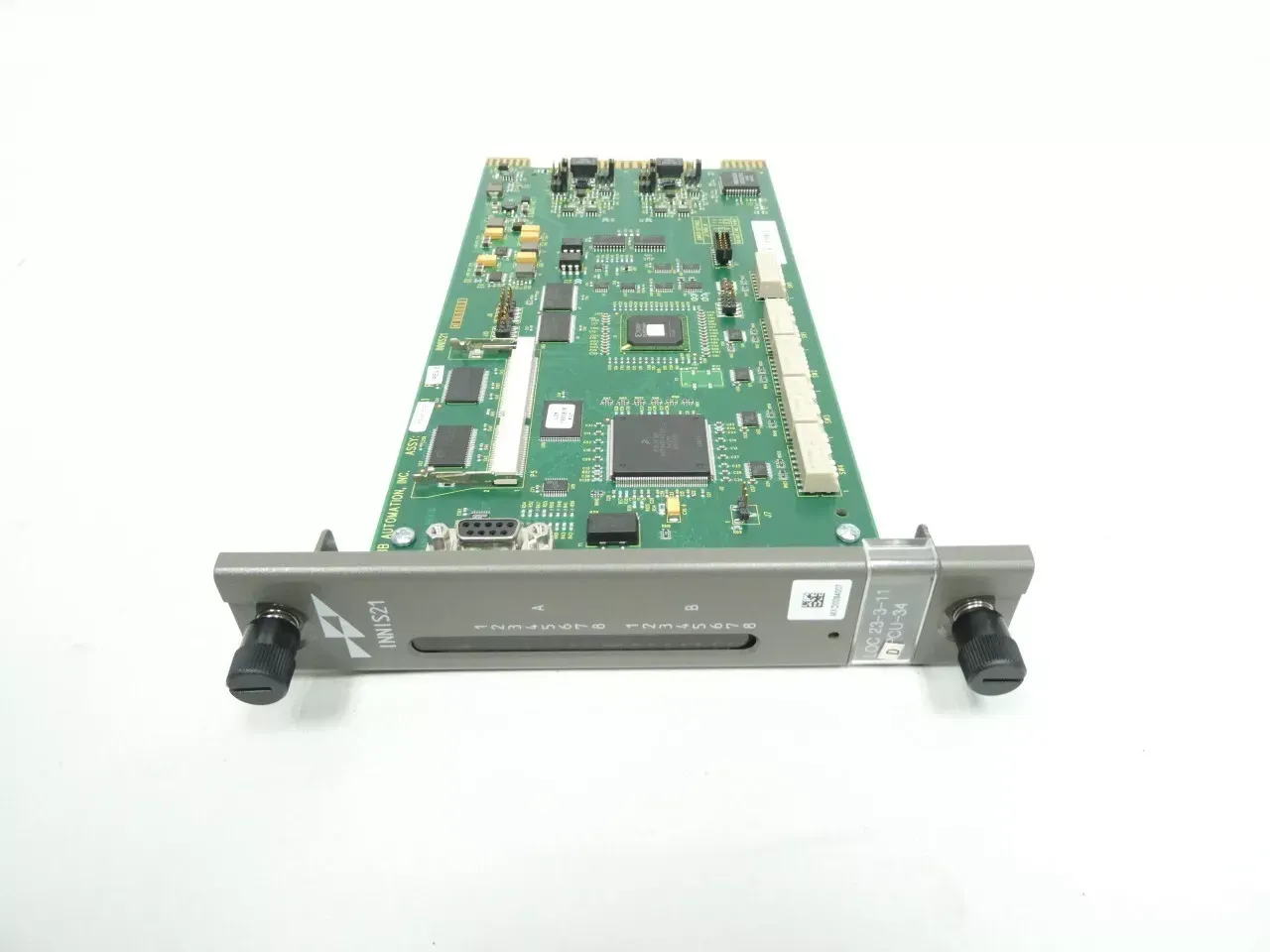

ABB INNIS21 Network Interface Slave Module
Item Number:INNIS21
Brand: ABB
Lead Time: In stock
Description:Network Interface Slave Module
Payment: T/T
Product Description
ABB INNIS21 network interface slave module is a key component in the Cnet-to-HCU interface of the Symphony enterprise management and control system. It supports communication between the Harmony control unit (HCU) and the control network (Cnet), which is essential for connecting the Harmony control units to the distributed nodes of the system.
The INNIS21 is a direct replacement for the older INNIS11 module and is used in conjunction with the INNPM22 for enhanced functionality. The module supports a highly scalable system with over 62,000 nodes connected via Cnet, including central and satellite networks.
Fuctions & Features
- Provides a plant-wide communication network.
- Supports time synchronization to ensure clock consistency throughout the control system.
- 10 MHz communication rate enables timely information exchange
- Each node can operate independently without affecting other nodes.
- The HCU interface module can handle four message types: broadcast, time synchronization, multicast, and NIS polling, and all messages include cyclic redundancy check code (CRC) and checksum
Specification
|
Property |
Characteristic/Value |
|
Model Number |
INNIS21 |
|
Compatible Module |
Must be used with INNPM22 Network Processing Module |
|
Power Requirements |
+5 VDC @ 825 mA; 4.1 W or +5 VDC @ 1.1 A; 5.5 W |
|
System Capability |
- Supports over 62,000 system nodes - Up to 250 nodes on a single network |
|
Communication Rates |
10 Mbaud, 2 Mbaud, or 0.5 Mbaud |
|
Supported Node Types |
- Central Network: Bridge to satellite network, Human System Interface (HSI), HCU, Computer - Satellite Network: Bridge to central network, HSI, HCU cabinet, Computer |
|
Message Types |
Broadcast, Time-synchronization, Multicast, NIS Poll |
|
Data Integrity |
All messages include CRC (Cyclic Redundancy Check) codes and checksums |
