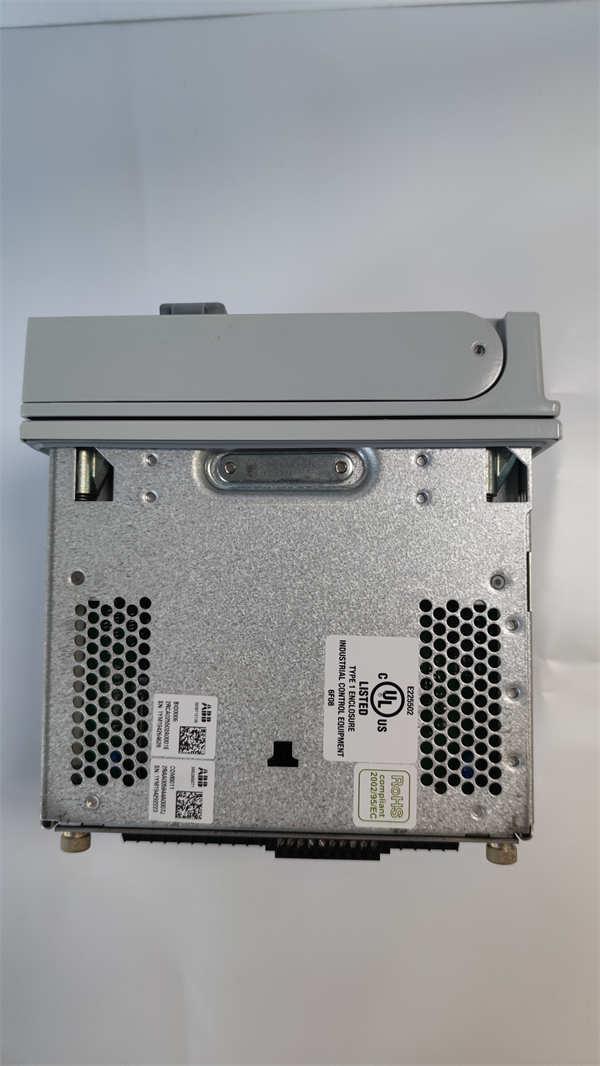

ABB REM615 HBMCAEAGANB6ANN1XG Protection Relay

The ABB REM615 HBMCAEAGANB6ANN1XG is a versatile protection relay designed for medium-voltage applications in industrial and utility power systems. As part of ABB’s Relion® 615 series, this intelligent electronic device (IED) provides comprehensive protection for feeders, motors, and transformers in demanding electrical networks.

Engineered for reliability, the REM615 HBMCAEAGANB6ANN1XG combines advanced protection algorithms with robust communication capabilities. The unit features multiple protection functions including directional/non-directional overcurrent, earth fault protection, and thermal overload protection. Its modular design allows for flexible configuration to meet specific application requirements in industries ranging from oil and gas to renewable energy systems.

Detailed Parameter Table

Core Advantages and Technical Highlights

Advanced protection scheme: The ABB REM615 HBMCAEAGANB6ANN1XG incorporates ABB’s proven protection algorithms with adaptive characteristics that automatically adjust to network conditions. The relay offers 50/51 phase overcurrent and 50N/51N earth fault protection with multiple curve options.

Comprehensive communication: Supporting IEC 61850 Edition 2, the relay enables seamless integration into modern substation automation systems. Additional protocols including Modbus RTU/TCP, DNP3.0, and Profibus DP ensure compatibility with various SCADA and control systems.

User-friendly interface: The REM615 HBMCAEAGANB6ANN1XG features a large graphical LCD display with intuitive navigation and local control capability. The relay includes 8 programmable LEDs and 5 pushbuttons for easy operation and status indication.

Robust construction: Designed for harsh environments, the relay withstands severe electromagnetic interference (EMC immunity up to 4kV) and mechanical vibrations. The front panel meets IP40 protection while maintaining excellent heat dissipation.

Typical Application Scenarios

The ABB REM615 HBMCAEAGANB6ANN1XG is widely deployed in industrial power distribution systems requiring reliable feeder protection. In manufacturing plants, it safeguards critical motor circuits from overload and phase imbalance conditions. The relay’s sensitive earth fault detection makes it ideal for unearthed or resistance-grounded networks in chemical processing facilities.

For utility applications, the REM615 HBMCAEAGANB6ANN1XG protects distribution feeders in substations, with directional overcurrent capability for ring main applications. Renewable energy installations benefit from its adaptive protection settings that accommodate generation fluctuations in solar farms and wind parks.

Installation, Commissioning and Maintenance Instructions

Installation preparation: The ABB REM615 HBMCAEAGANB6ANN1XG should be mounted vertically on a standard DIN rail or panel using the provided mounting clips. Ensure adequate clearance (minimum 50mm) above and below the unit for proper ventilation. All wiring must comply with local electrical codes and ABB’s installation guidelines.

Maintenance suggestions: Regular maintenance should include visual inspection of the front panel indicators, verification of communication links, and checking of terminal tightness. The relay’s built-in self-supervision system provides early warning of potential issues. Firmware updates should be performed using ABB’s PCM600 software when available.

Service and Guarantee Commitment

ABB offers a 60-month warranty for the REM615 HBMCAEAGANB6ANN1XG, covering materials and workmanship defects. The relay undergoes rigorous type testing according to international standards. ABB’s global service network provides 24/7 technical support, with trained engineers available for commissioning assistance and troubleshooting.
