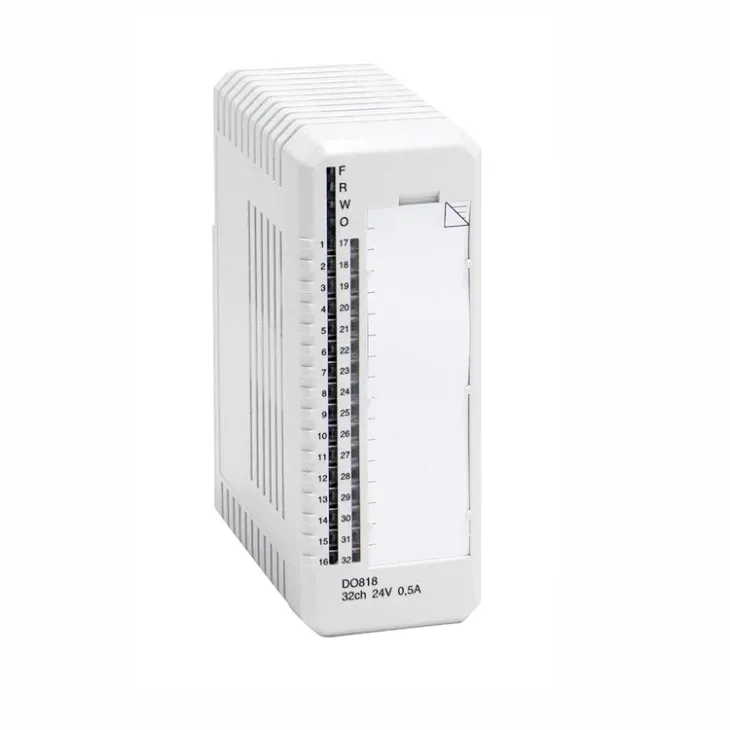

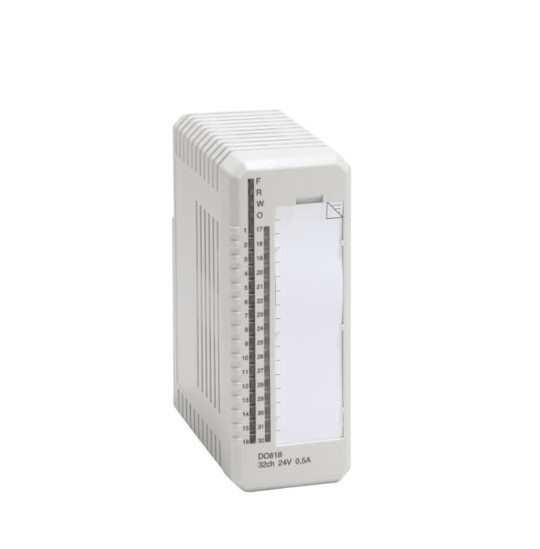

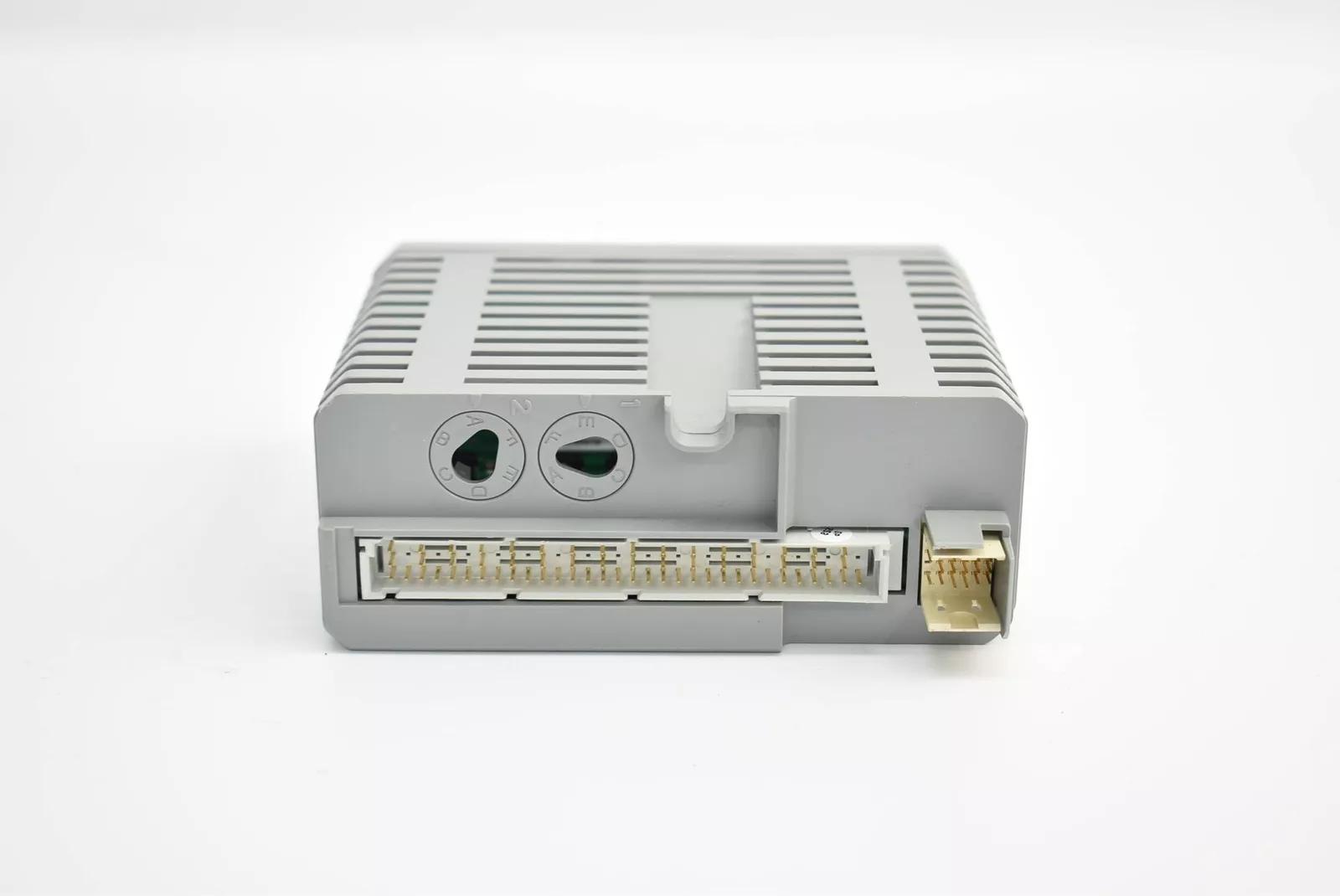

ABB DO818 3BSE069053R1 Digital Output
Item Number:DO818 3BSE069053R1
Brand: ABB
Lead Time: In stock
Description:Digital Output 24V 32 ch
Payment: T/T
Product Description
ABB DO818 3BSE069053R1 is a digital output module designed for S800 I/O system. It has 32 channels, can output 24V DC voltage, the output voltage range is between 12 and 32 volts, and the maximum continuous output current per channel is 0.5A.
Each output channel is equipped with high-end drivers, EMC protection components and other components. The module supports a maximum field cable length of 600 meters, a rated insulation voltage of 50V, and a dielectric test voltage of 500V AC.
Function & Features
- The outputs are divided into two independently isolated groups of 16 output channels each and a voltage monitoring input.
- Each output channel contains a high-side driver with short-circuit and overtemperature protection, EMC protection components, inductive
- load suppression, output status indication LEDs and an optical isolation barrier.
- The process voltage monitoring input provides a channel error signal in the event of voltage loss, which can be read via the ModuleBus.
Specifications
|
tems |
Details |
|
Isolation |
Groupwise isolated from ground |
|
Output Load |
< 0.32 Ω |
|
Maximum Field Cable Length |
600 meters (656 yards) |
|
Rated Insulation Voltage |
50 V |
|
Dielectric Test Voltage |
500 V a.c. |
|
Power Dissipation |
Typ 2.8 W |
|
Current Consumption +5V Modulebus |
Typ 70 mA |
|
Current Consumption +24V Modulebus |
0 |
|
Current Consumption +24V External |
40 mA |
|
Width |
45 mm (1.77") |
|
Depth |
102 mm (4.01"), 111 mm (4.37") including connector |
|
Height |
119 mm (4.7") |
|
Weight |
0.18 kg (0.4 lbs.) |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Digital Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
