ABB 70BA01C-S HESG447260R2 Bus End Module

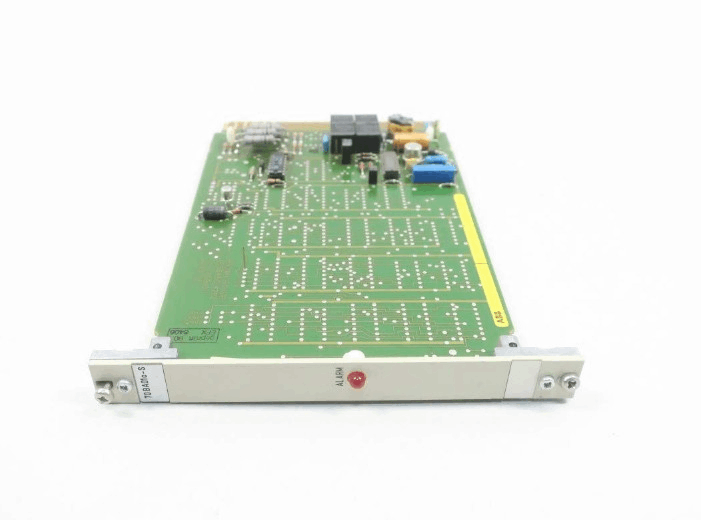

ABB 70BA01C-S HESG447260R2 is a terminal module (bus terminal module) for industrial bus systems, specially designed to manage and terminate bus communications to ensure the integrity of signal transmission. The module plays an important role at the end of the bus network, by providing signal matching and impedance termination to avoid signal reflection and interference, ensuring the system operates in long-distance data transmission.

Fuctions & Features

• Signal matching and impedance termination: During long-distance data transmission, if there is no suitable impedance matching at the end of the bus, the signal will be reflected back at the end, causing signal distortion, data errors and other problems. The ABB 70BA01C-S module uses its own design to match the impedance at the end of the bus with the characteristic impedance of the bus, allowing the signal to be transmitted to the end without reflection.

• Signal matching: ABB 70BA01C-S module ensures that the signal at the end of the bus matches the electrical characteristics of the bus, so that the signal can be transmitted on the bus with the correct amplitude, frequency and other parameters, avoiding signal distortion or attenuation due to mismatch and ensuring signal quality.

• Communication termination: marks the physical end point of bus communication. ABB 70BA01C-S module informs the devices on the bus of the boundary of data transmission, so that the devices on the bus can correctly identify the start and end positions of the data and avoid data transmission confusion.

Specification
