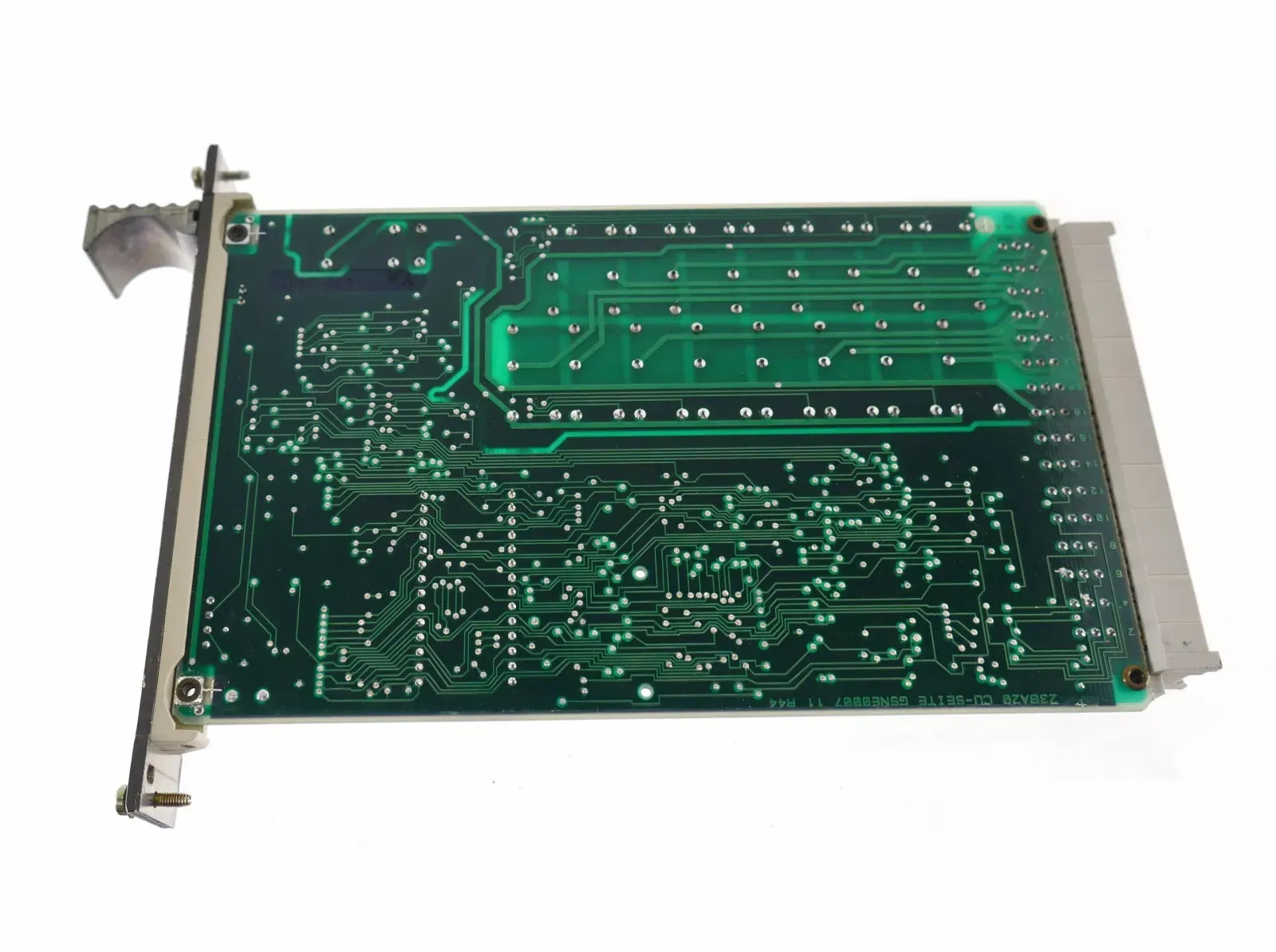

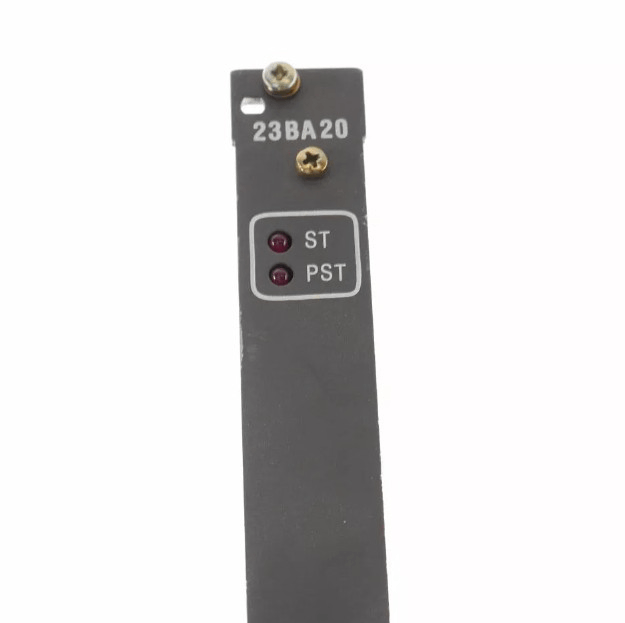

ABB 23BA20 GSNE000700R5312 Binary Output Board

ABB 23BA20 GSNE000700R5312 Binary Output Board is part of the ABB Procontrol system and is designed to handle binary outputs, i.e. signals that switch between two states, usually "on" or "off". Such output boards are typically used to control devices such as motors, valves and relays

Function & Features

Binary output functions: The 23BA20 board provides digital output signals for controlling external devices that operate in binary states, such as relays or solenoids.

Outputs: The 23BA20 board typically provides multiple output channels (e.g. 8 or 16 channels), depending on the configuration, to control various devices in an automation system.

Activation: The I/O microcontroller (EAP Input Output Processor) activates any output forced by the VAP of the CMU (CMU = Communication Unit) by issuing an output request. The EAP controls the duration of the pulse output by means of a loaded pulse length time value.

Output monitoring and supervision: The EAP checks and monitors any output by means of different test and supervision functions: x Reading back the output mode before activating the output x Monitoring of the 24 V DC from the backplane bus to the switching output relays during active output x Pulse duration is controlled by the EAP x Any detected error is indicated by an LED.

Specifications
