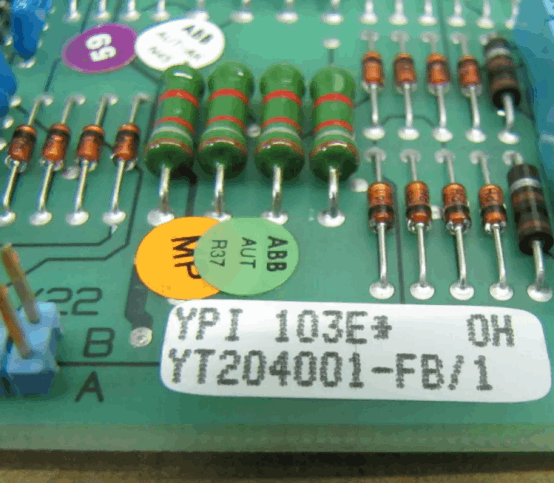

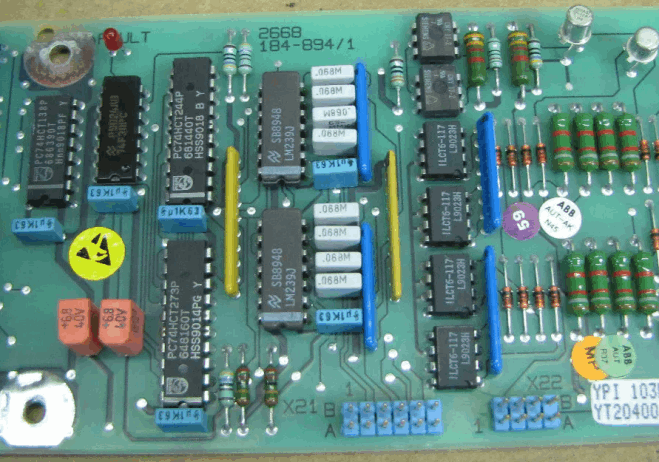

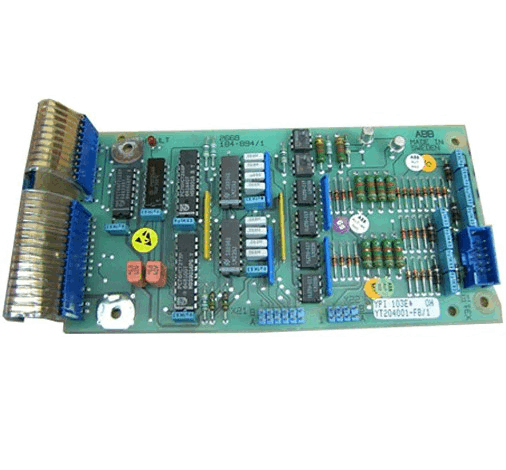

ABB YPI103E YT204001-FB Digital Circuit Board

ABB YPI103E YT204001 - FB Digital circuit board is a component used in a specific electrical device or system. It is mainly responsible for processing and transmitting digital signals, and plays an important role in logic control, data processing and signal conversion in the operation of the entire device or system. The following is an introduction to the specific functions of ABB YPI103E:

Fuctions & Features

• Signal output: The ABB YPI103E YT204001 digital circuit board determines whether the temperature exceeds the set value based on the signal input by the temperature sensor. If it exceeds, it outputs a high-level signal to drive the relay.

• Clock and synchronization: The ABB YPI103E YT204001 digital circuit requires a clock number to synchronize the work of each part. The clock signal is usually generated by a clock generator, which provides a periodic pulse signal. All logic circuits and storage units operate synchronously under the control of this clock signal.

• Power management: The ABB YPI103E YT204001 digital circuit board requires power supply to work. The power supply circuit converts the external input power into various voltage levels required by the digital circuit, such as + 5V, + 3.3V, + 1.8V, etc.

Specification
