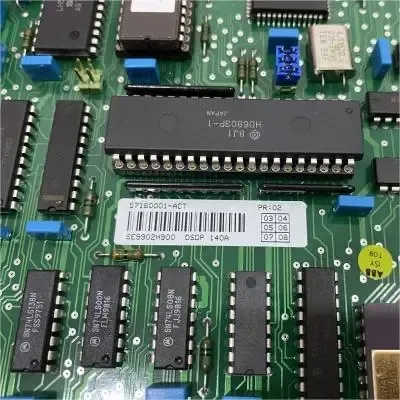

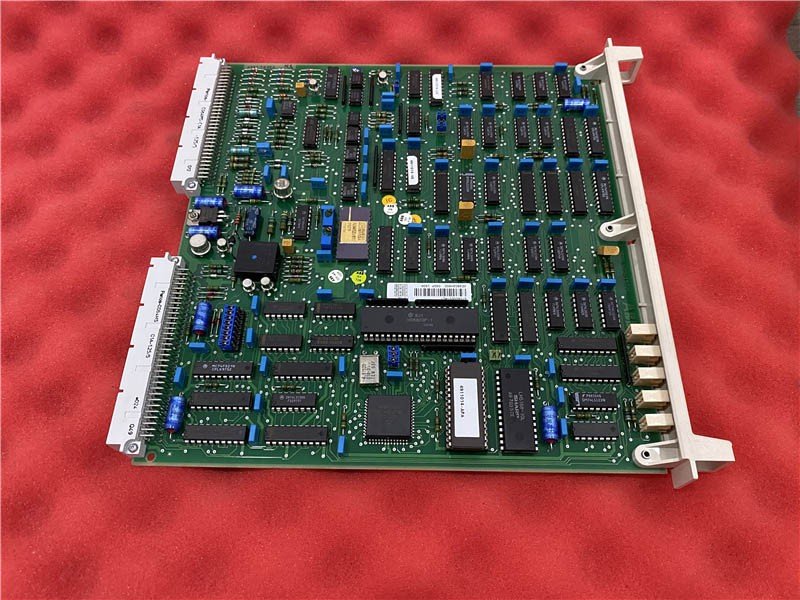

ABB DSDP 140A 57160001-ACT Pulse Counter Board
Item Number:DSDP 140A 57160001-ACT
Brand: ABB
Lead Time: In stock
Description:Pulse Counter Board
Payment: T/T
Product Description
ABB DSDP140A 57160001-ACT pulse counter board is part of the Advant Controller 400 series of process controllers. It consists of multiple I/O boards, internal cables, and a connection unit. The I/O boards are divided into groups based on their functionality, with each group containing multiple I/O boards. One of the modules used for specialized tasks is the DSDP140A pulse counter board, which offers functions such as pulse counting and frequency measurement.
Function & Features
- Pulse Counting and Frequency Measurement: The ABB DSDP140A, as a pulse counter, can count input pulses and measure their frequency.
- Positioning Control: The ABB DSDP140A supports positioning loops with three pulse inputs (A, B, and STROBE) with a current of ±15 mA and a maximum frequency of 80 kHz, as well as a positioning loop input for a pulse generator (three channels, ±15 mA, maximum 80 kHz).
- Digital and Analog Signal Processing: The ABB DSDP140A provides digital input and output (DI/DO) functionality. The digital outputs (DO) are 24 V DC with a maximum current of 150 mA, and the analog outputs (AO) are ±10 V/±20 mA with 11-bit resolution.
Specifications
|
Category |
Details |
| Model | DSDP 140A |
| Part Number | 57160001-ACT |
|
Description |
Pulse Counter Board |
|
Product Type |
I/O Module |
|
Technical Information |
DSDP 140A Pulse Counter Board. 1 pulse inp, 2 DI, 4 DO, 1 AO One positioning loop input for pulse generator: three channels, ±15 mA, max. 80 kHz DI/DO: 24 V d.c., AO: Resolution 11 bits + sign, 0 to + 10 V or 0 to ±20 mA |
|
Dimensions |
|
|
Net Depth |
209.7 mm |
|
Net Height |
18 mm |
|
Net Width |
225 mm |
|
Net Weight |
0.44 kg |
