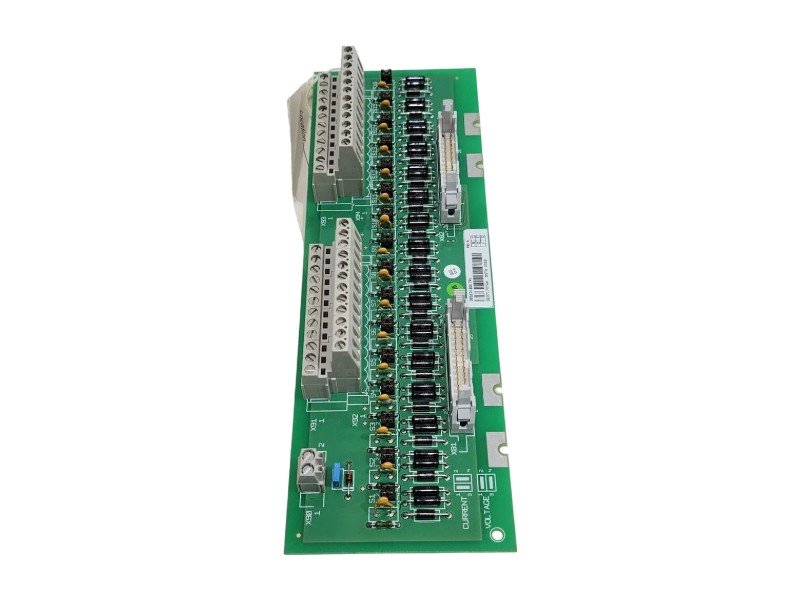

ABB DSTA 002A 3BSE015196R1 Connection Unit
Item Number:DSTA 002A 3BSE015196R1
Brand: ABB
Lead Time: In stock
Description:Connection Unit
Payment: T/T
Product Description
ABB DSTA 002A (3BSE015196R1) connection unit is a terminal module in the S100 I/O series. The ABB DSTA002A itself is not an active I/O processing module, but rather an interface and signal conditioning unit. This unit connects the signal lines of sensors and actuators to active S100 I/O modules.All field cables are secured to the terminals of the DSTA unit and then connected to the corresponding S100 I/O module via a backplane connector.
Replacement instructions: Replacement parts must be accompanied by an RMA number.
Function & Features
- Signal Channel Configuration: The basic configuration of the ABB DSTA 002A (3BSE015196R1) includes 8 differential channels + 8 single-ended channels, each equipped with independent fuse protection; this unit can be expanded to 32 single-ended channels in a redundant configuration.
- Signal Specifications: The ABB DSTA 002A (3BSE015196R1) has a resolution of up to 12 bits and supports 0~±10V voltage signals or 0~±20mA current signals (including a 250Ω shunt resistor with 0.05% accuracy). This specification can be used with two-wire transmitters.
- Variable Range: The ABB DSTA 002A (3BSE015196R1) supports voltage signals from 0 to ±10 V or current signals from 0 to ±20 mA (via a built-in 250Ω 0.05% high-precision sampling resistor).
Specifications
| Parameter | Details |
|---|---|
| Product Model | DSTA 002A |
| Part Number | 3BSE015196R1 |
| Product Type | S100 I/O System Connection Terminal Unit |
| Maximum I/O Capacity | Up to 5700 I/O points (for Advant Controller 450) |
| Maximum Local Distance | 12 meters |
| Maximum Fiber Distance | 500 meters |
| System Bus | FB+ |
| Depth | 328.5 mm |
| Height | 63 mm |
| Width | 90 mm |
| Weight | 0.26 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
