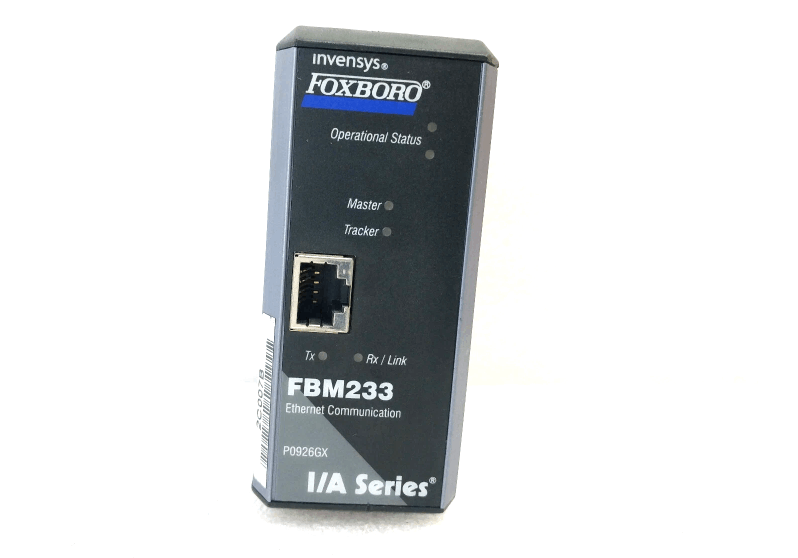

Foxboro FBM233 P0926GX Field Device System Integrator Module
Item Number: FBM233 P0926GX
Brand:Foxboro
Lead Time: In stock
Description: Field Device System Integrator Module
Payment: T/T
Product Description
Foxboro FBM233 P0926GX Field Device System Integrator Module (FDSI) provides an Ethernet interface between single- or dual-port field I/O devices and the I/A Series® system.
Each module has a 10/100Mbps copper Ethernet connection and a single RJ-45 connector on the front for docking with dual-port Ethernet devices, and can communicate with 1 or up to 64 external devices by connecting to an Ethernet switch or hub. A pair of modules can be combined to achieve fieldbus module (FBM) level redundancy, with one module acting as a master and the other as a tracker.
Function & Features
- Network transmission: FBM233 supports redundant 10Mbps or 100Mbps Ethernet.
- Device connection: FBM233 can communicate with up to 64 field devices.
- Driver: FBM233 is a general Ethernet hardware module. I/O software drivers can be downloaded from the protocol library. In addition to standard drivers, custom drivers can be developed and dynamically downloaded to the module.
- Configuration: FBM233 can set module ports and XML-based device configuration files through the FDSI configurator.
Specifications
|
Parameter |
Specification |
|
Model |
FBM233 |
|
Part Number |
P0926GX |
|
Input Voltage Range (Redundant) |
24 V dc ±5%, -10% |
|
Consumption |
7 W maximum, each module |
|
Dissipation |
7 W maximum, each module |
|
Temperature |
-20 to +70 °C (-4 to +158 °F) |
|
Height |
102 mm (4 in) 114 mm (4.5 in) including mounting lugs |
|
Width |
45 mm (1.75 in) |
|
Depth |
104 mm (4.11 in) |
Loading comments...
Foxboro FBM233 P0926GX Field Device System Integrator Module
Item Number: FBM233 P0926GX
Brand:Foxboro
Lead Time: In stock
Description: Field Device System Integrator Module
Payment: T/T
Product Description
Foxboro FBM233 P0926GX Field Device System Integrator Module (FDSI) provides an Ethernet interface between single- or dual-port field I/O devices and the I/A Series® system.
Each module has a 10/100Mbps copper Ethernet connection and a single RJ-45 connector on the front for docking with dual-port Ethernet devices, and can communicate with 1 or up to 64 external devices by connecting to an Ethernet switch or hub. A pair of modules can be combined to achieve fieldbus module (FBM) level redundancy, with one module acting as a master and the other as a tracker.
Function & Features
- Network transmission: FBM233 supports redundant 10Mbps or 100Mbps Ethernet.
- Device connection: FBM233 can communicate with up to 64 field devices.
- Driver: FBM233 is a general Ethernet hardware module. I/O software drivers can be downloaded from the protocol library. In addition to standard drivers, custom drivers can be developed and dynamically downloaded to the module.
- Configuration: FBM233 can set module ports and XML-based device configuration files through the FDSI configurator.
Specifications
|
Parameter |
Specification |
|
Model |
FBM233 |
|
Part Number |
P0926GX |
|
Input Voltage Range (Redundant) |
24 V dc ±5%, -10% |
|
Consumption |
7 W maximum, each module |
|
Dissipation |
7 W maximum, each module |
|
Temperature |
-20 to +70 °C (-4 to +158 °F) |
|
Height |
102 mm (4 in) 114 mm (4.5 in) including mounting lugs |
|
Width |
45 mm (1.75 in) |
|
Depth |
104 mm (4.11 in) |
