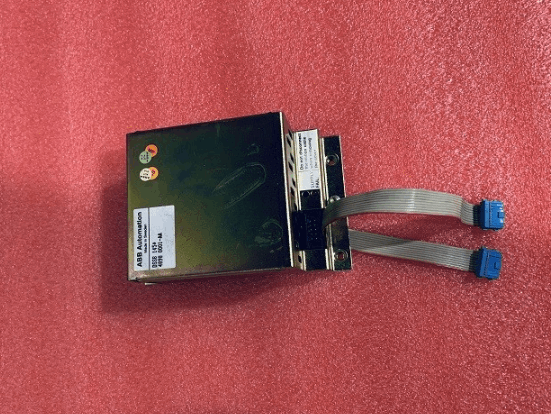

ABB DSSB 145 48980001-AA DC/DC Converter
Item Number:DSSB 145 48980001-AA
Brand: ABB
Lead Time: In stock
Description:DC/DC Converter
Payment: T/T
Product Description
ABB DSSB 145 48980001-AA is a DC/DC converter used to regulate and convert DC voltage. It converts input voltage to output voltage with over 90% efficiency. It supports both buck and boost modes. The DSSB 145 uses PMBus or analog signals to adjust the output voltage, providing power for ICs, control circuits, and other components.
Function & Features
- ABB DSSB145 is a switching DC-DC converter with a high conversion efficiency typically reaching 80%-90%. Compared to linear converters (which only have efficiencies of 30%-70%), it converts the input DC into a pulsed current using switching elements such as transistors or MOSFETs, and then reconstructs it into the desired DC voltage.
- ABB DSSB145 supports both step-down (output voltage lower than input) and step-up (output voltage higher than input) modes, achieving voltage control by adjusting the on/off cycle (duty cycle) of the switching elements.
- ABB DSSB145 can be used as a standalone module in combination with a rectifier circuit to output a single or multiple DC voltages. It can also be deployed in a distributed manner near the circuit.
Specifications
|
Description |
Details |
|
ABB Model Name |
DSSB 145 |
|
Part Number |
48980001-AA |
|
Gross Weight |
0.55 kg |
|
Net Depth/Length |
127.5 mm |
|
Net Height |
186 mm |
|
Net Width |
59 mm |
|
Net Weight |
0.7 kg |
|
Output Current |
10 A |
|
Conversion Efficiency |
≥92% |
|
Input Terminal |
Screw terminal, 2.5mm² wire diameter |
|
Output Terminal |
Screw terminal, 4.0mm² wire diameter |
