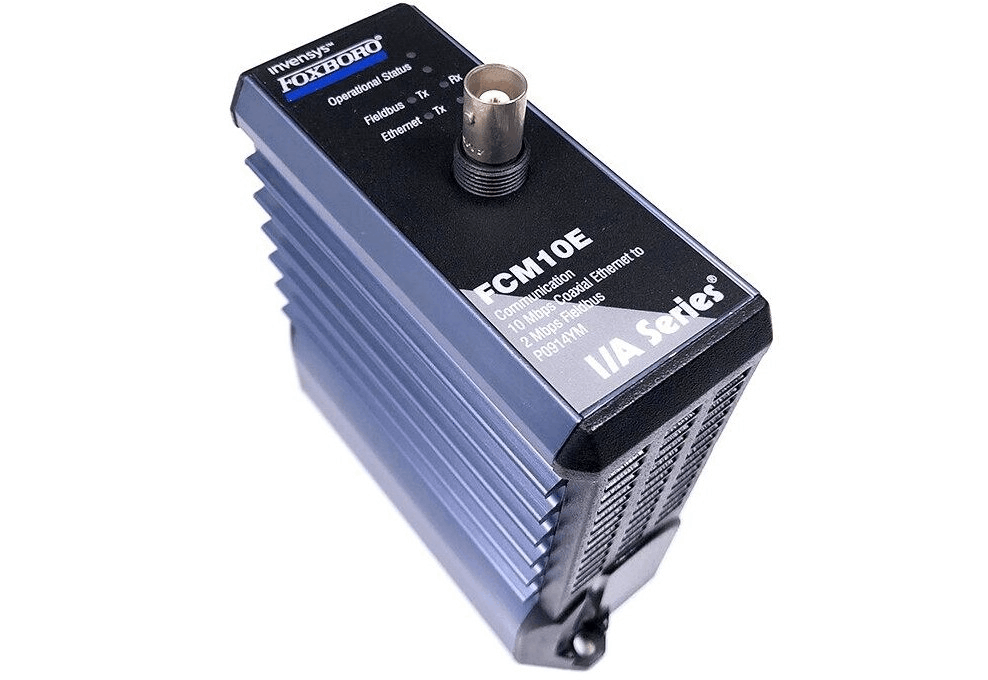

Foxboro FCM10E P0914YM Fieldbus Communications Module
Item Number: FCM10E P0914YM
Brand:Foxboro
Lead Time: In stock
Description: Fieldbus Communications Module
Payment: T/T
Product Description
Foxboro FCM10E P0914YM Fieldbus Communication Module is a communication interface that enables fieldbus modules (FBMs) to communicate with I/A Series control stations over a 10 Mbps Ethernet trunk fieldbus.
It converts 10 Mbps Ethernet signals (used by the control station) to 2 Mbps signals (used by the FBMs) and vice versa, and provides electrical isolation between the 10 Mbps Ethernet trunk fieldbus and the 2 Mbps module fieldbus.
Function & Features
- Bandwidth conversion: 10 Mbps Ethernet ↔ 2 Mbps modular fieldbus.
- Foxboro FCM10E Scale: Single module (non-redundant) or dual modules (redundant) can manage up to 30 FBMs. A single Ethernet backbone supports up to 30 pairs of FCM10Es.
- Hardware design: Extruded aluminum, ISA S71.04 compliant.
- Baseboard mounting: Foxboro FCM10E is rack-mountable,supporting up to 8 FBMs/FCMs per baseboard.
Specifications
|
Item |
Specification |
|
Model |
FCM10E |
| Part Number | P0914YM |
|
INPUT VOLTAGE RANGE (REDUNDANT) |
24 V dc +5%, -10% |
|
CONSUMPTION |
7 W (maximum) at 24 V dc |
|
HEAT DISSIPATION |
7 W (maximum) at 24 V dc |
|
0.75 g (5 to 200 Hz) |
|
|
HEIGHT |
102 mm (4 in); 114 mm (4.5 in) including mounting lugs |
|
WIDTH |
45 mm (1.75 in) |
|
DEPTH |
104 mm (4.11 in) |
