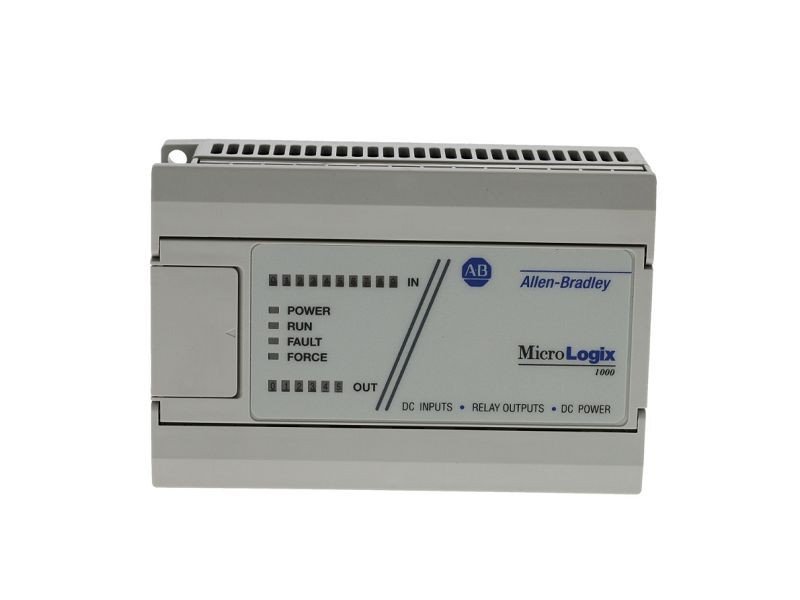

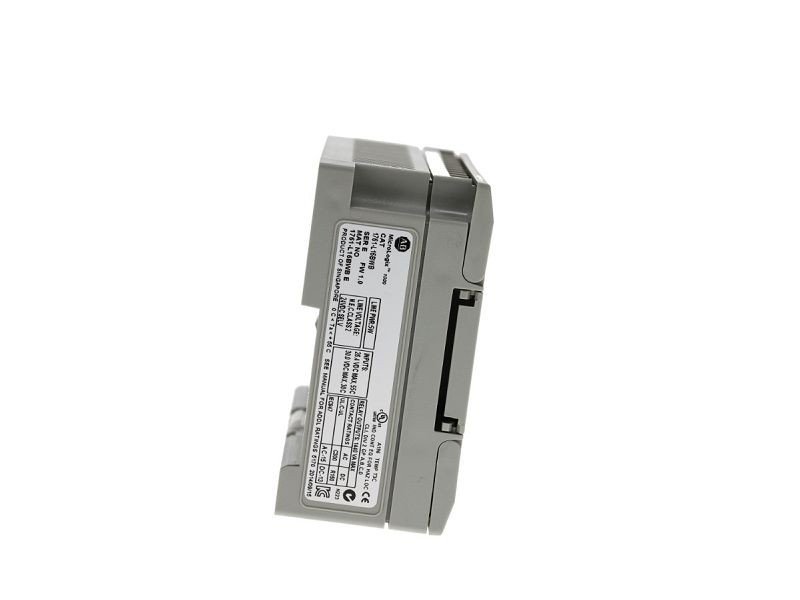

Allen-Bradley 1761-L16BWB SER E FRN 1.0 Micro Logix 1000 Controller Processor
Item Number：1761-L16BWB
Brand:Allen-Bradley
Lead Time: In stock
Description: SER E FRN 1.0 Micro Logix 1000 Controller Processor
Payment: T/T
Product Description
Allen-Bradley 1761-L16BWB is a MicroLogix 1000 series programmable logic controller (PLC). Its 24V DC user power supply is internally connected to the chassis ground. It is suitable for small processes or applications migrating from traditional hard-wired control systems to programmable electronic control systems. It has 16 I/O points, including 10 DC input points and 6 relay output points. It uses 16-bit signed integer control data; it has 1KB EEPROM and can store about 737 instruction words to meet the storage needs of small programs.
Fuctions & Features
- The 1761-L16BWB has 16 I/O points, including 10 DC input points and 6 relay output points.
- The 1761-L16BWB is equipped with an RS232 interface and supports Allen-Bradley's DF1 protocol. It can upload, download, monitor and debug programs through specific communication cables (such as 1761-CBL-PM02), and can also communicate with HMI, SCADA and third-party electronic devices (such as gateways and converters).
- The 1761-L16BWB has a 0-10V DC analog output range and 4-20 mA current output, using 16-bit signed integer control data.
- The 1761-L16BWB has a 1KB EEPROM that can store approximately 737 instruction words, which can meet the storage needs of small programs.
Specification
|
Model |
Allen-Bradley 1761-L16BWB |
|
Series |
MicroLogix 1000 |
|
Type |
|
|
Version |
SER E, Firmware Version FRN 1.0 |
|
Number of Input Points |
10 DC Input Points |
|
Number of Output Points |
6 Relay Output Points |
|
Input Voltage Range |
14 - 30V DC |
|
Input ON Voltage/Current |
24V DC, 8.0A |
|
Input Current Protection |
±50 mA |
|
Input Voltage Protection |
24V DC |
|
AC Output Voltage Range |
5 - 264V AC |
|
DC Output Voltage Range |
5 - 135V DC |
|
Relay Output Current Load Rating |
10mA |
|
Relay Output Response Time |
Approximately 10ms (ON to OFF/OFF to ON) |
|
Relay Contact Current Rating |
2.0A per point, Make Current Capacity 1.2A, Make Power 28VA |
|
Analog Output Range |
0 - 10V DC (Voltage), 4 - 20 mA (Current) |
|
Analog Output Control Data Type |
16-bit Signed Integer |
|
Analog Output Non-linearity |
0.02% |
|
Analog Output Response Time |
2.5ms |
|
Overall Accuracy of Analog Output |
0.2% |
|
Analog Output Drift |
±1.0% (15-bit Output Resolution) |
|
Analog Output Voltage Impedance |
1kΩ |
|
Analog Output Current Impedance |
0 - 500Ω |
|
Memory |
1KB EEPROM (Approximately 737 Instruction Words) |
|
Power Supply |
24V DC |
|
Maximum Input Voltage Rating |
26.4V DC (at an ambient temperature of 131°F or 55°C) |
|
Dimensions |
7.87in x 1.57in x 3.15in |
