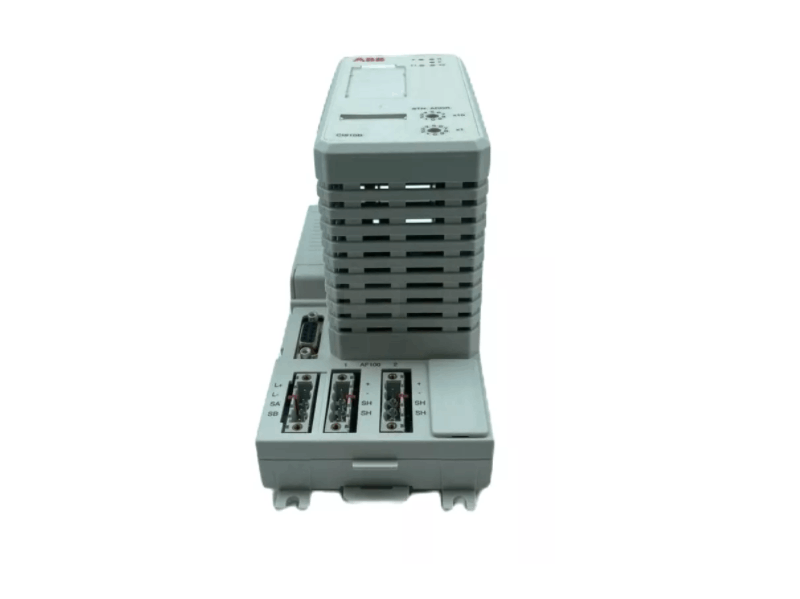

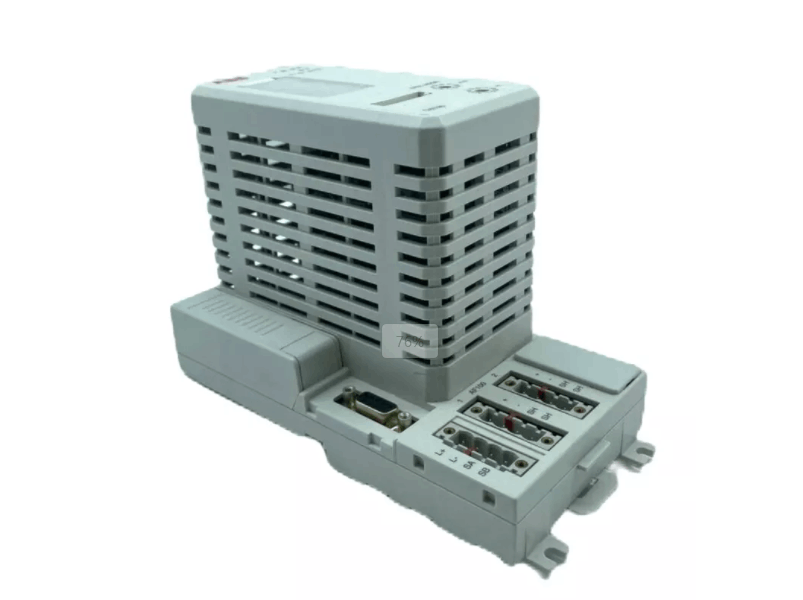

ABB CI810B 3BSE020520R1 AF100 Fieldbus Communication Interface

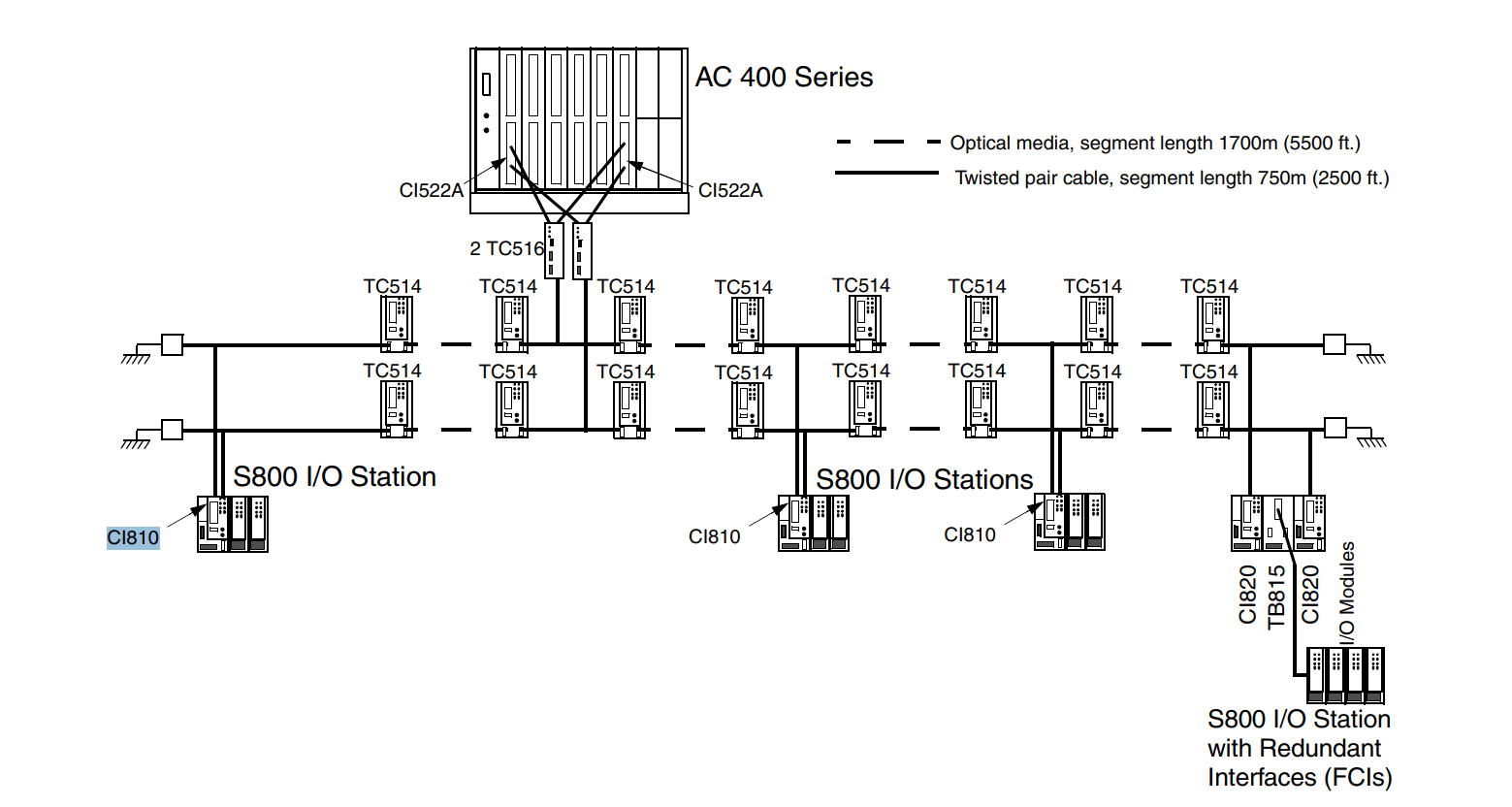

ABB CI810B 3BSE020520R1 is an AF100 fieldbus communication interface, which is used as a communication interface to connect Advant controllers (with Advant Fieldbus 100) and S800 I/O modules (with Modulebus). It includes 2 AF100 twisted pair modems, as well as 1 power connector (3BSC840098R1), 1 TB807 module bus terminator (3BSE008538R1), 2 terminal blocks (3BSC840098R1), and is pre-installed with basic system software version 1.5.

Its terminal board is used to connect most external connections and is grounded to the DIN rail through a metal spring connector. It has power supply and redundant power supply monitoring screw terminals, as well as Advant Fieldbus 100 twisted pair screw terminals.

Fuctions & Features

• Hardware configuration: Equipped with 2 AF100 twisted pair modems, providing specific communication connection capabilities.

• Component integration: Equipped with a variety of connection components to facilitate system construction and wiring.

• Software support: Loading basic system software version 1.5 to provide a software foundation for communication function implementation.

• Long-distance communication: Supports long-distance AF 100 communication.

• Power supply: Equipped with new power contacts.

Specification
