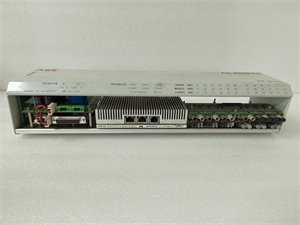

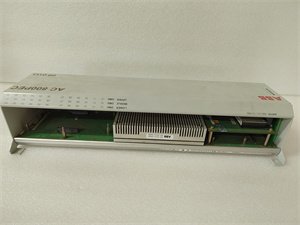

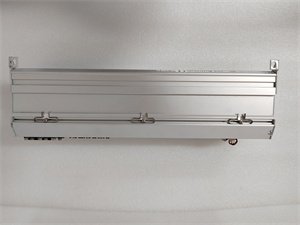

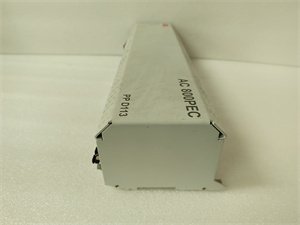

ABB 3BHE023784R1023 PPD113B01-10-150000 Medium-voltage power protection device

The 3BHE023784R1023 PPD113B01-10-150000 is a high-performance medium-voltage power protection device from ABB, engineered to safeguard electrical distribution networks in industrial and utility applications. As a key component in ABB’s PPD series, 3BHE023784R1023 PPD113B01-10-150000 combines advanced protection algorithms with robust construction, making it ideal for 10 kV systems handling up to 1500 A.

This device integrates multiple protection functions—including overcurrent, earth fault, and short-circuit detection—into a compact enclosure, ensuring rapid fault clearance to minimize equipment damage and downtime. Its compliance with IEC 61850 enables seamless integration with smart grid systems and SCADA platforms, providing real-time monitoring and remote control capabilities. Whether deployed in manufacturing plants, renewable energy facilities, or municipal power grids, 3BHE023784R1023 PPD113B01-10-150000 acts as a critical safeguard, balancing system reliability with operational efficiency.

Detailed parameter table

Core advantages and technical highlights

Advanced protection algorithms: 3BHE023784R1023 PPD113B01-10-150000 features adaptive protection logic that distinguishes between transient disturbances and genuine faults, reducing unnecessary tripping. For example, in a wind farm’s collection network, it can ignore momentary current spikes from turbine startups while swiftly isolating persistent short circuits, ensuring uninterrupted power generation. The device’s thermal overload protection uses dynamic modeling to account for ambient temperature, preventing false trips in hot environments.

High-speed fault clearance: With a breaking capacity of 31.5 kA and operating time of ≤20 ms, 3BHE023784R1023 PPD113B01-10-150000 limits fault duration, minimizing thermal and mechanical stress on transformers and cables. In a chemical plant’s 10 kV distribution system, this rapid response prevents arc flash incidents and reduces the risk of fire, enhancing workplace safety and protecting expensive equipment.

Smart grid integration: Equipped with IEC 61850 communication, 3BHE023784R1023 PPD113B01-10-150000 enables seamless data exchange with substation automation systems. It provides real-time fault location data, event logs, and operational metrics, allowing utility operators to pinpoint issues without physical inspections. In a smart city’s power network, this connectivity supports predictive maintenance, as the device can flag deteriorating insulation or contact wear before failures occur.

Rugged design for harsh environments: 3BHE023784R1023 PPD113B01-10-150000 operates reliably in temperatures from -25°C to 70°C, making it suitable for outdoor substations and industrial facilities with extreme temperature fluctuations. Its IP4X-rated enclosure protects against dust and water splashes, while the internal components are designed to withstand vibration (up to 5 g) and electromagnetic interference—critical for installations near heavy machinery or high-voltage lines.

Typical application scenarios

In a large-scale manufacturing complex, 3BHE023784R1023 PPD113B01-10-150000 protects the 10 kV feeder supplying power to a steel rolling mill. It monitors current and voltage in real time, detecting overloads caused by simultaneous motor startups and isolating faults in the mill’s drive system. The IEC 61850 interface sends data to the plant’s energy management system, enabling operators to track power usage and optimize load distribution, reducing peak demand charges.

In a solar power plant, 3BHE023784R1023 PPD113B01-10-150000 safeguards the 10 kV collection network connecting inverter stations to the main transformer. It differentiates between temporary faults (e.g., lightning-induced surges) and permanent issues (e.g., cable damage), allowing automatic reclosure for transient events to maximize energy production. The device’s earth fault protection is critical in ungrounded solar systems, preventing sustained faults that could damage inverters and solar panels.

Installation, commissioning and maintenance instructions

Installation preparation: Mount 3BHE023784R1023 PPD113B01-10-150000 in a switchgear panel with adequate ventilation, ensuring ambient temperature remains within -25°C to 70°C. Verify the 10 kV busbars are de-energized and grounded before wiring. Use copper conductors (minimum 50 mm²) for main current connections, torqued to 45 Nm. Required tools include a high-voltage insulation tester, torque wrench, and laptop with ABB’s Protection Suite software. Install surge arrestors upstream to protect against voltage transients, and ensure the device is earthed via the dedicated terminal.

Maintenance suggestions: Inspect 3BHE023784R1023 PPD113B01-10-150000 annually for loose connections and signs of overheating (discoloration). Test protection functions quarterly using secondary injection, verifying trip times are within specifications. Clean the ventilation grilles monthly to prevent dust buildup, which can cause overheating. Check communication links via IEC 61850 to ensure data transmission is uninterrupted. If the device fails to trip during testing, verify settings before replacing components—always use ABB-certified spares to maintain protection integrity.
