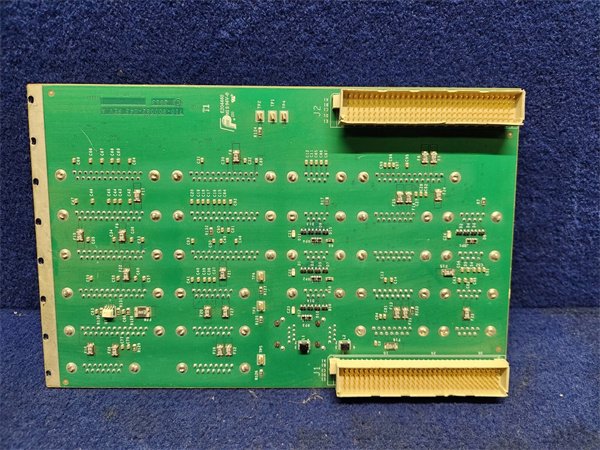

LAM 810-800082-043 High-Voltage Power Supply Module

The LAM 810-800082-043 is a precision high-voltage power supply module developed by LAM Research, a global pioneer in semiconductor manufacturing equipment. Specifically engineered for integration into LAM’s plasma-based processing systems—including Centura® Etch, Sym3® Deposition, and Versys® Metal systems—this module serves as the core power source for generating and sustaining stable plasma during wafer fabrication.

As a flagship model in LAM’s High-Voltage Power Series, the LAM 810-800082-043 is optimized for advanced semiconductor process nodes (down to 3nm) where plasma density and stability directly impact device performance. Its primary function is to deliver highly regulated DC voltage (0–5000V) and current (0–100mA) to plasma chambers, ensuring consistent ion energy and reaction conditions across every wafer. In automation systems, the LAM 810-800082-043 acts as a critical link between the system controller and plasma hardware, enabling real-time adjustments to power parameters and proactive fault detection—key to minimizing process drift and maximizing fab yield.

Detailed Parameter Table

Core Advantages and Technical Highlights

Ultra-Precise Voltage Regulation: The LAM 810-800082-043 achieves ±0.05% voltage regulation accuracy at full load, a level of precision unmatched by many competing modules. This is enabled by a proprietary closed-loop feedback system that samples output voltage 10,000 times per second, correcting deviations in under 1ms—critical for 3nm/5nm nodes where plasma instability can cause micro-etching defects.

Semiconductor-Grade Durability: Built to comply with SEMI S2/S8/S14 standards, the LAM 810-800082-043 features a ruggedized design that withstands the harsh conditions of semiconductor fabs. Its internal components are coated with a corrosion-resistant film to protect against low-level process gas leaks (e.g., fluorine, chlorine), while integrated heat sinks and variable-speed fans maintain optimal operating temperature—extending the module’s mean time between failures (MTBF) to over 150,000 hours.

Multi-Protocol Connectivity: The LAM 810-800082-043 supports three industry-standard communication protocols (Modbus TCP/IP, Ethernet/IP, Modbus RTU), enabling seamless integration with LAM’s native controllers and third-party automation platforms (e.g., Rockwell Allen-Bradley, Siemens Sinumerik). This flexibility eliminates compatibility barriers, allowing fabs to upgrade legacy systems with the module without replacing entire control architectures.

Proactive Fault Protection: The module includes triple-layer protection (over-voltage, over-current, over-temperature) with customizable thresholds. When a fault is detected, the LAM 810-800082-043 immediately shuts down output, logs the event with time stamps and error codes, and sends alerts via Ethernet/RS-485—reducing the risk of chamber damage or wafer scrapping. Unlike basic modules that require manual resets, it can automatically restart (with user approval) once the fault is resolved, minimizing downtime.

Typical Application Scenarios

The LAM 810-800082-043 is indispensable in semiconductor fabs for plasma-centric processes, with two primary high-impact applications: advanced plasma etching and high-aspect-ratio (HAR) hole formation.

In plasma etching (e.g., for logic or memory device patterning), the LAM 810-800082-043 supplies regulated high voltage to the chamber’s upper electrode, controlling plasma density and ion energy. For 3nm process nodes, this ensures that etched features (e.g., gate trenches) have vertical sidewalls and minimal line-edge roughness—critical for reducing device leakage current. Fabs using LAM’s Centura® Etch systems rely on the LAM 810-800082-043 to maintain consistent plasma conditions across 200mm/300mm wafers, even during 24/7 high-volume production.

In HAR hole formation (used in 3D NAND or DRAM devices), the LAM 810-800082-043 delivers stable low-current (20–50mA) high voltage (3500–4500V) to etch deep, narrow holes (aspect ratios >100:1) in dielectric layers. Its precise current control prevents hole tapering or bottom rounding, while its over-voltage protection safeguards the expensive chamber electrodes from damage. The module’s compliance with SEMI S14 (electromagnetic compatibility) also ensures it does not interfere with sensitive wafer metrology tools in Class 1 cleanrooms.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the LAM 810-800082-043, ensure the 19-inch rack meets weight requirements (12kg module + cooling) and has adequate ventilation (minimum 10cm clearance above/below for airflow). Required tools include a torque wrench (for rack mounting, 2.5 N·m torque), multimeter (to verify input voltage), and ESD-safe gloves/wristbands. Safety precautions: Disconnect all AC power to the rack before wiring; use insulated tools when handling high-voltage terminals; and confirm the module’s ground connection (≥10AWG wire) is secure to prevent electrical hazards. Avoid installing near process gas lines to minimize corrosion risk.

Maintenance Suggestions: For daily maintenance, check the LAM 810-800082-043’s front-panel LED indicators (green = normal, amber = warning, red = fault) and clean air intake filters weekly (use compressed air at <50psi). Every 12 months, perform a calibration check using LAM’s CalibrateHV™ tool to verify voltage regulation accuracy—this ensures compliance with SEMI process standards. If a fault occurs (e.g., over-temperature), first review the module’s internal log via Ethernet to identify the root cause (e.g., clogged filter, high load). When replacing parts (e.g., cooling fans), use only LAM-approved components; non-approved parts may compromise safety or void the warranty.
