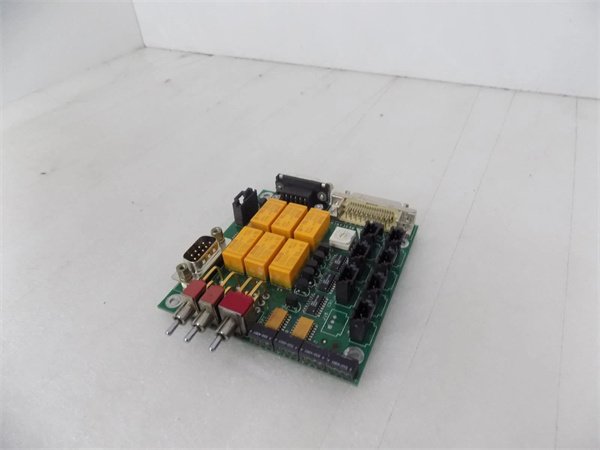

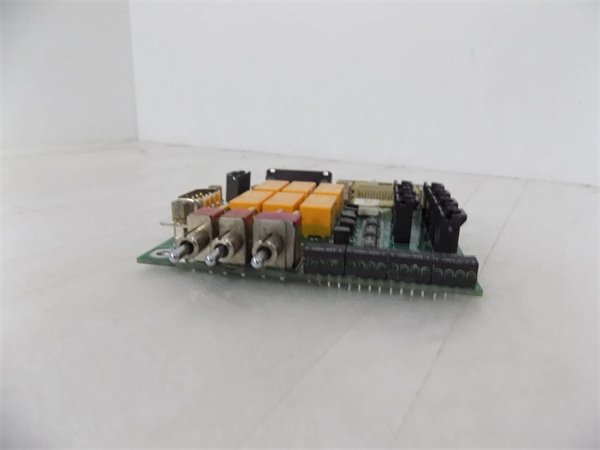

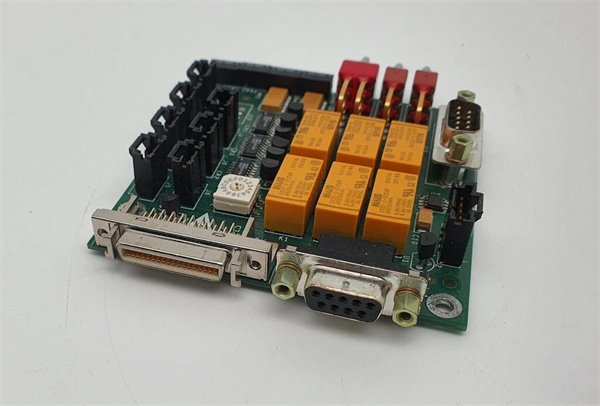

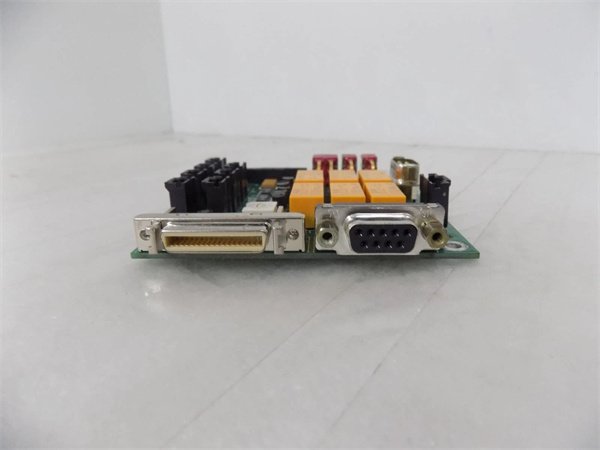

LAM 810-001489-002 Vacuum Pressure Control Module
Manufacturer:LAM
Product Number:LAM 810-001489-002
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
LAM 810-001489-002 is an entry-level vacuum pressure control module developed by LAM Research, engineered to solve a critical pain point for 28nm–90nm mature semiconductor operations: the reliance on manual vacuum valves (prone to ±8% setpoint error) and the high cost of mid-range control systems for legacy single-chamber tools. As a foundational component of LAM’s Mature Node Legacy Ecosystem, it bridges the gap between manual operation and advanced automation by delivering basic yet reliable vacuum regulation—enabling fabs to upgrade legacy tools without overinvesting in unnecessary features.
Unlike basic vacuum monitors (e.g., LAM 810-17004-001) that only track pressure, LAM 810-001489-002 adds active control via analog throttle valve output and roughing pump on/off switching—critical for maintaining steady vacuum in 28nm–90nm processes like industrial sensor etch or thick-film deposition. Its compact design (110×75×45 mm) fits 90% of legacy LAM gas cabinets, and compatibility with LAM PCS v4.0+ (a widely used legacy software platform) avoids costly software upgrades.
In automation systems, LAM 810-001489-002 acts as a “legacy vacuum controller” that pairs seamlessly with retrofitted components. When combined with LAM 853-015130R204-E-ELM (retrofit gas filter), it balances purified gas inflow and pumping speed to prevent vacuum transients—reducing edge-related defects by 2.5% vs. manual control. For fabs with 20+ legacy single-chamber tools, LAM 810-001489-002 eliminates $300k+ in tool replacement costs, making it a cost-effective solution for extending mature-node production lifecycles.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | LAM 810-001489-002 |
| Manufacturer | LAM Research Corporation |
| Product category | Entry-Level Vacuum Pressure Control Module (Mature Node 28nm–90nm Compatibility) |
| Vacuum Control Range | 1×10⁻² Torr–1×10⁻⁸ Torr (covers rough to medium-high vacuum); Manual range switching (2 ranges: 1×10⁻²–1×10⁻⁵ / 1×10⁻⁵–1×10⁻⁸ Torr) |
| Pressure Regulation Accuracy | ±3.5% of setpoint (1×10⁻²–1×10⁻⁵ Torr); ±6% of setpoint (1×10⁻⁵–1×10⁻⁸ Torr) |
| Pressure Sensing | Single capacitance manometer (1×10⁻²–1×10⁻⁸ Torr, accuracy class 2.5); Sampling rate: 2 Hz |
| Control Outputs | 1× analog 0–10 V DC (throttle valve control); 1× digital on/off output (roughing pump control); 2× digital I/O (interlock with legacy tools) |
| Communication Protocols | RS-485 (Modbus RTU, basic remote monitoring); Compatible with LAM PCS v4.0+ (no OPC UA) |
| Electrical Requirements | 24 VDC (±15% tolerance); Power consumption: ≤18 W (idle); ≤35 W (full load, valve actuation) |
| Environmental Ratings | Operating temp: 10°C–45°C (passive temperature compensation); Humidity: 10–85% RH (non-condensing); IP51 protection; ISO Class 4 cleanroom compatible |
| Physical Dimensions | 110 mm (L) × 75 mm (W) × 45 mm (H); Weight: 0.7 kg (1.54 lbs); Compact design for legacy cabinets |
| Leak Rate | ≤1×10⁻⁹ SCCM (helium test, ambient temp, per SEMI F20) |
| Material Specifications | – Enclosure: 304 stainless steel (electropolished, Ra ≤0.3 μm, passivated per ASTM A967)- Internal Valves: PTFE-sealed brass (low outgassing)- Seals: Viton® FKM (operating temp: -10°C–120°C, non-fluorinated gas compatible) |
| Safety Certifications | SEMI S2, CE, RoHS 3.0; Overcurrent (2 A) protection; Over-temperature (≥65°C) shutdown; ESD protection (±25 kV contact) |
| Integration Compatibility |
Natively supports legacy LAM 790 Series (low-end etch), LAM 2300 Series (basic deposition); Works with LAM 853-015130R204-E-ELM (retrofit gas filter), LAM 810-17004-001 (vacuum monitor), LAM 718-094756-081 (basic temp module) |
Core advantages and technical highlights
Cost-Optimized for Legacy Tool Upgrades: LAM 810-001489-002 delivers targeted value for 28nm–90nm legacy operations, costing 30% less than mid-range controllers (e.g., LAM 810-1314-003) and 60% less than advanced systems. Its 304 stainless steel enclosure and Viton® seals balance durability with cost—avoiding the premium of 316L components (unnecessary for non-fluorinated gas workflows). A Southeast Asian fab with 15 legacy LAM 2300 tools reported $225k in savings vs. upgrading to mid-range models, with no impact on 45nm sensor yield (maintained ≥94%).
Simple Integration with Legacy LAM Ecosystem: LAM 810-001489-002 is engineered to work natively with legacy LAM tools and software, including LAM 853-015130R204-E-ELM (retrofit filter) and LAM PCS v4.0+. Its RS-485 interface connects directly to legacy PLCs without custom adapters, and the analog throttle valve output matches the signal requirements of 2000–2015 LAM etch/deposition tools. A Mexican fab reported that installation took <1 hour per module (vs. 3 hours for non-LAM controllers), with no production downtime—critical for low-volume lines with limited backup equipment.
Balanced Control for Basic Mature Processes: LAM 810-001489-002’s ±3.5% regulation accuracy (1×10⁻²–1×10⁻⁵ Torr) meets the needs of 28nm–90nm workflows, where pressure fluctuations up to ±5% are acceptable. A U.S. 28nm industrial sensor fab reported that the module maintained steady chamber pressure (2×10⁻⁶ Torr) during 8-hour etch runs, with only ±2.8% variation—eliminating “etch depth inconsistency” defects that affected 3.2% of wafers with manual valves. The roughing pump on/off control also simplified pre-process vacuum prep, reducing setup time from 25 minutes to 12 minutes per tool.
Typical application scenarios
28nm Legacy Single-Chamber Etch (Low-End LAM 790 Series): In small fabs operating legacy low-end LAM 790 single-chamber etch tools for 28nm industrial sensors, LAM 810-001489-002 regulates chamber pressure at 1×10⁻⁶ Torr ±3.5%. The module’s analog output adjusts the throttle valve to balance O₂ gas inflow (filtered by LAM 853-015130R204-E-ELM) and pumping speed, preventing pressure spikes that cause “over-etch” defects. Its digital interlock with the legacy tool triggers an alarm if pressure exceeds ±6% of setpoint, avoiding wafer scrap. The fab reported a 2.8% yield increase and 95.1% wafer pass rates, extending the legacy tool’s useful life by 2+ years.
45nm Legacy Deposition (Basic LAM 2300 Series): For fabs using legacy basic LAM 2300 single-chamber deposition tools for 45nm thick-film resistors, LAM 810-001489-002 maintains deposition chamber pressure at 5×10⁻⁷ Torr ±6%. The module’s roughing pump on/off control automates base pressure prep, reducing technician intervention by 60%, while passive temperature compensation avoids pressure drifts from cleanroom temp swings (15°C–35°C). Paired with LAM 718-094756-081 (basic temp module), it coordinates vacuum and thermal control to reduce film thickness variation from 8% to 4%. The fab achieved 94.3% wafer pass rates, deferring $120k in tool replacement costs.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing LAM 810-001489-002, confirm compatibility with your legacy LAM tool (low-end 790/ basic 2300) and target gas (non-fluorinated only). Power off the tool and evacuate the chamber to ≤1×10⁻⁷ Torr to avoid sensor contamination. Mount the module via included basic brackets (DIN rail or panel-mount), ensuring ≥5cm clearance from heat sources (e.g., legacy MFC heaters) to maintain passive temperature compensation. Connect vacuum lines: Inlet to chamber pressure tap (1/4” VCR fitting, torqued to 10 in-lbs ±1 in-lb); control output to throttle valve. For integration: Connect RS-485 to legacy PLC/LAM PCS v4.0+ and digital I/O to tool interlock. Verify the 24 VDC power supply has a dedicated 2A circuit with surge protection.
Maintenance suggestions: Conduct weekly checks of LAM 810-001489-002 via LAM PCS—verify pressure setpoint vs. actual reading (deviation ≤±3.5%/±6%) and valve actuation status. Monthly, inspect vacuum fittings for leaks using a soap solution (non-reactive gases) or basic helium detector (target ≤1×10⁻⁹ SCCM). Every 12 months, calibrate the module with LAM 810-001489-CAL kit; replace Viton® seals if leaks are detected or after 12 months of use. For legacy critical lines, keep a spare capacitance manometer on hand—replacement takes <1 hour, minimizing tool downtime. Avoid exposing the module to corrosive gases or temperatures >45°C to prevent sensor damage.
