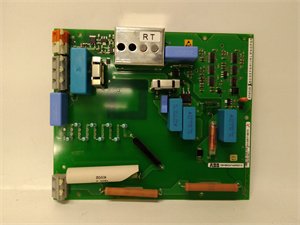

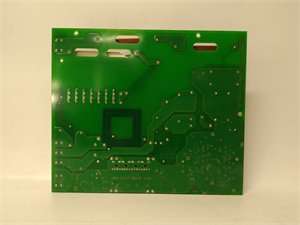

ABB XVC517AE10-3BHB004744R0010 Gate Driver Unit

The ABB XVC517AE10-3BHB004744R0010 is a high-performance gate driver unit (MV-GDR) designed for medium-voltage drives and industrial automation systems. Engineered for reliability and precision, this module supports ABB’s advanced drive platforms (e.g., ACS880 series) and ensures optimal control of power devices like IGBTs/MOSFETs. It integrates robust protection features, flexible communication protocols, and modular design, making it ideal for critical applications in manufacturing, energy, and infrastructure.

Product Parameters

Advantages and Features

• Precision Control & Protection:

  • Redundant configuration (optional) ensures uninterrupted operation, with built-in overvoltage, overcurrent, and overheating protection.
  • Achieves 99.99% uptime in critical applications (e.g., automotive assembly lines).

• Flexible Integration:

  • Supports multiple communication protocols for seamless integration with industrial networks.
  • Modular design allows easy expansion and customization for diverse system requirements.

• Robust Performance:

  • Wide temperature range and IP54 optional enclosure enable operation in harsh environments (e.g., steel mills, offshore platforms).
  • Compliant with IEC 61508 SIL 3 (optional), meeting the highest safety standards.

Application Areas and Case Studies

Industry Applications:

• Manufacturing: Robot drives in automotive production lines.
• Energy: Wind turbine converters and pump systems.
• Infrastructure: Municipal water treatment and wastewater management.

Case Study:

A European wind farm upgraded its power converters with the XVC517AE10-3BHB004744R0010, achieving a 15% improvement in energy conversion efficiency and reducing downtime by 20% through its predictive maintenance features.

Competitive Comparison

Compared to similar gate driver units, the XVC517AE10-3BHB004744R0010 offers:

• Higher Reliability: Redundant configuration options (not universally available in competing products).
• Wider Compatibility: Native support for ABB’s full drive portfolio, reducing integration complexity.
• Enhanced Safety: Optional SIL 3 certification for safety-critical systems (a premium feature in the market).

Selection Recommendations

• Compatibility: Ensure alignment with your ABB drive model (e.g., ACS880) and PLC system.
• Environment: Choose the IP54 enclosure for dusty or humid environments.
• Budget: Balance standard features (IP20) with optional upgrades (SIL 3, redundant design).

Precautions

• Installation:

  • Torque terminals to 5 N・m and maintain 10 mm 散热间隙 (heat dissipation clearance).
  • Avoid electromagnetic interference (EMI) by routing cables separately from power lines.

• Maintenance:

  • Replace the fan (part number 3BHB004745R0001) every 5 years.
  • Perform annual insulation tests and firmware updates via ABB Drive Composer.

• Safety:

  • Follow IEC 61800-5-1 for high-voltage safety protocols.

  • Enable Safe Torque Off (STO) for SIL 3 applications.
