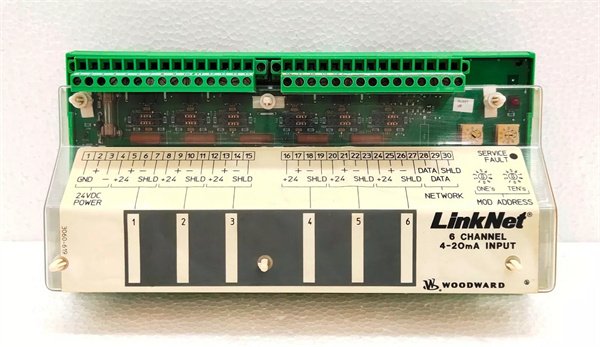

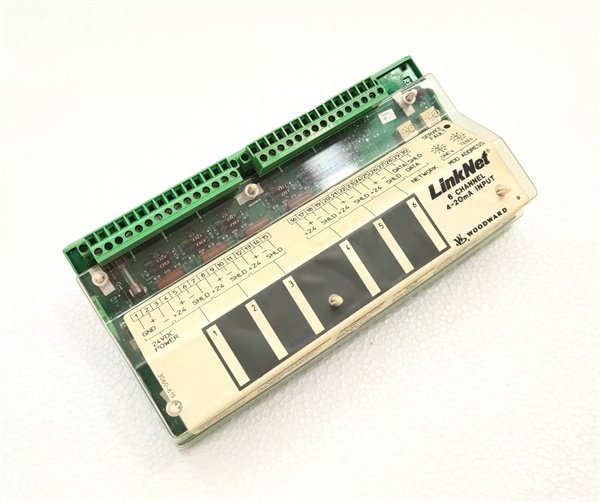

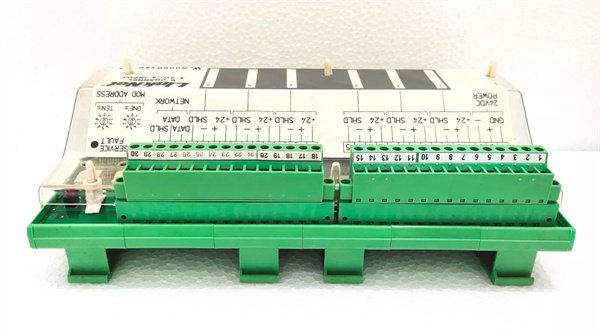

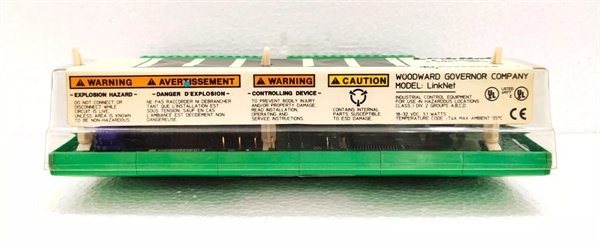

Woodward 9905-969 6-Channel Analog Input Module
Manufacturer:Woodward
Product Number:Woodward 9905-969
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Woodward 9905-969 is a high-performance analog input module designed for industrial automation systems, offering 6 channels for precise signal acquisition. Ideal for applications in power generation, oil & gas, and marine environments, this module supports 4–20 mA analog current inputs with 12-bit resolution and ±0.1% accuracy, ensuring reliable measurement of parameters like pressure, temperature, and flow. Built for durability, it operates across a wide temperature range (-40°C to +70°C) and features IP20 protection against dust and limited water exposure. Its Modbus RTU compatibility simplifies integration with control systems, enabling seamless data communication.
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Module Type | 6-Channel Analog Input |
| Input Range | 4–20 mA DC |
| Supply Voltage | 24 VDC |
| Resolution | 12 bits |
| Accuracy | ±0.1% full scale |
| Communication | Modbus RTU |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +125°C |
| Dimensions | 22 x 11.5 x 7 cm |
| Weight | 0.54 kg |
Advantages and Features
- High Precision: 12-bit resolution and ±0.1% accuracy ensure reliable data acquisition.
- Wide Environmental Range: Operates in extreme temperatures and IP20-rated conditions.
- Flexible Connectivity: Modbus RTU support for easy integration with PLCs and control systems.
- Space-Saving Design: Compact form factor suitable for DIN rail mounting.
- Low Power Consumption: Efficient 24 VDC operation reduces energy costs.
Application Fields and Case Studies
- Power Generation: Monitors steam turbine performance in thermal power plants.
- Oil & Gas: Tracks pressure in drilling platforms and refineries.
- Manufacturing: Controls conveyor systems in automotive assembly lines.
- Case Study: A North American power plant reduced maintenance costs by 20% using the 9905-969 to monitor boiler pressure fluctuations.
Competitor Comparison
The 9905-969 stands out with its combination of 6-channel density, wide temperature tolerance, and Modbus RTU compatibility, surpassing many modules that require additional signal converters or offer limited environmental ratings.
Selection Recommendations
- Signal Requirements: Confirm 4–20 mA input compatibility with sensors.
- Environmental Conditions: Consider optional enclosures for outdoor or corrosive environments.
- System Integration: Ensure Modbus RTU support matches your control network.
- Redundancy: Pair with backup modules for critical operations.
Precautions
- ESD Protection: Use antistatic measures during installation.
- Voltage Stability: Maintain a clean 24 VDC power supply to avoid signal errors.
- Wiring: Shield cables to minimize electromagnetic interference.
- Firmware Updates: Regularly update firmware for optimal performance.
