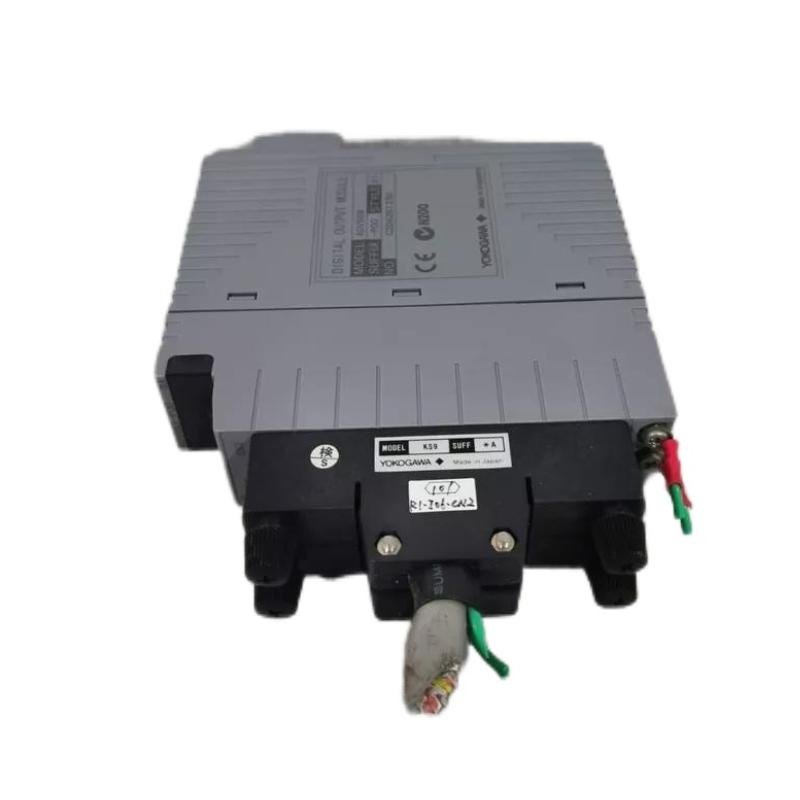

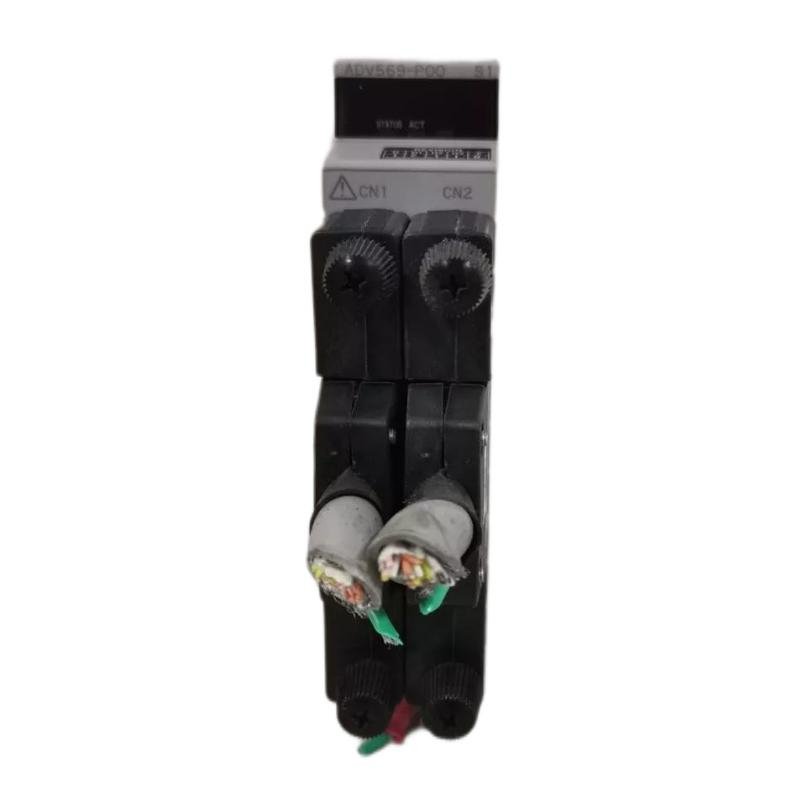

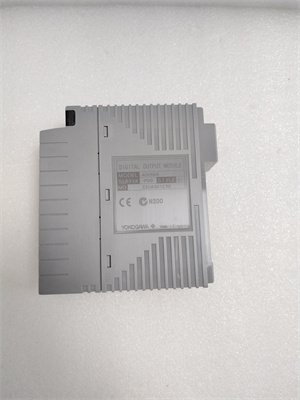

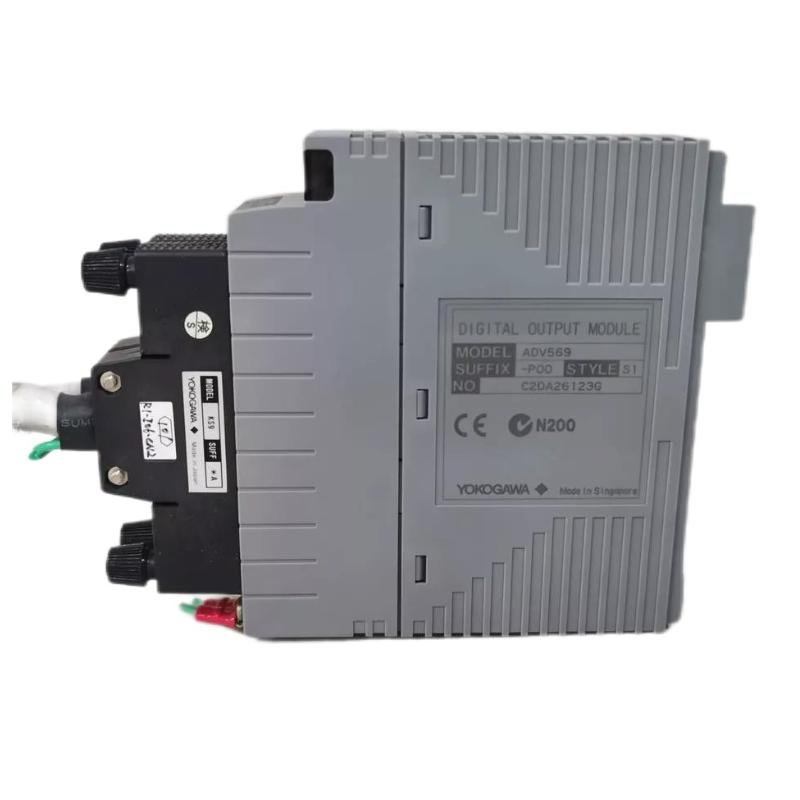

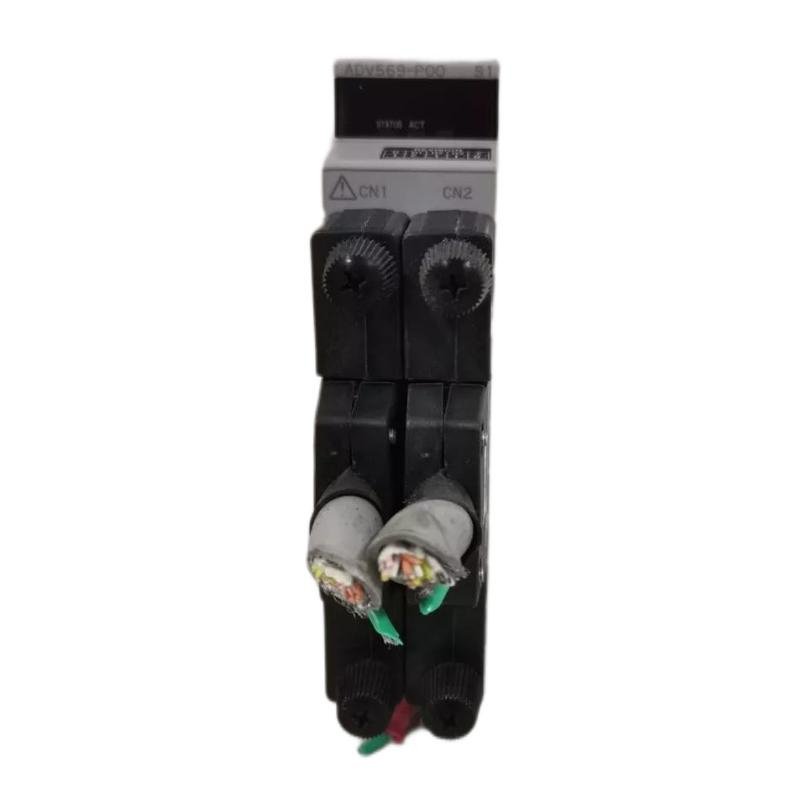

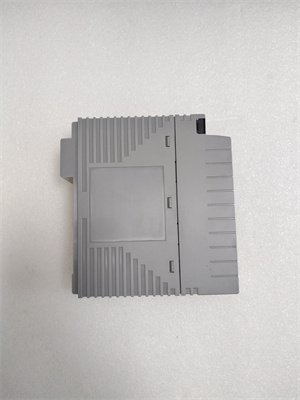

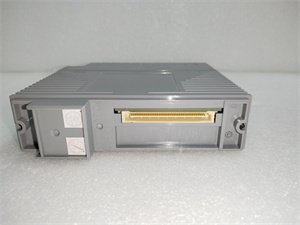

Yokogawa ADV569-P00 digital output module
Manufacturer: Yokogawa
Product Number: ADV569-P00
Category: Digital Output Module
Number of Channels: 64
Output Type: Isolated 24 V DC
Application: Field I/O racks or node units within industrial DCS and SIS requiring high-density digital output
Product Description
The Yokogawa ADV569-P00 is a high-density 64-channel isolated digital output module designed for use in field I/O racks or node units within industrial distributed control systems (DCS) and safety instrumented systems (SIS).
It provides 24 V DC current-sink type outputs suitable for driving solenoids, relays, indicator lamps, and other field devices.
The “P00” suffix designates the basic variant that provides standard ON/OFF digital output functionality, without pulse-width or time-proportioning control.
This module offers compact size, high reliability, and isolation for harsh industrial environments, making it ideal for applications requiring large-scale digital output control.
Technical Specifications
| Parameter | Specification / Description |
|---|---|
| Model Number | ADV569-P00 |
| Product Family | Yokogawa ADV569 Digital Output Module |
| Number of Output Channels | 64 channels |
| Rated Applied Field Voltage | 24 V DC |
| Field Supply Voltage Range | 20.4 V DC to 26.4 V DC |
| Output Type | Current-sink transistor output |
| Maximum Load Current per Channel | 100 mA per channel |
| Output ON Voltage (max) | ≤ 2 V DC |
| Leakage Current (OFF state) | ≤ 0.1 mA |
| Output Response Time | ≤ 16 ms (typical) |
| Withstanding Voltage |
2 kV AC between output and system (1 minute) 500 V AC between commons (every 16 channels) |
| Pulse Width / Time-Proportional Output | Not supported (P00 basic version) |
| Isolation Configuration | Common negative side every 16 channels |
| Operating Ambient Temperature | –20 °C to +70 °C |
| Relative Humidity | Up to 95 % (non-condensing) |
| Mounting Method | Plug-in module for Yokogawa field I/O rack or node base |
| Dimensions (Approx.) | Height ≈ 130 mm × Depth ≈ 100 mm × Width ≈ 30 mm |
| Weight (Approx.) | 0.30 kg |
| Power Consumption | Approx. 570 mA @ 5 V DC |
| Connection Type | KS-type or dedicated field wiring adapter (depending on rack type) |
