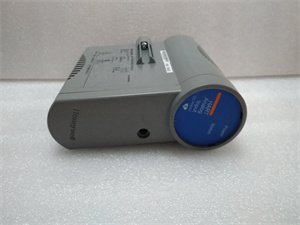

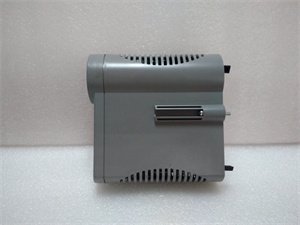

Honeywell CC-PAIH01 HART–enabled analog input module

The Honeywell CC – PAIH01 is a sophisticated HART – enabled analog input module, purpose – built for industrial automation systems. As an integral part of Honeywell’s extensive product portfolio, it plays a crucial role in modern industrial control environments.

This module is designed to receive analog signals from various industrial sensors. These sensors could be monitoring critical parameters like temperature, pressure, or flow rate in industrial processes. Once the analog signals are received, the CC – PAIH01 converts them into digital signals that can be easily processed by Programmable Logic Controllers (PLCs) or Distributed Control Systems (DCS). By performing this conversion, it enables real – time monitoring and precise control of industrial processes, ensuring seamless operations and high – quality output.

Detailed parameter table

HART protocol support

The CC – PAIH01 stands out with its support for the HART protocol. This allows for two – way communication with HART – enabled smart instruments. It not only facilitates the transfer of analog data but also enables the configuration and diagnostics of these instruments. For example, in a large – scale industrial plant, operators can remotely access the status of sensors and make necessary adjustments, reducing the need for on – site inspections and maintenance time.

Multiple input channels

Featuring 16 channels, the module has the capacity to simultaneously connect to multiple sensors. This significantly increases data acquisition efficiency. In a complex industrial process where numerous parameters need to be monitored, such as in a chemical plant with multiple reaction vessels, the CC – PAIH01 can handle all the sensor inputs, providing a comprehensive view of the process in real – time.

Versatile input types

It is compatible with a wide range of analog input types, including 4 – 20 mA, 1 – 5 V, and 0 – 5 V. This versatility makes it suitable for use with various sensors commonly found in industrial settings. Whether it’s a current – outputting pressure sensor or a voltage – based temperature sensor, the CC – PAIH01 can accurately capture the signals, ensuring seamless integration with different types of industrial equipment.

Robust design

Engineered with a robust build, the CC – PAIH01 can withstand harsh industrial environments. It is resistant to temperature fluctuations, dust, and humidity, which are common in manufacturing plants, refineries, and power generation facilities. This durability ensures stable performance over an extended period, minimizing downtime and maintenance costs.

Chemical industry

In chemical manufacturing, precise control of process parameters is crucial for product quality and safety. The CC – PAIH01 can be connected to sensors monitoring temperature, pressure, and chemical composition in reactors and pipelines. For instance, in a polymerization process, accurate temperature control is essential. The module’s ability to precisely convert analog signals from temperature sensors enables the DCS to adjust the cooling or heating systems in real – time, maintaining the optimal reaction conditions.

Power generation

Power plants, whether thermal, hydro, or wind, rely on accurate monitoring of various parameters. The CC – PAIH01 can be used to connect to sensors that measure steam temperature and pressure in thermal plants, water level and flow rate in hydro plants, or wind speed and direction in wind farms. The accurate data it provides helps in optimizing power generation efficiency, ensuring stable power supply, and preventing equipment failures.

Food and beverage industry

In food and beverage production, maintaining consistent quality is key. The module can be connected to sensors that monitor parameters such as liquid levels in tanks, temperature during pasteurization, and pressure in filling machines. By accurately converting these analog signals, it enables the control system to ensure that each product batch meets the required quality standards, reducing product waste and enhancing customer satisfaction.

Installation preparation

Before installing the Honeywell CC – PAIH01, ensure the installation environment meets the module’s requirements. The ambient temperature should be within the specified operating range, and the area should be relatively free of excessive dust and moisture. Gather the necessary installation tools, such as a screwdriver for DIN – rail mounting. Thoroughly inspect the module for any signs of damage during transportation. When making electrical connections, strictly follow the wiring diagrams provided in the product manual. Connect the 24 VDC power supply correctly and ensure proper grounding to protect against electrical malfunctions.

Maintenance suggestions

Regularly check the physical condition of the CC – PAIH01 for any signs of wear, corrosion, or loose connections. Dust accumulation can affect the module’s performance, so clean it periodically using a soft brush or compressed air. Monitor the input signals regularly to ensure they are within the expected range. In case of abnormal signals, refer to the troubleshooting guide in the product manual. If a component needs replacement, use only genuine Honeywell spare parts to maintain the module’s performance and reliability. Also, keep the control cabinet well – ventilated to help with heat dissipation.
