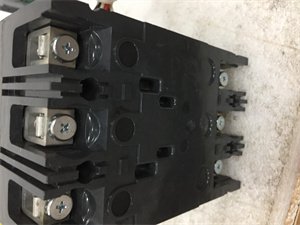

General Electric TED134050WL Molded Case Circuit Breaker

The GE TED134050WL is a 3 – pole thermal magnetic molded case circuit breaker from General Electric, a globally recognized leader in industrial electrical solutions. This breaker is part of the TED series, designed to meet the demanding requirements of industrial and commercial electrical systems. In the automation ecosystem, it serves as a crucial safeguard, providing reliable over – current and short – circuit protection. With a current rating of 50A, it can effectively handle the electrical loads of various equipment within the system. Its thermal magnetic operation combines heat – based overload protection and magnetic – based short – circuit protection, ensuring comprehensive security for connected circuits. Whether installed in a large – scale manufacturing plant or a small – to – medium – sized industrial facility, the GE TED134050WL plays a vital role in maintaining the integrity and stable operation of the electrical infrastructure, protecting valuable equipment and preventing potential electrical disasters.

Technical Specifications

Reliable Over – current Protection: The GE TED134050WL offers robust over – current protection through its thermal magnetic design. The thermal element responds to gradual over – loads, heating up and tripping the breaker when the current exceeds the rated value for an extended period. The magnetic element, on the other hand, quickly detects short – circuits and trips the breaker within milliseconds, safeguarding equipment from severe damage.

High Interrupting Capacity: With an interrupting rating of 18kA at 480VAC and 10kA at 250VDC, this circuit breaker can handle large fault currents. It can safely interrupt the flow of electricity during short – circuit events, preventing arcing and further electrical hazards.

Flexible Connection Options: Its feed – thru connection type simplifies installation and wiring. The line and load lug terminals can accommodate a range of wire sizes from 14 to 3 AWG, providing flexibility in electrical system design. The bolt – on mounting type ensures a secure and stable installation.

Industry – Approved Standards: Complying with UL E11592, CSA LR57114, and having a HACR rating, the GE TED134050WL meets strict safety and performance standards. This makes it suitable for use in a wide variety of industrial and commercial applications where reliability and safety are of utmost importance.

Manufacturing Industry: In manufacturing plants, the GE TED134050WL is used to protect electrical circuits powering machinery such as conveyor belts, motors, and automated production equipment. It ensures that these critical components are safeguarded against over – current and short – circuit events, minimizing production downtime.

Commercial Buildings: For commercial buildings, it can be installed in electrical distribution panels. It protects circuits supplying power to lighting systems, HVAC units, and other electrical appliances, ensuring the smooth operation of the building’s electrical infrastructure.

Power Generation and Distribution: In power generation facilities and substations, the GE TED134050WL plays a role in protecting transformers, switchgear, and other electrical equipment. It helps maintain the stability of the power grid by preventing electrical faults from escalating.

Food and Beverage Industry: Given its reliability and compliance with safety standards, it is used in food and beverage processing plants to protect the electrical systems of equipment like mixers, packaging machines, and refrigeration units, ensuring continuous production while meeting strict hygiene and safety requirements.

Installation and Maintenance

Pre – installation preparation: Before installing the GE TED134050WL, ensure that the power supply to the circuit is turned off to prevent electrical shock. Check the compatibility of the breaker with the electrical system, especially in terms of voltage and current ratings. Verify that the mounting surface is flat and suitable for the bolt – on installation. Inspect the wire sizes to be connected to ensure they fall within the recommended 14 – 3 AWG range.

Maintenance recommendations: Regularly inspect the GE TED134050WL for any signs of physical damage, such as cracks in the molded case or loose connections. Check the operating temperature of the breaker, as excessive heat can indicate a problem. If the breaker trips frequently, investigate the cause, which could be due to over – loading, short – circuits, or a malfunctioning device in the circuit. Periodically clean the breaker to remove dust and debris that could affect its performance.

Product Guarantee

General Electric stands firmly behind the quality of the GE TED134050WL. The product is rigorously tested to meet high – quality standards before leaving the factory. GE offers a comprehensive quality assurance program, which includes a standard warranty period. In case of any manufacturing defects during the warranty period, GE will provide replacement or repair services free of charge. Their team of technical experts is also available to offer support for installation, operation, and troubleshooting. This commitment reflects GE’s long – standing reputation for reliability and customer satisfaction, ensuring that customers can trust the GE TED134050WL for their electrical protection needs.
