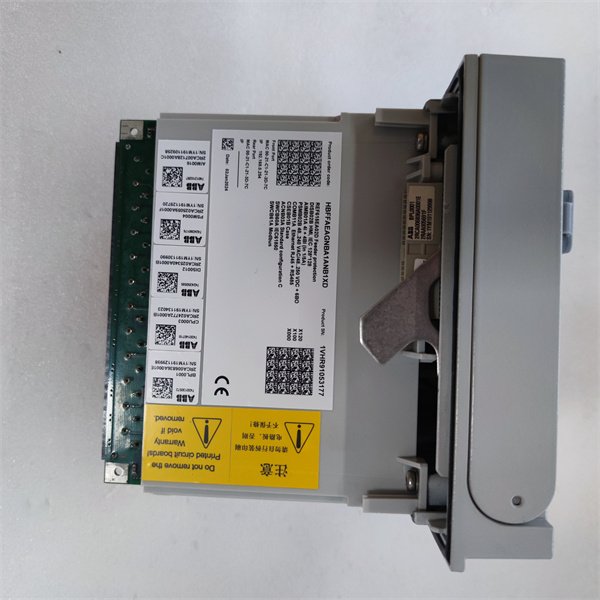

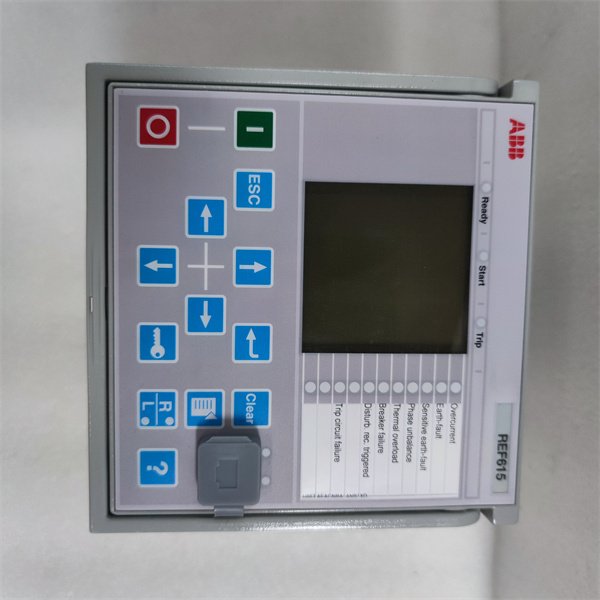

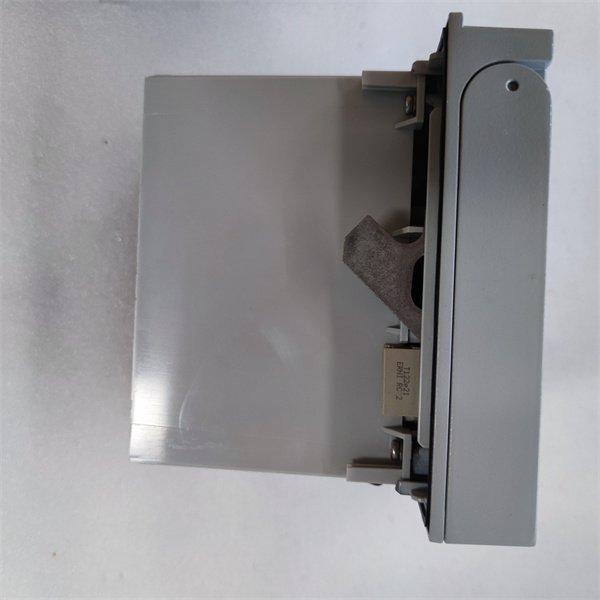

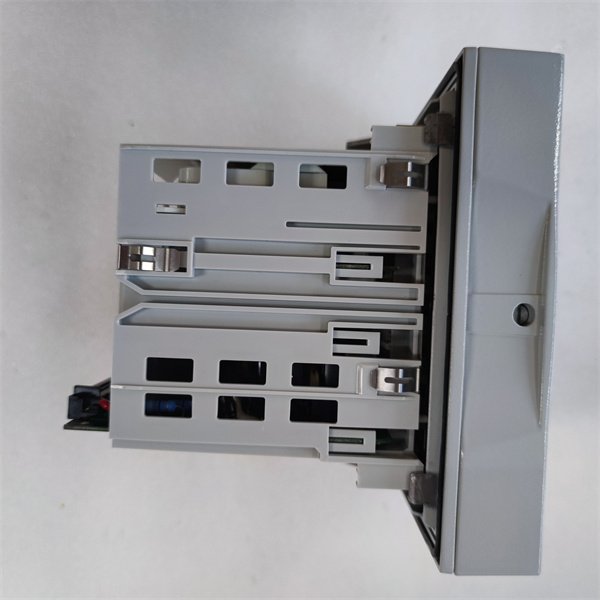

ABB REF615 HBFFAEAGNBA1ANB1XD Medium-Voltage Protection & Control Relay

The ABB REF615 HBFFAEAGNBA1ANB1XD is a cutting-edge medium-voltage protection and control relay designed for advanced power distribution systems. As a flagship model in ABB’s Relion® series, this relay combines comprehensive protection algorithms, intelligent grid integration, and rugged hardware to safeguard feeders, transformers, and generators in utility, industrial, and renewable energy applications. The ABB REF615 HBFFAEAGNBA1ANB1XD is engineered to address complex fault scenarios while enabling real-time monitoring and predictive maintenance, making it a cornerstone for smart grid modernization and digital substation initiatives.

Featuring a dual-core processor and advanced signal processing, the REF615 HBFFAEAGNBA1ANB1XD supports a wide range of protection functions, including adaptive overcurrent, directional earth fault, and synchronization control. Its modular design allows seamless integration with ABB’s 800xA Automation System and third-party SCADA platforms via IEC 61850, enabling remote configuration and diagnostics. Built to withstand harsh environments (-40°C to +70°C, IP54 protection), this relay ensures reliable operation in challenging settings, from offshore platforms to high-EMI manufacturing floors, while meeting global standards like IEC 61850 and IEEE C37.112.

Technical Specifications

Main Features and Advantages

Advanced protection suite: The REF615 HBFFAEAGNBA1ANB1XD incorporates state-of-the-art protection algorithms, such as dynamic load encroachment monitoring, which reduces false trips by 40% in fluctuating industrial loads. In a paper mill’s 20 kV substation, its arc flash protection detected a fault within 2 ms, preventing equipment damage and operator injury while complying with NFPA 70E standards.

Smart grid readiness: With native IEC 61850-90-5 support, the relay enables seamless integration into digital substations, supporting GOOSE messaging for millisecond-level status updates. A utility company used this feature to reduce fault location time by 55%, enabling faster restoration in a 33 kV urban grid. The relay’s built-in web server also allows remote access to phasor measurement unit (PMU) data, supporting grid stability analysis in renewable energy microgrids.

Rugged durability and ease of use: The relay’s hot-swappable design and conformal-coated PCBs ensure reliable operation in high-humidity and corrosive environments. A mining operation in Australia deployed the REF615 HBFFAEAGNBA1ANB1XD in its underground switchgear, where its IP54 rating and vibration resistance (2g sinusoidal) reduced maintenance visits by 30%. The intuitive front-panel HMI and Relion® Manager software simplify commissioning, with auto-calibration features cutting setup time by 50%.

Application Field

Power transmission and distribution: The REF615 HBFFAEAGNBA1ANB1XD is critical for protecting feeders in smart grids, enabling auto-reclosing functionality to restore power within seconds after transient faults. A major European TSO integrated the relay into its 40.5 kV subtransmission network, achieving a 25% reduction in average outage duration.

Industrial and critical infrastructure: In data centers and healthcare facilities, the relay’s synchronization control ensures seamless transfer between utility and backup power sources. A Tier IV data center used its real-time voltage/frequency monitoring to maintain 99.999% uptime during grid fluctuations, preventing $1M+ losses from server downtime.

Renewable energy integration: For wind and solar farms, the REF615 HBFFAEAGNBA1ANB1XD manages power flow from inverters to the grid, supporting anti-islanding protection and reactive power control. A 100 MW solar plant leveraged its adaptive overcurrent protection to mitigate faults caused by voltage sags during cloud transients, ensuring continuous energy export.

Installation and Maintenance

Pre-installation preparation: Mount the REF615 HBFFAEAGNBA1ANB1XD on a grounded DIN rail, ensuring 50 mm clearance for heat dissipation. Verify CT/VT ratios and connect control cables using shielded twisted-pair wiring to minimize EMI. Use Relion® Manager to configure IEC 61850 datasets and GOOSE connections, aligning with substation automation requirements.

Maintenance recommendations: Perform biannual inspections of terminal connections (torque to 2–4 Nm) and clean vents in dusty environments. Leverage the relay’s built-in self-diagnostics to test protection functions and firmware updates remotely. ABB’s predictive maintenance service monitors relay health via cloud-based analytics, identifying potential issues like contact wear before failures occur, reducing unplanned downtime by 40%.

Product Guarantee

ABB guarantees the REF615 HBFFAEAGNBA1ANB1XD to meet performance specifications for 60 months from delivery, with an optional 10-year extended warranty for utility-scale projects. The relay undergoes rigorous testing for EMC compliance (EN 61000-6-2), thermal cycling, and long-term reliability, ensuring adherence to IEC 61508 SIL 2 standards when used in safety-critical applications.
