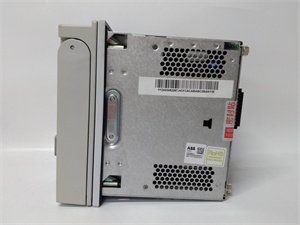

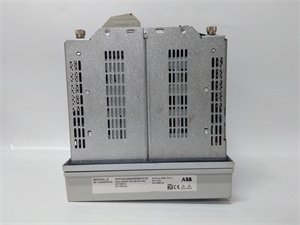

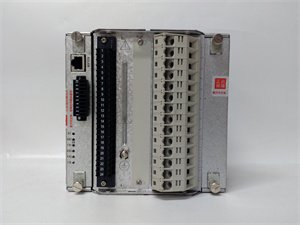

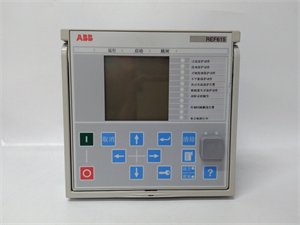

ABB REF615C-D HCFCACABANB2BAN1XD Feeder Protection and Control Relay

The REF615C-D HCFCACABANB2BAN1XD is a high-performance feeder protection and control relay developed by ABB, designed to safeguard and optimize power distribution systems in industrial and utility applications. As part of ABB’s Relion® product family, this relay combines advanced protection functions, modular design, and seamless communication capabilities to ensure reliable operation in complex electrical networks.

Product Overview

The REF615C-D HCFCACABANB2BAN1XD serves as a critical component for protecting overhead lines, cables, and feeders in radial, looped, or meshed distribution networks. It integrates protection, control, measurement, and monitoring functions into a single compact unit, making it ideal for applications requiring high precision and rapid response. Key features include:

• Comprehensive Protection: Supports overcurrent, short-circuit, earth fault, undervoltage, overvoltage, and frequency-based protection.
• Intelligent Control: Enables remote or local control of switchgear and circuit breakers with configurable logic.
• Real-Time Monitoring: Measures voltage, current, power, and energy parameters with ±0.2% accuracy.
• Flexible Communication: Supports IEC 61850, Modbus TCP/RTU, DNP3, and RS-485 protocols for seamless integration with substation automation systems.

Technical Parameters

Advantages and Features

• High Reliability: Built with robust hardware and redundant communication protocols (HSR/PRP) to ensure continuous operation in harsh environments.
• Fast Fault Response: Trip times as low as 5 ms for critical faults, minimizing downtime and equipment damage.
• Modular Design: Easy to expand with optional I/O modules and arc flash detection channels.
• Energy Efficiency: Reduces power losses through precise load management and harmonic filtering.
• User-Friendly Interface: Large LCD display with customizable single-line diagrams for intuitive configuration and monitoring.

Case Study: In a European manufacturing plant, the REF615C-D HCFCACABANB2BAN1XD reduced fault clearing time by 40% compared to legacy systems, resulting in annual savings of €120,000 in production downtime.

Application Areas and Use Cases

• Power Distribution: Protects feeders in substations and industrial plants.
• Renewable Energy: Integrates with solar/wind farms to manage grid stability.
• Process Industries: Ensures uninterrupted operation in chemical, oil, and gas facilities.
• Transportation: Used in railway traction systems for efficient power management.

Example Application: A utility company deployed REF615C-D HCFCACABANB2BAN1XD in a smart grid project to monitor and protect a 110 kV distribution network. The relay’s fault-locating feature reduced restoration time by 60%, enhancing grid resilience.

Competitor Comparison

The REF615C-D HCFCACABANB2BAN1XD outperforms comparable products in:

• Communication Flexibility: Supports more protocols (e.g., IEC 61850-9-2 LE) than most competitors.
• Modularity: Offers plug-and-play expansion without system reconfiguration.
• Energy Efficiency: Low power consumption (≤10 VA) compared to industry averages of 8–10 VA.

Selection Recommendations

When choosing the REF615C-D HCFCACABANB2BAN1XD, consider:

• Voltage/Current Requirements: Ensure compatibility with your system’s nominal values.
• Communication Needs: Select models with the required protocols (e.g., IEC 61850 for substation automation).
• Environmental Conditions: Verify temperature/humidity ratings for your installation environment.
• Budget: Balance advanced features with cost, noting that modularity reduces long-term upgrade expenses.

Precautions

• Installation: Follow ABB’s guidelines for proper grounding and wiring to prevent electromagnetic interference.
• Maintenance: Regularly update firmware and perform functional tests to ensure optimal performance.
• Safety: Disconnect power before servicing and use protective gear during installation.
