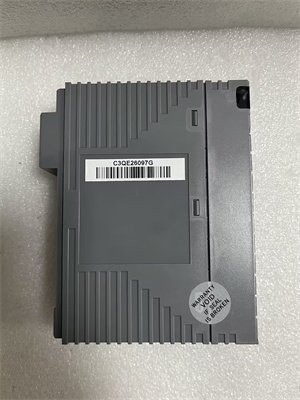

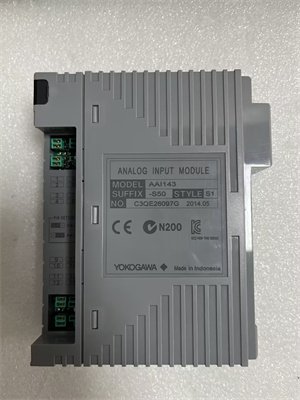

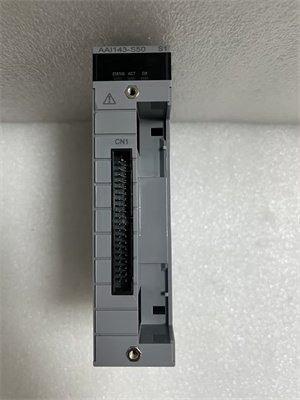

Yokogawa AAI143-S50 analog input module

The Yokogawa AAI143-S50is a high-performance analog input module designed for industrial automation systems, particularly distributed control systems (DCS) such as the Centum VP and CS 3000. It serves as a critical component for converting analog signals from field devices (e.g., sensors, transmitters) into digital data for monitoring and control. With 16 isolated channels supporting 4–20 mA current signals, the module ensures reliable data acquisition in noisy industrial environments. Its robust design, high precision, and compatibility with 2-wire/4-wire transmitters make it ideal for applications requiring stable and accurate signal processing. The AAI143-S50 is widely used in industries such as manufacturing, energy, and chemical processing, where continuous and reliable input signal management is essential.

Key Technical Parameters

Advantages and Features

• High Reliability & Isolation: Channel-to-channel and system isolation (1500 V AC) minimizes noise interference, ensuring accurate signal transmission in harsh industrial settings.
• Precision Performance: ±16 µA accuracy and 16-bit A/D conversion enable precise monitoring of critical processes (e.g., temperature, pressure, flow).
• Flexible Configuration: Supports dual redundancy for fault tolerance and adapts to 2-wire/4-wire transmitters via channel-specific settings.
• Modular Design: Easy installation and replacement with optional accessories (e.g., pressure clamp terminals, cables) for simplified maintenance.
• Wide Compatibility: Works with Yokogawa’s DCS systems (Centum VP/CS 3000) and integrates with HART-enabled devices for advanced diagnostics.

Application Areas and Use Cases

• Industries: Manufacturing, oil & gas, power generation, chemical processing, and water treatment.
• Scenarios: Monitoring analog signals from transmitters (e.g., flow meters, pressure sensors) in DCS/FCS systems.
• Case Study: A chemical plant in China upgraded its DCS with the AAI143-S50 to manage 16 temperature sensors. The module’s isolation and precision reduced signal errors by 95%, improving process stability and reducing downtime.

Competitor Comparison

Compared to similar analog input modules, the AAI143-S50 stands out with:

• Higher Channel Density: 16 channels (vs. 8–12 channels in many alternatives).
• Superior Isolation: 1500 V AC isolation (exceeding industry standards for noise immunity).
• Redundancy Flexibility: Native support for dual redundancy without additional hardware.
• Wide Voltage Range: Transmitter power supply (19–25.5 V DC) accommodates older and newer field devices.

Installation and Maintenance Notes

• Wiring: Use shielded cables and separate signal/ power wiring to minimize interference.

• Redundancy: Follow Yokogawa’s dual redundancy guidelines for correct pairing and configuration.

• Environment: Avoid temperatures >60°C and ensure proper ventilation.

• Calibration: Periodically verify accuracy using HART tools (if equipped) or factory procedures.

• Spare Parts: Stock compatible accessories (e.g., A4S00 terminals, KS1 cables) for quick replacements.
