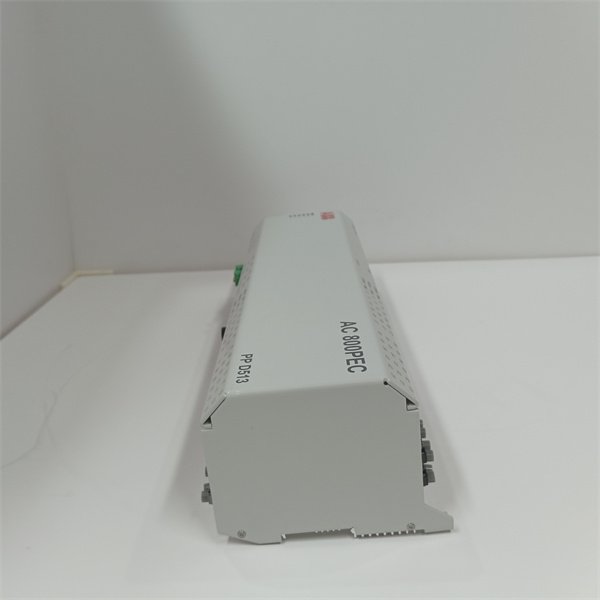

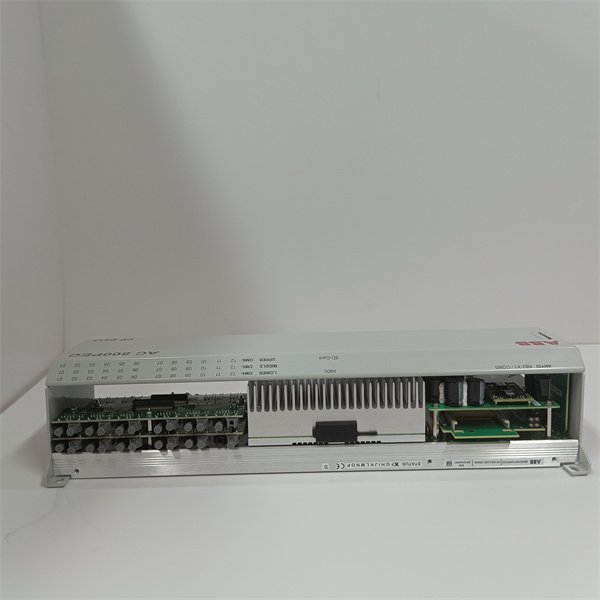

ABB 3BHE039724R0C3D PPD513AOC-100440 Industrial power distribution module

The 3BHE039724R0C3D PPD513AOC-100440 is a versatile industrial power distribution module from ABB, designed to serve as a centralized power hub for automation systems. As a critical component in ABB’s power management portfolio, this module converts and distributes 3-phase 400 V AC input into regulated 24 V DC and unregulated 230 V AC outputs, powering a wide range of field devices such as sensors, actuators, PLCs, and small motors.

What sets the 3BHE039724R0C3D PPD513AOC-100440 apart is its hybrid output design—combining 8 channels of 24 V DC (essential for low-voltage electronics) with 4 channels of 230 V AC (for higher-power devices). This integration eliminates the need for separate power supplies, simplifying cabinet design and reducing wiring complexity. Equipped with Modbus TCP/IP, the module enables remote monitoring of voltage, current, and fault status, making it a smart choice for modern industrial facilities seeking centralized power management and diagnostics.

Detailed parameter table

Core advantages and technical highlights

Hybrid power distribution: The 3BHE039724R0C3D PPD513AOC-100440 uniquely combines 24 V DC and 230 V AC outputs in a single module, supporting diverse device types without requiring multiple power supplies. For example, in a packaging line, it can power 24 V DC proximity sensors via one channel while supplying 230 V AC to a small conveyor motor via another, streamlining cabinet layout and reducing installation costs.

Comprehensive protection mechanisms: Each output channel of the 3BHE039724R0C3D PPD513AOC-100440 features independent overcurrent and short-circuit protection, ensuring a fault in one device (e.g., a shorted sensor) does not disrupt power to others. The module also includes global overvoltage protection, clamping voltage spikes from the mains supply to prevent damage to sensitive electronics. This layered protection is critical in harsh environments like steel mills, where electrical noise and voltage fluctuations are common.

Remote monitoring and control: With Modbus TCP/IP connectivity, the 3BHE039724R0C3D PPD513AOC-100440 allows operators to monitor real-time current draw per channel, track voltage stability, and receive fault alerts via the control system HMI. In a water treatment plant, this enables predictive maintenance—for instance, identifying a gradual increase in current on a valve actuator channel, which may indicate impending motor failure before it causes downtime.

High efficiency and thermal management: Boasting ≥90% efficiency at full load, the 3BHE039724R0C3D PPD513AOC-100440 minimizes energy waste and heat generation. Its robust thermal design includes a heatsink and temperature-controlled fan, ensuring stable operation even at 60°C ambient temperature. This makes it suitable for enclosed cabinets in warm industrial environments, such as food processing facilities with high ambient temperatures.

Typical application scenarios

In automotive assembly plants, the 3BHE039724R0C3D PPD513AOC-100440 serves as the primary power source for a robotic workcell. Its 24 V DC channels power vision sensors, gripper solenoids, and the robot controller, while 230 V AC channels supply small cooling fans and light towers. Modbus connectivity allows the plant’s MES system to monitor power usage, identifying energy-saving opportunities by tracking peak loads during production shifts. The module’s overload protection prevents unplanned shutdowns if a sensor shorts during a critical welding cycle.

In pharmaceutical manufacturing, the 3BHE039724R0C3D PPD513AOC-100440 powers cleanroom equipment, including 24 V DC pressure sensors, 230 V AC air handlers, and PLCs controlling filling machines. Its stable 24 V DC output ensures precise sensor readings, critical for maintaining strict process parameters, while independent channel protection prevents a fault in a non-essential device (e.g., a status light) from affecting life-sustaining equipment. Remote diagnostics via Modbus reduce the need for physical access to cleanrooms, minimizing contamination risks.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the 3BHE039724R0C3D PPD513AOC-100440, ensure the DIN rail is rated for the module’s weight (approx. 3 kg) and mounted in a cabinet with ambient temperature between -10°C and 60°C. Verify the incoming 400 V AC supply is properly fused (10 A) and phase-sequenced. Use 2.5 mm² cables for input connections and 0.75-1.5 mm² cables for outputs, with appropriate wire markers. Required tools include a torque screwdriver (1.5-2.0 Nm), phase tester, and multimeter. Ensure the cabinet has adequate ventilation, as the module dissipates up to 50 W of heat.

Maintenance suggestions: Inspect the 3BHE039724R0C3D PPD513AOC-100440 monthly for dust accumulation on the heatsink, cleaning with compressed air if necessary. Check output voltages quarterly using a calibrated multimeter—24 V DC should remain within ±2% of nominal, and 230 V AC within ±5%. Monitor Modbus data for unusual current spikes, which may indicate failing devices. If a channel trips due to overload, reset it via the HMI or physical button after resolving the fault. Replace the module if outputs become unstable or protection mechanisms repeatedly activate without cause, using only ABB-certified spares.
